Digitus CAT 6A compact keystone module shielded tool-free mounting 12 pcs

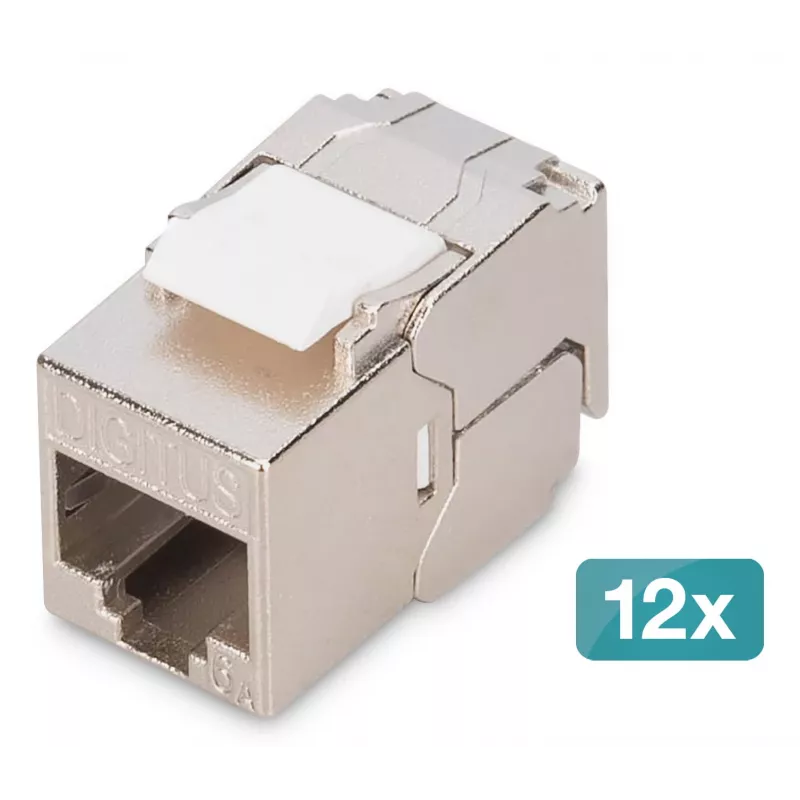

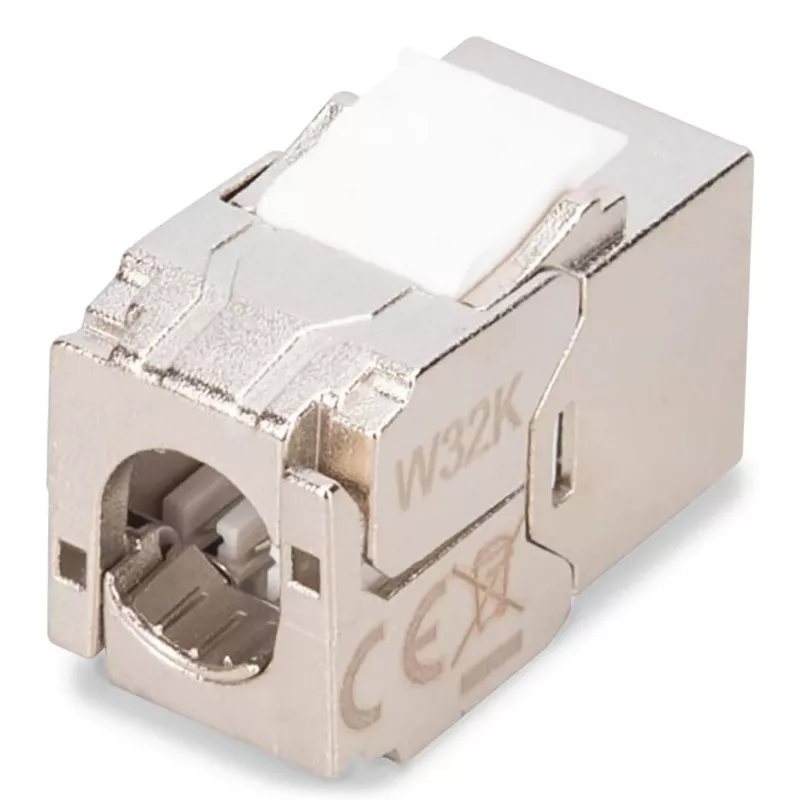

The DIGITUS CAT 6A compact keystone module (DN-93615-S-12) is a shielded, tool-free RJ45 insert designed for fast field assembly and installation in distribution panels and modular junction boxes. Supplied in a pack of 12, each module supports Category 6A performance up to 500 MHz and 10GBase-T links while providing 360° shield contacting and dust protection for the RJ45 socket.

Advantages

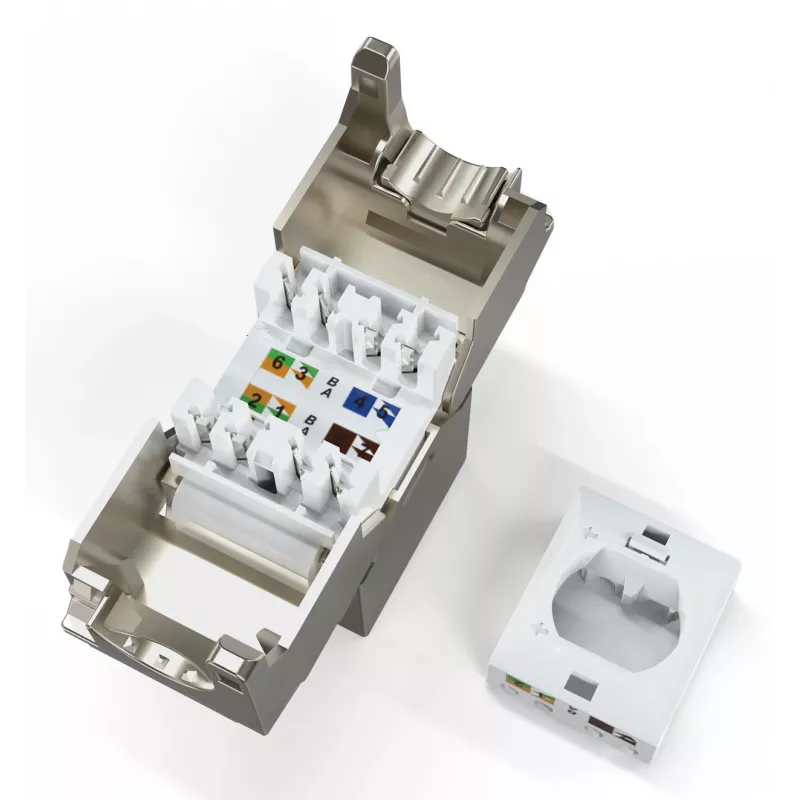

The module offers tool-free cable termination via LSA insulation displacement connectors, color-coded for EIA/TIA 568 A & B, simplifying on-site installations. Its zinc die-cast, nickel-plated housing and phosphor bronze contacts with nickel and 0.5 μ gold plating ensure reliable electrical connection and mechanical durability. The compact design allows series mounting in 19" 1U panels and fits into design-compatible junction boxes.

Suitable for

• Ethernet network installations up to 10GBase-T
• Distribution panels and patch panels (483 mm / 19" 1U)
• Modular junction boxes and on-site field assembly
• PoE deployments compliant with IEEE 802.3 af/at/bt (including 4PPoE in permanent link)

Key specifications

• Category: Cat 6A (10GBase-T), 500 MHz
• Standards: ISO/IEC 11801 3rd Edition, EN 50173-1
• PoE: IEEE 802.3 af/at/bt supported (PoE, PoE+, 4PPoE in permanent link)
• Connector: RJ45 female, 8P8C
• Cable termination: LSA insulation displacement connectors, color-coded EIA/TIA 568 A & B
• Shielding: 360° shield contacting
• Housing material: Zinc die-cast, nickel-plated
• Contact material & plating: Phosphor bronze; nickel and 0.5 μ gold-plated
• Insertion force: Max. 30 N (IEC 60603-7-51)
• Holding force: 7.7 kg between socket and plug
• Operating temperature: -20 °C to +70 °C
• Mating cycles: ≥ 750
• Conductor compatibility: AWG 26/7 to 22/1, stranded and solid; tested with AWG 22/1
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Quantity: 12 pieces

How to use

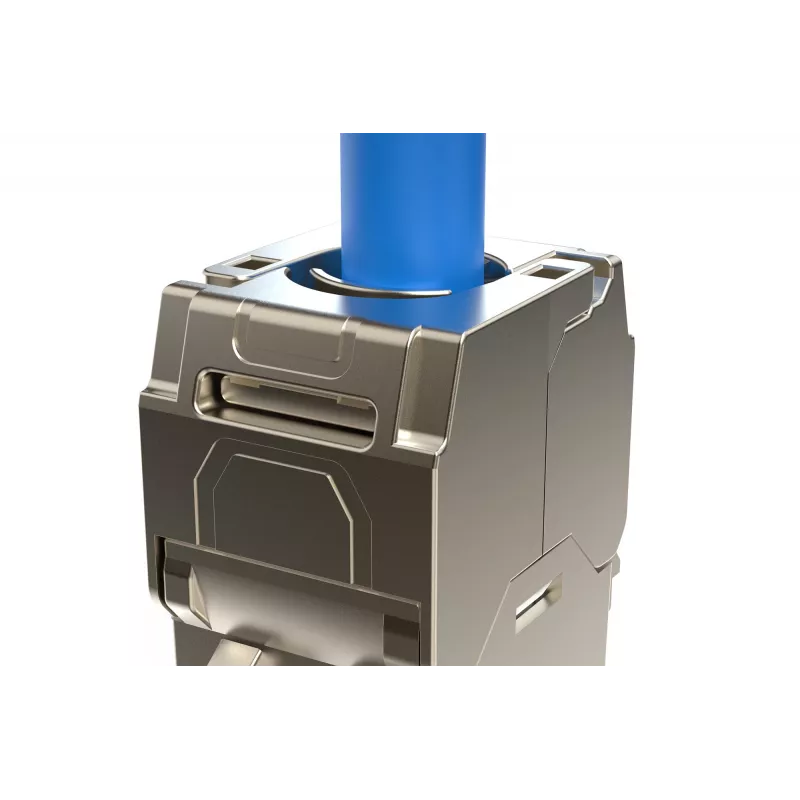

Prepare the installation cable according to the selected EIA/TIA wiring scheme (568A or 568B). Insert conductors into the color-coded LSA insulation displacement connectors and press in to terminate without tools. Mount the module into the panel or junction box; secure the cable with the integrated strain relief using cable ties. Use the dust protection cap on unused RJ45 sockets to protect contacts.

Recommendations

For best performance, use solid AWG 22/1 installation cable recommended for Cat6A and follow EIA/TIA wiring standards. Verify PoE power requirements against equipment specifications and avoid exceeding the module’s mechanical insertion and holding limits.
