Digitus 4K HDMI AOC Armored Connecting Cable 15m 14.4 Gbit/s

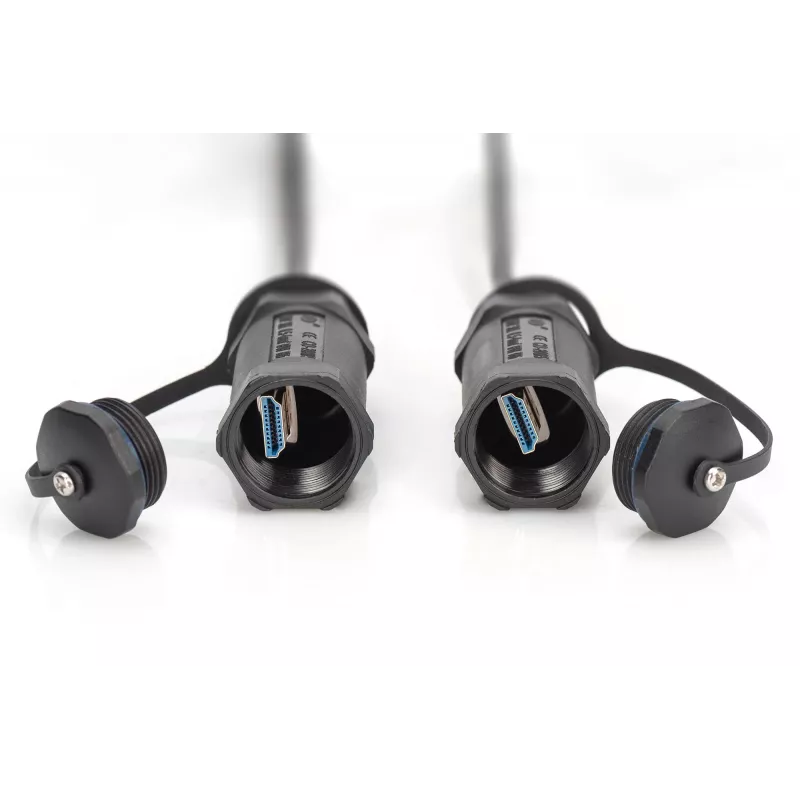

The Digitus 4K HDMI AOC Armored Connecting Cable 15m (AK-330130-150-S) is an active hybrid HDMI cable that combines copper conductors and fiber optic cores to transmit uncompressed video and audio over long distances. With a bandwidth of up to 14.4 Gbit/s it supports UHD resolutions up to 4K at 60 Hz, HDMI 2.0, HDCP 2.2 and HDR. The cable is designed for durability: steel and aramid fibre reinforcement make it crush- and puncture-resistant, the overall outer diameter is compact (approx. 5.2 mm) and the HDMI Type A plugs have protective screw-on plastic sleeves with IP68 rating when closed.

Advantages

The hybrid AOC design enables high bandwidth over long runs while preventing electromagnetic interference and keeping cable diameter and weight low. Reinforced steel and aramid fibre construction provides mechanical protection against bending, crushing and piercing. Gold-plated HDMI Type A connectors and active electronics ensure full HDMI signal spectrum support, low latency transfer and Plug & Play operation. Protective screw-on sleeves keep connectors sealed and protected when not in use.

Suitable for

• Professional AV installations at trade shows and events
• Long-distance connections between source devices and displays (up to 15 m)
• Home theatre and multimedia setups requiring 4K/60Hz
• Environments where robust, crush-resistant cabling is required

Key specifications

• Length: 15 m
• Bandwidth: up to 14.4 Gbit/s
• Supported resolution: up to 4K (4096 x 2560) @ 60 Hz
• Connectors: HDMI Type A – HDMI Type A (gold-plated contacts)
• Standards supported: HDMI 2.0, HDCP 2.2, HDR, ARC
• Audio formats: DTS-HD Master Audio, Dolby TrueHD, up to 32-channel audio
• Construction: hybrid copper + fiber optic cable, steel and aramid fibre reinforcement
• Outer diameter (approx.): 5.2 mm
• Ingress protection (connectors when closed): IP68

How to use

Connect one HDMI Type A plug to the source device (e.g., Blu-ray player, media player, PC) and the other HDMI Type A plug to the display or AV receiver. The cable is active and requires no external power; the integrated electronics handle signal conversion and equalization automatically. Ensure the protective screw-on sleeves are removed before plugging in and reattach them when the cable is not in use to maintain IP68 protection. The cable supports Plug & Play; once connected, verify display resolution and audio settings on the source device if necessary.

Recommendations

For reliable long-term operation, avoid tight repeated bends near the connectors and secure the cable to prevent heavy compression. Use the cable where mechanical robustness and long-distance uncompressed 4K/60Hz transmission are required, such as events, exhibitions or permanent AV installations.
