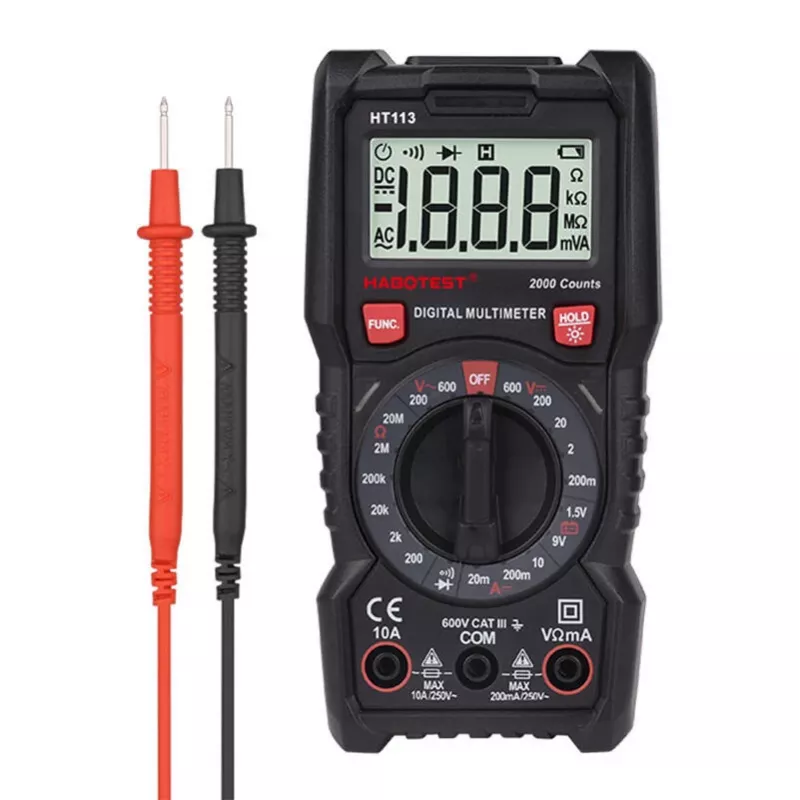

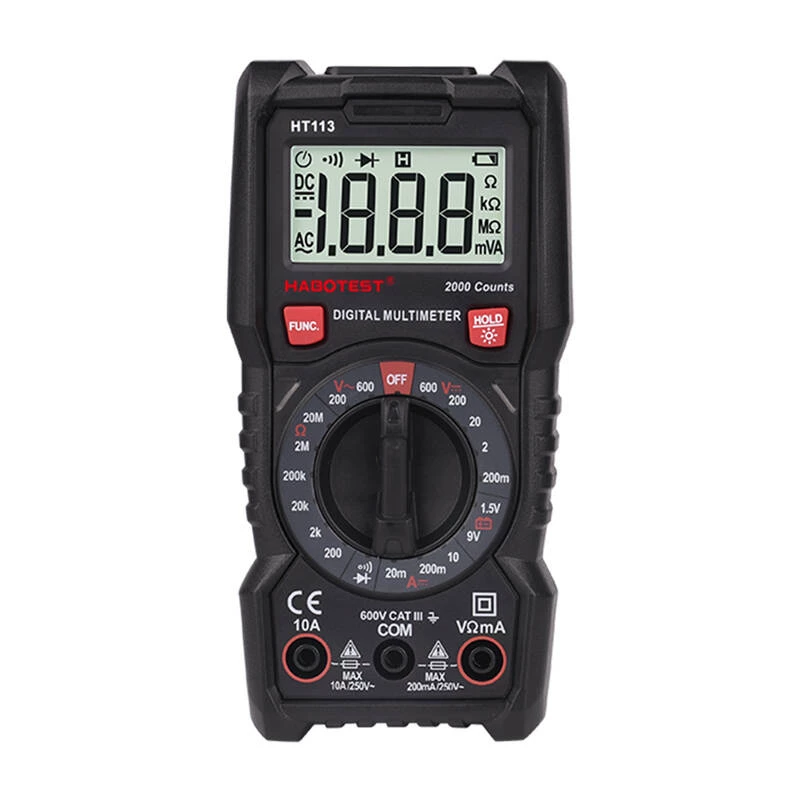

Digital multimeter Habotest HT113 — AC/DC voltage and current measurement

Habotest HT113 digital universal multimeter is a compact, lightweight measuring instrument for technicians and DIY users. It measures DC and AC voltage, DC current, resistance, and supports diode testing and continuity checks. The device has a soft, wear‑resistant housing, a practical fold‑out stand for table placement, an easy‑read display and function buttons for convenient operation.

Advantages

The Habotest HT113 offers multiple measurement functions in a portable design weighing approximately 220 g. Its soft, durable casing resists wear and impact while providing a comfortable grip. The built‑in stand allows hands‑free reading and the clear display plus dedicated buttons make switching functions straightforward. Data hold and low battery indicator improve daily usability.

Key specifications

• Producer: Habotest
• Model: HT113 (variants HT113B, HT113C)
• DC voltage ranges: HT113 — 200 mV / 2 V / 20 V / 200 V / 600 V, accuracy ±(0.5%+3)
• AC voltage ranges: HT113 — 200 V / 600 V, accuracy ±(1.0%+3)
• DC current ranges: HT113 — 20 mA / 200 mA (±(1.2%+3)); 10 A (±(2.0%+3))
• Resistance ranges: HT113 — 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ, accuracy ±(1.0%+3)
• Diode test: Yes; Continuity: Yes
• Counts: HT113 — 2000 (HT113B 4000, HT113C 6000)
• Data hold: Yes; True RMS: HT113 — No (HT113B/C — Yes)
• NCV: HT113 — No (HT113B/C — Yes)
• Live test: HT113C — Yes
• Bandwidth: HT113 — 40–400 Hz (HT113B/C — 1 kHz)
• Power supply: 2 × AAA 1.5 V
• Safety: EN61010‑2‑030, EN61010‑2‑033, CAT III 600 V
• Weight: approx. 220 g
• Dimensions: 151 × 75 × 48 mm

How to use

Insert two AAA 1.5 V batteries and connect the test leads to the correct terminals. Select the required measurement function with the rotary switch or function buttons, place probes on the circuit under test and read the value on the display. For diode and continuity checks use the dedicated modes; observe polarity for DC measurements. When measuring current, ensure the correct current range is selected and the lead is placed in the appropriate current input. Use the stand for hands‑free reading and enable data hold to freeze results. Turn the device off after use to save battery; the automatic power‑off feature will also switch the unit off after inactivity.

Recommendations

Use appropriate personal protective equipment and follow local safety regulations when working with live circuits. Verify correct range and probe connections before measurement, and avoid measuring voltages or currents beyond the specified CAT III 600 V rating.
