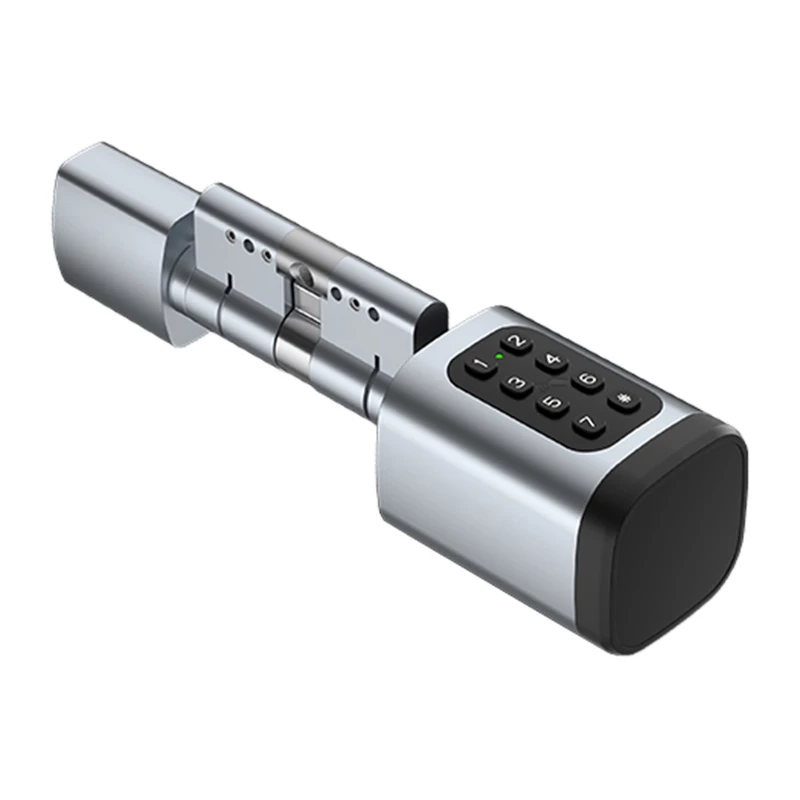

Digital lock cylinder Avatto SDL-V1-S100, 100 mm silver

Avatto SDL-V1-S100 100 mm digital lock cylinder (Silver)

The Avatto SDL-V1-S100 cylinder is a modern door security solution that combines convenience of use with advanced features. This 100 mm long model fits standard European locks (EURO profiles) and is designed for doors 40-50 mm thick. Thanks to its simple installation without the need to drill or replace the entire lock, it will work well both at home and in the office.

Compatibility and simple installation

The cylinder is compatible with EURO-type locks, which means you don't need to replace the entire door cassette. Installation comes down to replacing the old cylinder and tightening the new one - all you need is a hex key and a few minutes. The design allows you to adjust the length by adjusting the internal knob.

5 methods of unlocking

The Avatto lock offers five ways to open the door: fingerprint, PIN code, proximity card, mechanical key and the TUYA smartphone app. This allows you to choose the most convenient option or provide access to different household members.

Features and materials

The device is made of durable 304 stainless steel, which translates into robustness and resistance to damage. The lock has a fingerprint reader and keypad, which are integrated into a single rotating head - simply turn it 90 degrees to switch between unlocking methods. If needed, emergency charging is possible via a USB port or by using the included key.

Low power consumption

The lock is powered by three AAA (1.5V) batteries, ensuring long operation without frequent replacement. The system is designed to consume as little energy as possible while offering all the features of smart access.

Included

• lock cylinder
• proximity card x2
• key x2
• installation kit
• tools
• instruction manual
• reset card

How to use

Replace the existing EURO-profile cylinder with the Avatto SDL-V1-S100 by loosening the fixing screw, removing the old cylinder and installing the new one; length can be adjusted via the internal knob as needed. Register fingerprints, set PIN codes or pair proximity cards following the supplied manual, or connect the cylinder to the TUYA app for remote management. Power is provided by three AAA batteries; if batteries are depleted, use the emergency USB charging option to temporarily restore function.

Recommendations

Prior to installation, confirm your door’s thickness and EURO-profile compatibility. Keep the supplied mechanical keys and reset card in a secure location. For reliable operation, use quality AAA batteries and follow the instruction manual for fingerprint registration and app pairing.
