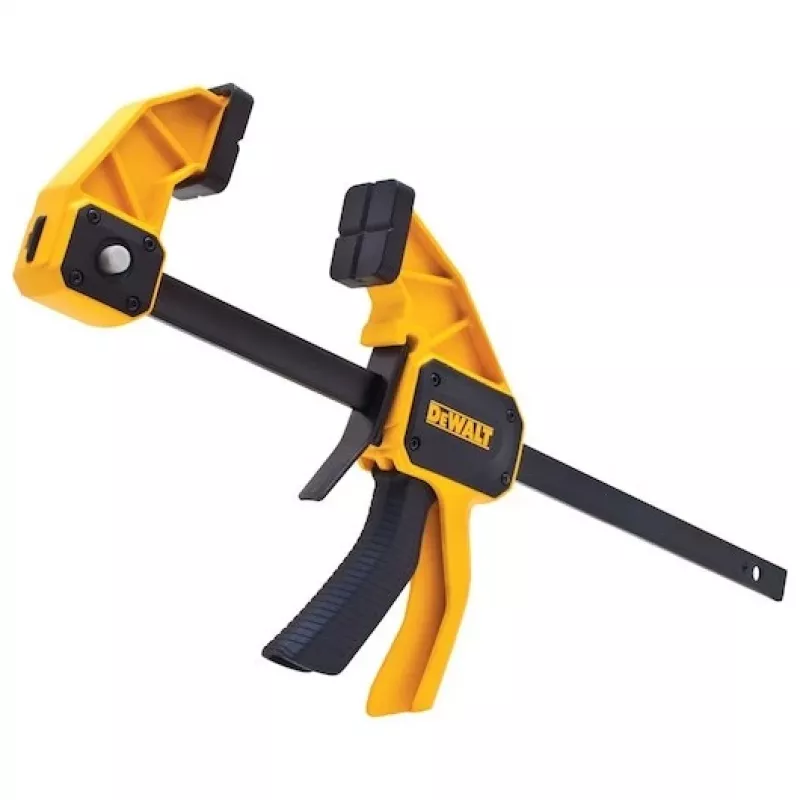

DEWALT One-Handed Clamp Large 300mm 12 inch 135kg Clamping Force DWHT0-83193

The DEWALT DWHT0-83193 One-Handed Clamp is a versatile and robust clamping tool designed for professional and DIY use. With a large 300mm (12 inch) clamping capacity and a powerful 135kg clamping force, it securely holds workpieces for gluing, assembly, and repair tasks. The one-hand trigger action allows for quick and easy operation, while the quick-change jaw converts the clamp into a spreader for added functionality.

Advantages

This clamp features a heat-treated steel bar for durability and reinforced nylon jaws with non-marring, removable pads to protect delicate surfaces. The ergonomic bi-material handle provides comfort during prolonged use. Its medium-duty rating makes it suitable for a wide range of applications.

Suitable for

• Woodworking and carpentry
• Furniture assembly and repair
• General workshop clamping tasks
• Spreading applications with jaw conversion

Key specifications

• Clamping Capacity: 305 mm (12 inch)
• Clamping Force: 135 kg (298 lbs)
• Throat Depth: 81 mm (3.2 inch)
• Operation Type: One-Hand Trigger Action
• Functionality: Clamping and Spreading
• Bar Material: Heat-Treated Steel
• Jaw Material: Reinforced Nylon
• Pad Material: Non-Marring, Removable
• Handle Type: Ergonomic Bi-Material
• Quick-Change Jaw: Yes, for spreader conversion
• Release Mechanism: Quick-Release Trigger
• Bar Width: 19 mm (0.75 inch)
• Bar Thickness: 6 mm (0.25 inch)
• Duty Rating: Medium-Duty
• Product Type: Bar Clamp

Recommendations

For optimal performance, use the clamp with the quick-change jaw feature to switch between clamping and spreading modes. Always ensure the pads are clean and free of debris to prevent marring. This clamp is ideal for medium-duty tasks and is compatible with DEWALT accessories.
