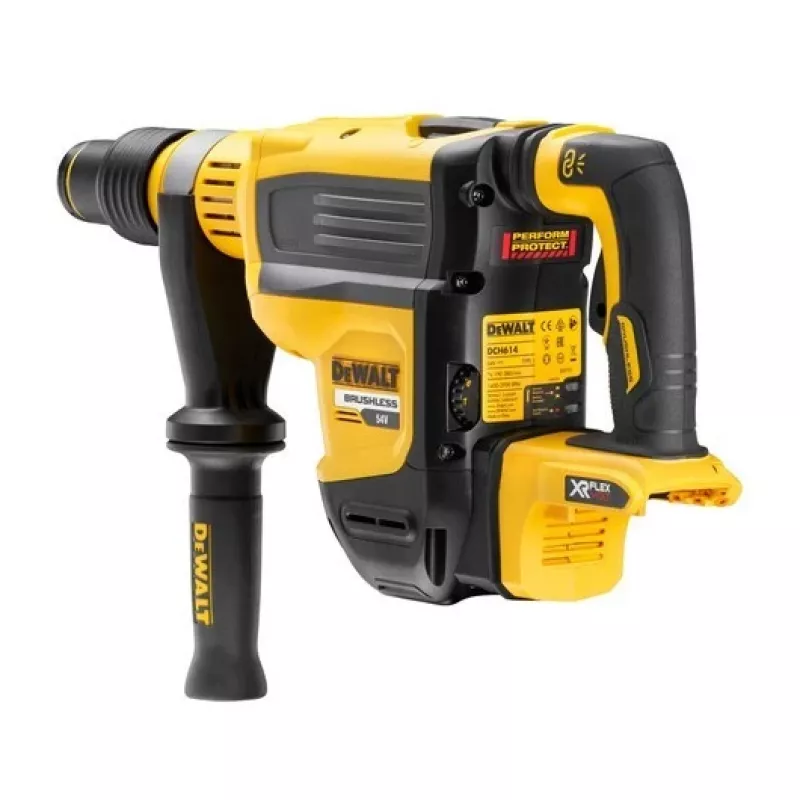

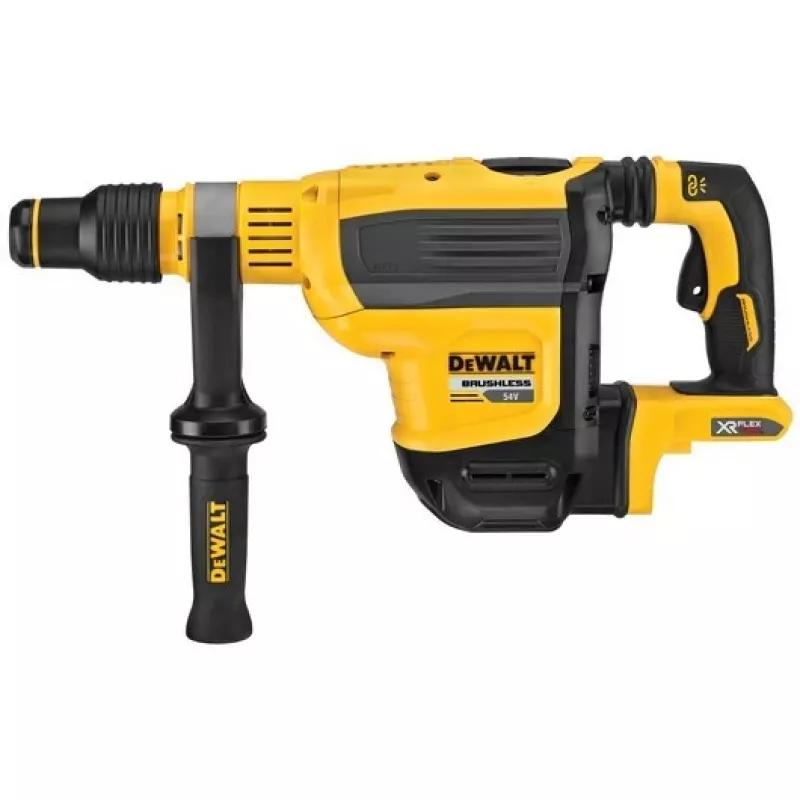

DEWALT DCH614N 380 RPM SDS Max 6.8 kg Cordless Rotary Hammer Black/Yellow

The DEWALT DCH614N is a high-performance cordless rotary hammer designed for professional drilling and chiseling applications. Powered by a 54 V XR FLEXVOLT Li-Ion battery (sold separately), this tool delivers 10.5 J of impact energy and a no-load speed of 190–380 RPM. Its brushless motor and Active Vibration Control (AVC) ensure efficiency and user comfort. The SDS-Max chuck provides secure bit retention, while the mechanical clutch protects the user from sudden kickback.

Advantages

Exceptional power-to-weight ratio with 6.8 kg weight and 10.5 J impact energy. Active Vibration Control reduces vibration for extended use. Brushless motor offers longer runtime and durability. Mechanical clutch enhances safety. Integrated LED light illuminates dark work areas.

Suitable for

• Concrete drilling up to 45 mm diameter
• Core drilling up to 125 mm diameter
• Tunnel drilling up to 65 mm diameter
• Chiseling and demolition work

Key specifications

• Power Source: Cordless (54 V XR FLEXVOLT Li-Ion)
• Chuck Type: SDS-Max
• Impact Energy: 10.5 J (EPTA 05/2009)
• No-Load Speed: 190–380 RPM
• Impact Rate: 1450–2900 BPM
• Max Drilling Capacity (Concrete): 45 mm
• Max Drilling Capacity (Core Bit): 125 mm
• Max Drilling Capacity (Tunnel Bit): 65 mm
• Motor Type: Brushless
• Vibration Control: Active Vibration Control (AVC)
• Vibration (Hammer Drilling): 8.8 m/s²
• Operating Modes: Hammer Drilling, Chiseling
• Safety Clutch: Mechanical Clutch
• Integrated LED Light: Yes
• Sound Pressure Level: 96 dB(A)
• Sound Power Level: 107 dB(A)
• Tool Holder: SDS-Max
• Product Type: Rotary Hammer

Recommendations

For optimal performance, use with DEWALT DCB546 54 V XR FLEXVOLT battery and DCB115 charger. Always wear appropriate personal protective equipment.
