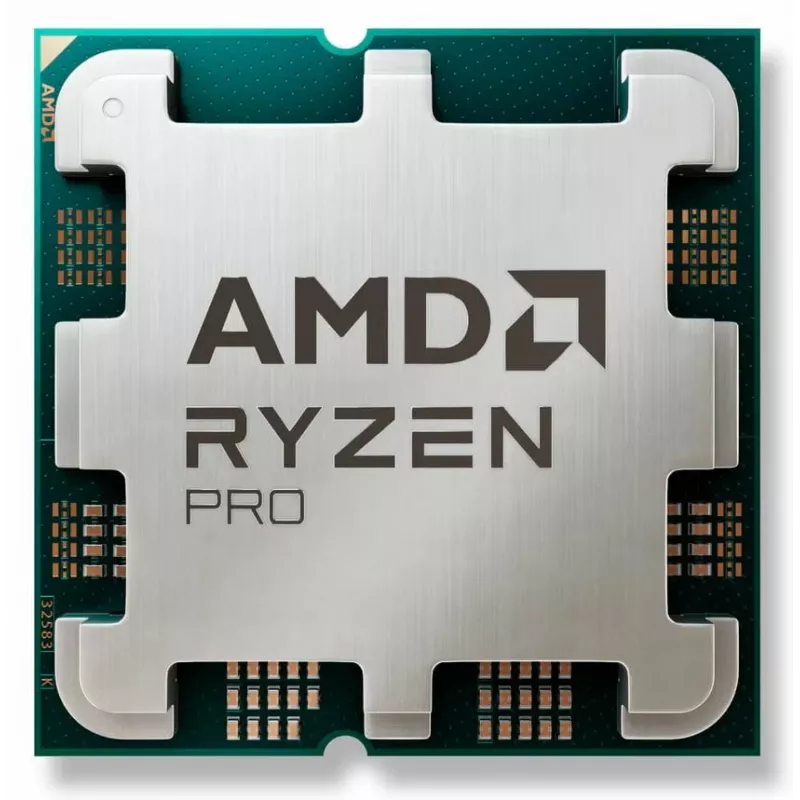

Desktop processor AMD Ryzen 5 PRO 8500G 3.5 GHz, 6 cores, 12 threads, 16 MB L3, Socket AM5, integrated Radeon 740M

The AMD Ryzen 5 PRO 8500G is a desktop processor with a base frequency of 3.5 GHz, six physical CPU cores and a 16 MB L3 cache. Manufactured on a 4 nm process, it integrates AMD Radeon 740M graphics operating at a base frequency of 2800 MHz and provides support for DisplayPort and HDMI 2.1 outputs. The chip supports dual-channel DDR5 memory up to 256 GB and includes professional-grade features from the Ryzen 5 PRO family, making it suitable for business and workstation environments that require reliable performance and platform longevity.

Advantages

The processor combines multi-core performance with integrated Radeon 740M graphics, reducing the need for a discrete GPU for general desktop and office workloads. Support for DDR5 dual-channel memory enables higher memory bandwidth and improved responsiveness. Built on a 4 nm process, the design targets efficiency and thermal control while offering a boost frequency up to 5 GHz for demanding single-threaded tasks. PRO-class features add management and security capabilities commonly required in corporate deployments.

Suitable for

• Office productivity and business desktops
• Light content creation and photo editing
• Home and small office multimedia playback via DisplayPort or HDMI 2.1
• Compact systems where a discrete GPU is not required
• Workloads benefiting from multiple CPU cores and AVX/AES instruction support

Key specifications

• Processor family: AMD Ryzen 5 PRO
• Base frequency: 3.5 GHz
• Boost frequency: up to 5 GHz
• Cores: 6 physical cores
• L3 cache: 16 MB
• Manufacturing process: 4 nm
• Supported memory: Dual-channel DDR5, up to 256 GB
• Integrated graphics: AMD Radeon 740M (base 2800 MHz)
• Display outputs supported: DisplayPort, HDMI 2.1
• Socket: AM5

How to use

Install the processor into a compatible Socket AM5 motherboard following the motherboard manufacturer’s installation procedure and apply an appropriate cooling solution rated for the processor’s thermal output. Populate dual-channel DDR5 memory modules to take advantage of memory bandwidth. Configure BIOS/UEFI settings as required for memory frequency and platform features, then connect displays to available DisplayPort or HDMI 2.1 outputs on the motherboard or system I/O. Install the operating system and drivers provided by the motherboard and AMD to ensure full support for integrated graphics and platform management features.

Recommendations

For consistent performance, use a motherboard with verified AM5 support and quality VRM cooling, install matched DDR5 memory modules in dual-channel configuration, and keep chipset and graphics drivers up to date. Use an adequate CPU cooler to maintain boost frequencies under sustained loads and ensure proper ventilation in the system case.
