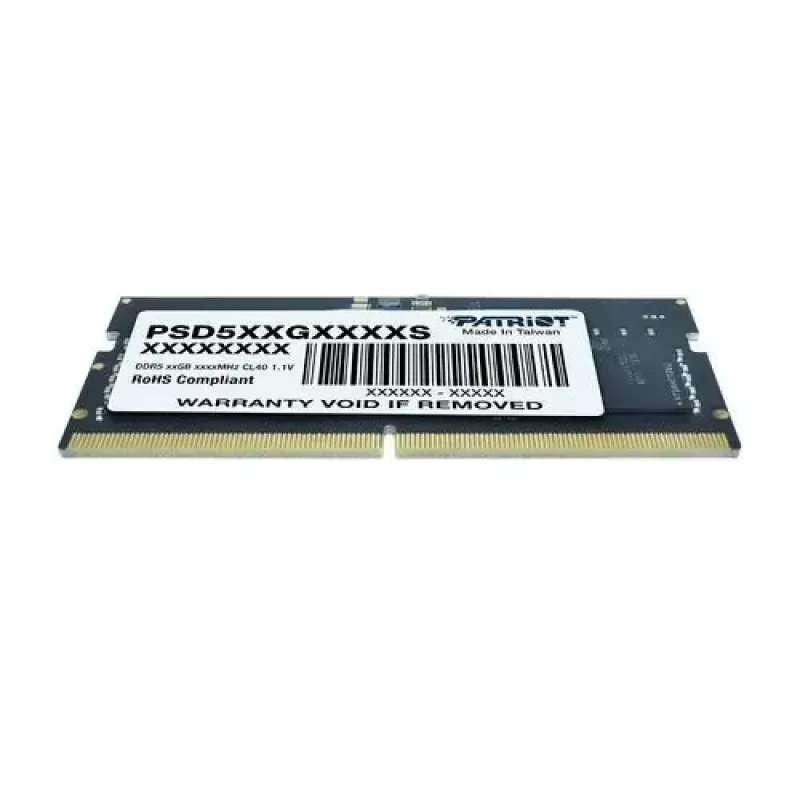

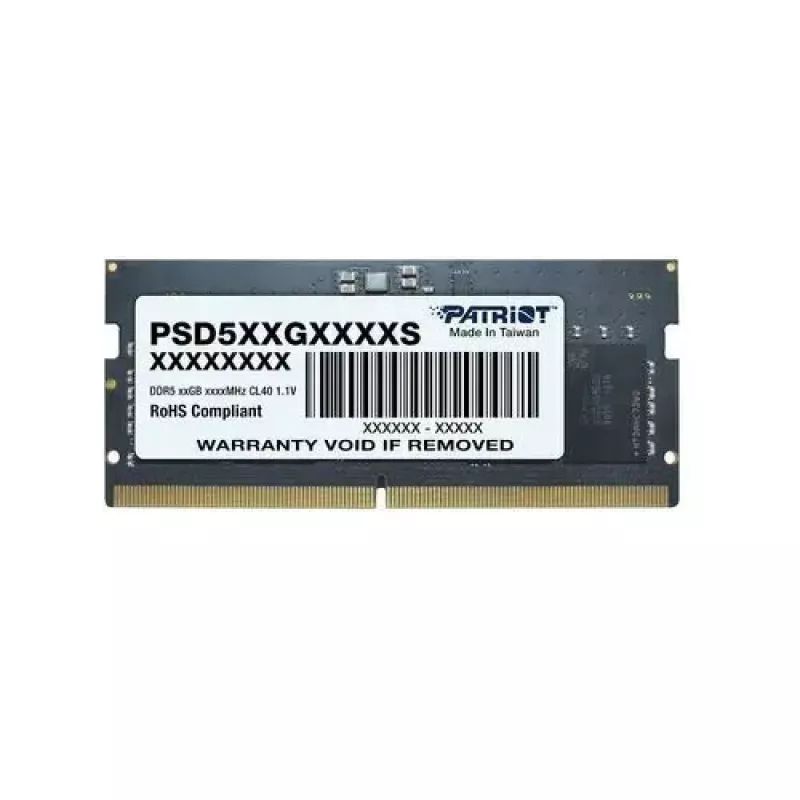

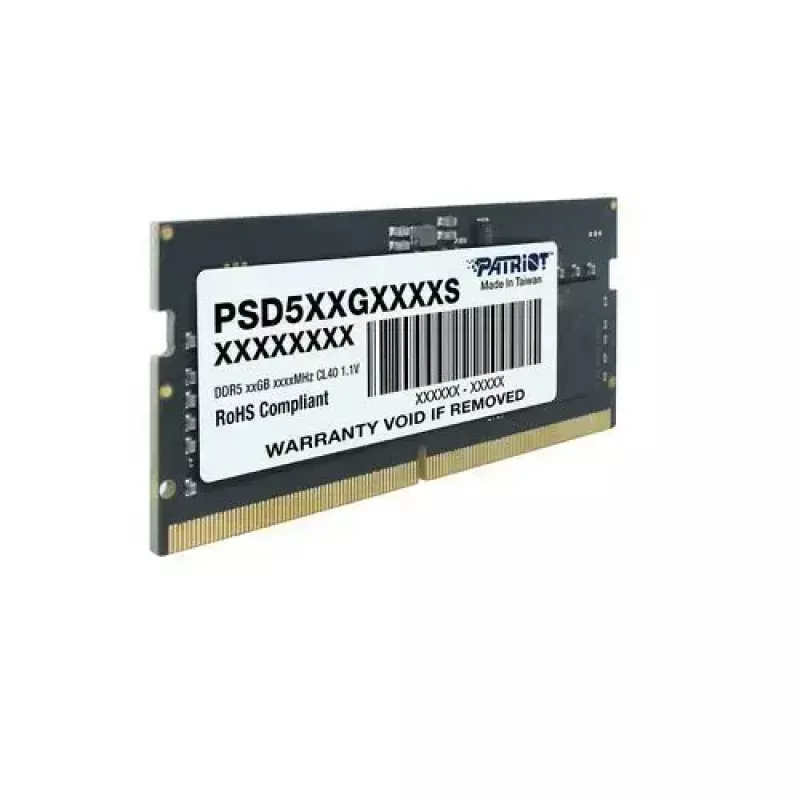

Patriot Memory Signature Line PSD512G56041S hukommelsesmodul 12 GB 1 x 12 GB DDR5 5600 MT/s

Patriot Signature Line DDR5 memory module PSD512G56041S provides 12 GB of DDR5 system memory on a single 288-pin DIMM designed for modern PC and server platforms. Operating at DDR5-5600 (5600 MT/s) with a nominal voltage of 1.1 V, the module integrates on-die ECC for improved data integrity, onboard thermal sensors, and a Power Management IC (PMIC) for local voltage control and efficient power delivery.

Advantages

The Signature Line DDR5 module reduces power consumption and heat generation while delivering higher frequency performance compared with previous generations. Built-in PMIC enables finer voltage regulation and monitoring, and onboard thermal sensors help protect the module from overheating. On-die ECC increases data-processing accuracy and contributes to overall system stability.

Suitable for

• Desktop PCs requiring a single 12 GB DDR5 DIMM
• Workstations and entry-level servers compatible with 288-pin DDR5 DIMM
• Systems targeting DDR5-5600 performance with low-voltage (1.1 V) operation

Key specifications

• Capacity: 12 GB (1 x 12 GB)
• Memory type: DDR5
• Speed: 5600 MT/s (DDR5-5600)
• Form factor: 288-pin DIMM
• Voltage: 1.1 V
• On-die ECC: yes
• Onboard features: PMIC and thermal sensors
• Component for: PC/Server

How to use

Power off the system and unplug it before installing the module. Open the case, locate the appropriate 288-pin DDR5 DIMM slot on the motherboard, align the module notch with the slot key, and press down evenly until the retention clips latch. After installation, power on the system and verify memory detection in the BIOS/UEFI or operating system. Follow the motherboard manual for single-channel or multi-channel population guidelines.

Recommendations

Use this DDR5-5600 module in motherboards that explicitly support DDR5 memory and the 288-pin DIMM form factor. For optimal stability, install matched modules when populating multiple DIMM slots and ensure BIOS/UEFI is updated to the latest version for full compatibility.
