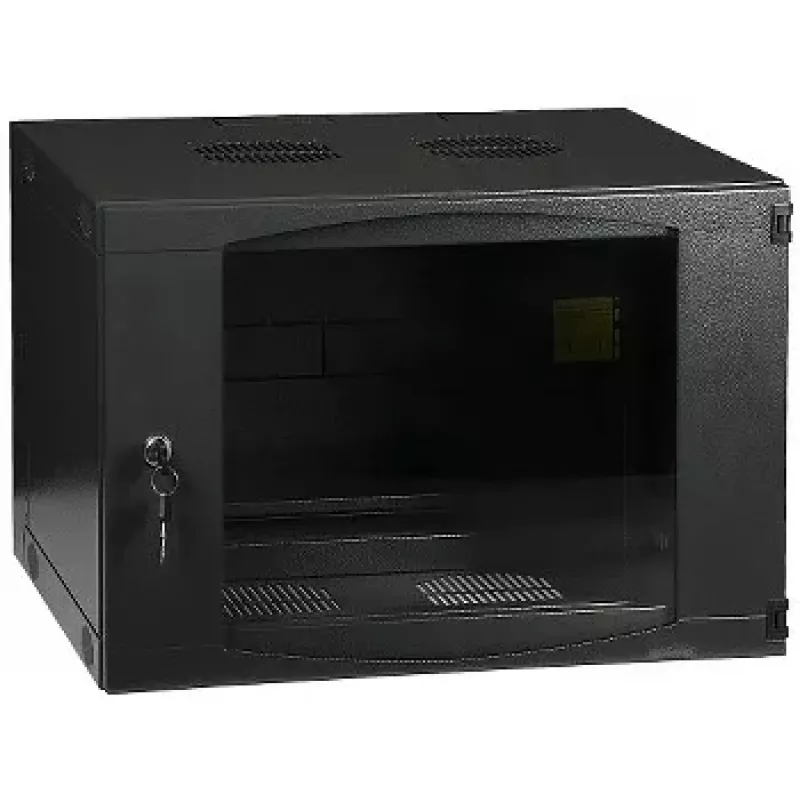

DELTA ENERGY SYSTEMS (SWITZERLAND) AG Wall-Mount Rack Cabinet, Two-Section, 9U, 19 inch, 450mm Depth, Black (RAL 9004)

The DELTA ENERGY SYSTEMS (SWITZERLAND) AG R19-9U/450/2S is a high-quality wall-mount rack cabinet designed for secure and organized installation of 19-inch IT equipment. This two-section enclosure offers separate compartments for active and passive components, enhancing cable management and security. Constructed from high-grade cold-rolled steel with a black (RAL 9004) finish, it provides robust protection for networking, server, CCTV, and other electronic devices.

Advantages

Two-section design allows flexible equipment segregation; tempered glass front door with lock for visibility and security; removable side panels with locks for easy access; adjustable 19" mounting rails front and rear; passive ventilation ready for fan tray; top and bottom cable entry with knock-out plates; self-assembly flat-pack construction reduces shipping volume; includes mounting kit, keys, and cage nuts.

Suitable for

• Networking equipment (switches, patch panels, routers)
• Server and storage devices
• CCTV and surveillance systems
• IT and telecommunications infrastructure

Key specifications

• Rack Type: Wall-Mount, Two-Section
• Rack Standard: 19-inch
• Rack Units: 9U
• External Dimensions (WxDxH): 600 x 450 x 500 mm
• Material: High-grade cold-rolled steel
• Front Door: Tempered glass with lock
• Side Panels: Removable with locks
• Mounting Rails: Adjustable front and rear
• Static Load Capacity: 60 kg
• Protection Rating: IP20
• Colour: Black (RAL 9004)
• Included Accessories: Mounting kit, 2 keys for front door, 2 keys for side panels, 20x M6 cage nuts
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use cable management accessories to maintain airflow and organization. This cabinet is ideal for wall-mounted installations where floor space is limited.
