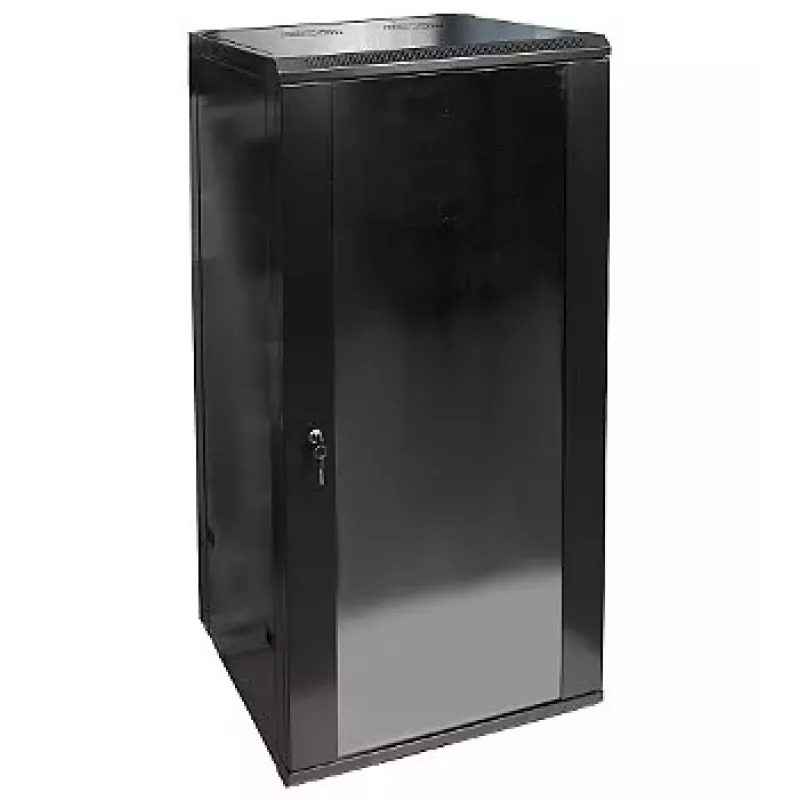

DELTA ENERGY SYSTEMS (SWITZERLAND) AG EPRADO-R19-27U/600 Wall Mount Rack Cabinet 27U 19 inch 600x600mm Black

The DELTA ENERGY SYSTEMS (SWITZERLAND) AG EPRADO-R19-27U/600 is a high-quality 27U wall mount rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With a compact 600x600mm footprint, this rack is ideal for space-constrained environments such as server rooms, offices, and data closets.

Advantages

This wall mount rack offers robust construction with cold rolled steel and a powder-coated finish in black (RAL 9005). The tempered glass front door with lock provides visibility and security, while removable side panels with locks allow easy access for cable management and maintenance. Cable entry points at top and bottom with brush panels ensure neat cable routing. Pre-assembled design saves installation time.

Suitable for

• Network switches, patch panels, and routers
• Small to medium server installations
• Audio/visual equipment
• Telecommunications and security systems

Key specifications

• Rack Standard: 19-inch
• Rack Units: 27U
• External Dimensions (WxDxH): 600 x 600 x 1340 mm
• Mounting Type: Wall Mount
• Material: Cold Rolled Steel
• Front Door: Tempered Glass with Lock
• Side Panels: Removable with Locks
• Cable Entry: Top and Bottom with Brush Panels
• Ventilation: Passive (perforated top/bottom)
• Static Load Capacity: 60 kg
• Color: Black (RAL 9005)
• Mounting Rails: Two pairs, adjustable depth
• IP Protection Rating: IP20
• Finish: Powder Coated
• Compliance: RoHS, CE
• Assembly: Pre-assembled
• Included Accessories: 2x Keys, Mounting Hardware

Recommendations

For optimal performance, ensure the wall mount is securely anchored to a load-bearing wall. Use appropriate cable management accessories to maintain airflow and organization.
