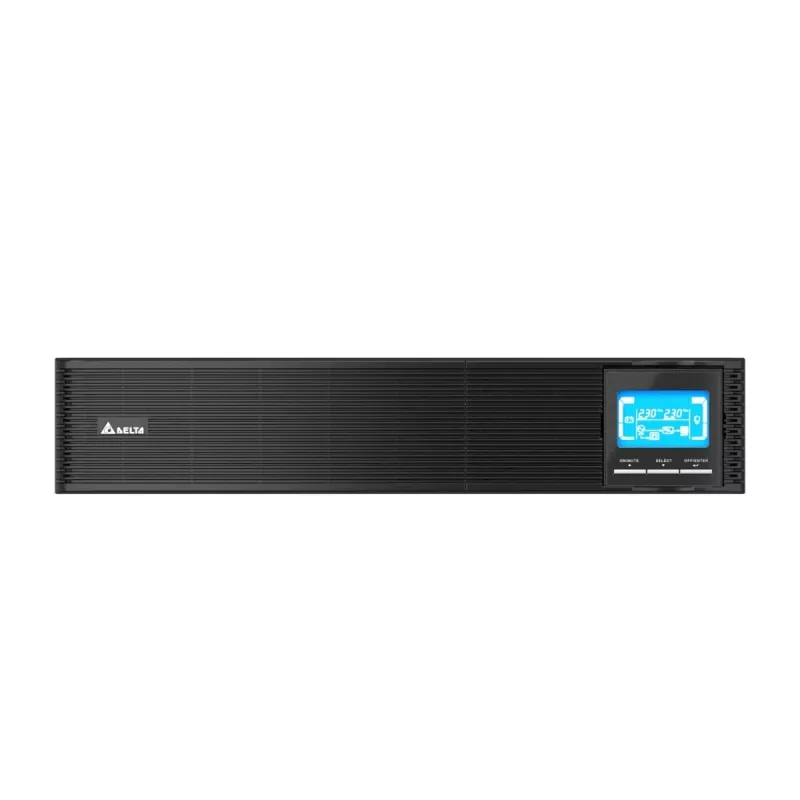

DELTA ELECTRONICS Amplon RT-3K UPS UPA302R2RX0B035 3000 VA 2700 W Online Double Conversion Rack/Tower 2U

The DELTA ELECTRONICS Amplon RT-3K UPS (model UPA302R2RX0B035) is a high-performance online double conversion uninterruptible power supply designed to provide reliable, clean power for critical equipment. With a capacity of 3000 VA / 2700 W and a power factor of 0.9, it ensures efficient operation and protection against power disturbances. Its rack/tower convertible 2U form factor offers flexible installation options for data centers, server rooms, and network closets.

Advantages

This UPS delivers pure sine wave output, automatic voltage regulation, and hot-swappable batteries for uninterrupted uptime. ECO mode achieves up to 98% efficiency, reducing energy costs. The intelligent fan and low noise level (<50 dB) make it suitable for office environments. Communication via USB, RS-232, and Smart Slot enables remote monitoring and management.

Suitable for

• Servers and network equipment
• Telecommunications systems
• Medical devices
• Industrial automation
• Data storage systems

Key specifications

• UPS topology: Online Double Conversion
• Capacity: 3000 VA / 2700 W
• Form factor: Rack/Tower Convertible (2U)
• Input voltage range: 170-280 VAC (full load), 110-280 VAC (half load)
• Output voltage: 200/208/220/230/240 VAC (selectable)
• Output frequency: 50/60 Hz (auto-sensing)
• Output waveform: Pure Sine Wave
• Efficiency (Online mode): Up to 94%
• Efficiency (ECO mode): Up to 98%
• Battery type: Sealed Lead-Acid (SLA)
• Internal batteries: 6 x 12V/9Ah
• Output connections: 8 x IEC C13, 1 x IEC C19
• Input connection: 1 x IEC C20
• Communication ports: USB, RS-232, Smart Slot
• Hot-swappable batteries: Yes
• Noise level: <50 dB at 1 meter
• External battery pack support: Yes

Recommendations

For optimal performance, pair this UPS with an external battery pack for extended runtime. Use the included software for automatic shutdown and monitoring. Ensure proper ventilation and avoid overloading.
