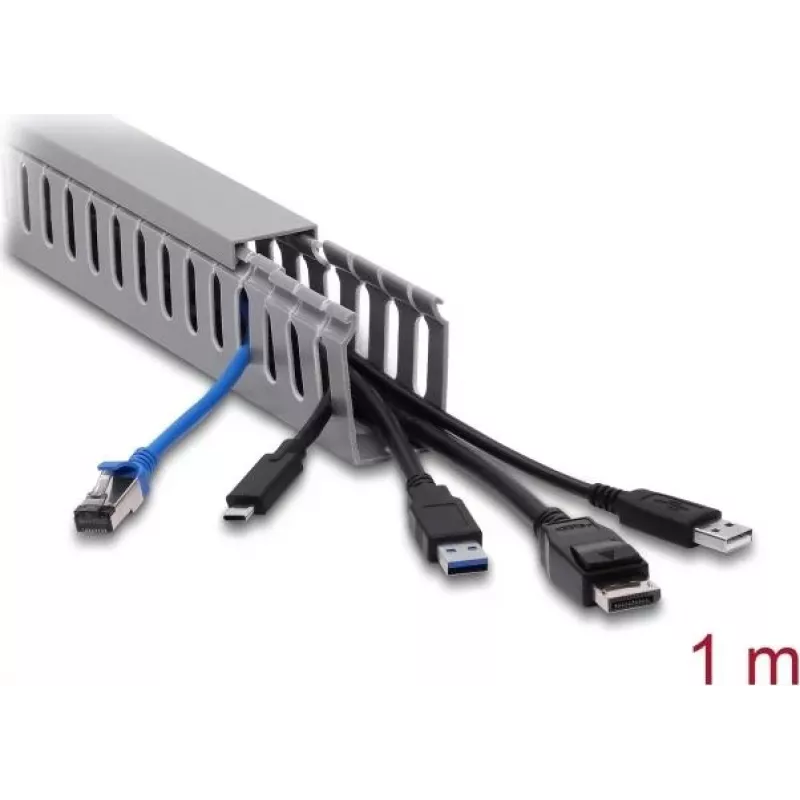

Delock Wiring Duct 30 x 50 mm, 1 m, Grey

Messy and unprotected cable runs in control cabinets and electrical installations are a common source of maintenance headaches and safety risks. This Delock wiring duct solves that by providing a robust, slotted channel that neatly routes and shields wires, while the included cover keeps dust and accidental contact at bay.

Who is it for

Electricians, panel builders, and maintenance technicians who need a reliable and easy-to-install solution for organizing cables in industrial enclosures, control cabinets, or along walls. It suits both new installations and retrofits where cable management must be clean and code-compliant.

Main features

• Slotted finger design allows cables to exit at any point along the duct, simplifying branch-offs.
• Made of rigid PVC with UL94 V-0 flammability rating for enhanced fire safety.
• Includes a snap-on cover that protects cables from dust and accidental contact.
• Pre-punched mounting holes in the base enable quick screw fastening.
• Grey RAL 7030 colour blends seamlessly into standard industrial environments.

Specifications

• Dimensions: 30 mm height x 50 mm width x 1 m length
• Slot width: 6 mm; slot spacing: 8 mm
• Material: PVC (polyvinyl chloride), halogen-free: No
• Flammability rating: UL94 V-0, self-extinguishing
• Operating temperature: -5 °C to 60 °C
• Mounting: Screw mounting via base perforations
• Certifications: RoHS

Tips

For a clean finish, cut the duct to length with a fine-tooth saw and deburr the edges. When routing high-voltage and low-voltage cables, use separate ducts to avoid interference. The cover can be easily removed for future cable additions—simply snap it back on after modifications.
