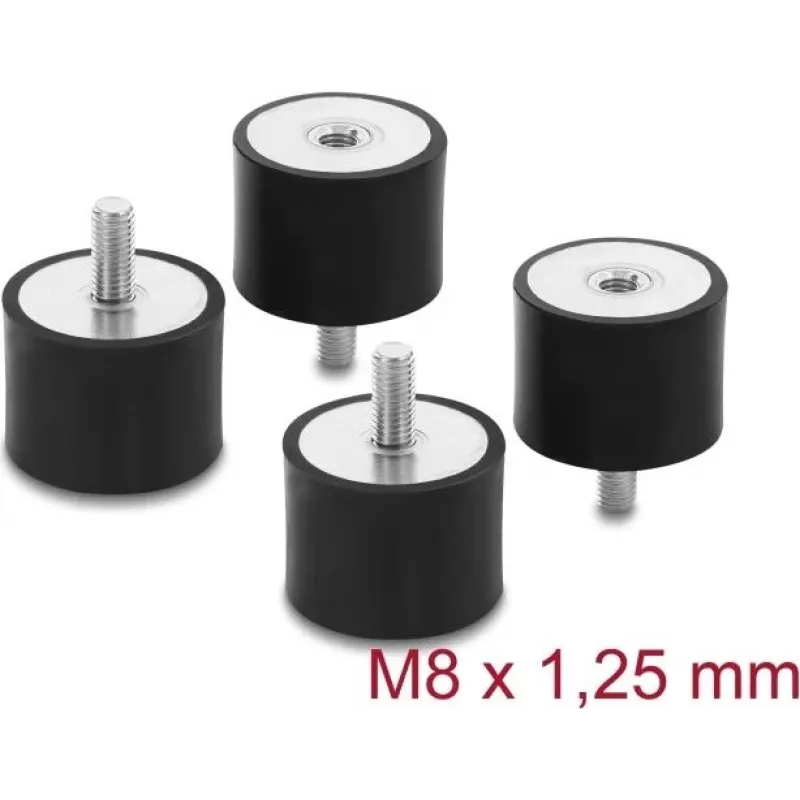

Delock Vibration Damper M8 x 1.25 mm D 40 x H 30 mm with Male and Female Thread 4 Pieces Black (60822)

The Delock Vibration Damper (60822) is a high-quality set of four rubber vibration dampers designed to reduce vibrations, shock, and noise in various applications. Each damper features a natural rubber body with a diameter of 40 mm and a height of 30 mm, equipped with both male and female M8 x 1.25 mm threads for easy screw-in or bolt-on mounting. The galvanized steel inserts provide corrosion resistance, while the rubber hardness of 55 Shore A ensures optimal damping properties. With a static load capacity of up to 100 kg in compression and 40 kg in shear, these dampers are ideal for isolating vibrations in machinery, electronics, automotive, and industrial equipment. The operating temperature range of -30°C to +80°C makes them suitable for both indoor and outdoor use.

Advantages

Effective vibration isolation and shock absorption reduce wear and noise. Easy installation with male and female threads. Corrosion-resistant galvanized steel components. High elasticity and good damping properties. Suitable for a wide temperature range.

Suitable for

• Vibration isolation of motors, pumps, and compressors
• Shock absorption for sensitive electronic equipment
• Noise reduction in automotive and industrial applications
• Mounting of fans, drives, and other rotating machinery

Key specifications

• Thread: M8 x 1.25 mm male and female
• Rubber body: 40 mm diameter, 30 mm height
• Material: Natural rubber (NR) with galvanized steel
• Hardness: 55 Shore A
• Static load capacity: 1000 N (compression), 400 N (shear)
• Temperature range: -30°C to +80°C
• Quantity: 4 pieces
• Colour: Black

Recommendations

For best results, ensure the mounting surface is clean and the threads are properly aligned. Do not exceed the maximum load capacity. Suitable for use with M8 bolts or screws.
