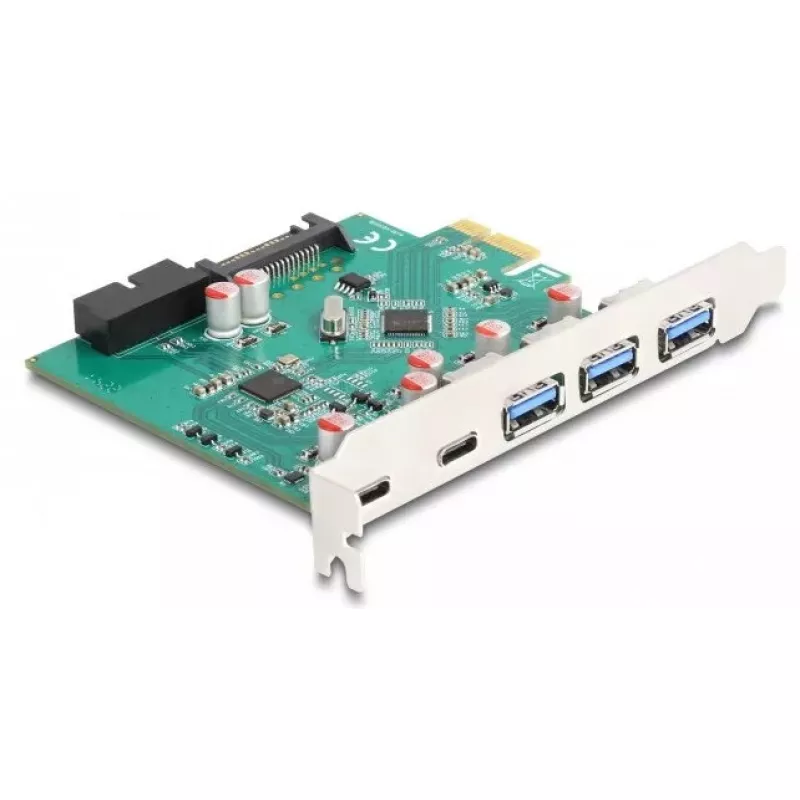

DeLOCK USB 5 Gbps PCI Express x1 Card 3x Type-A 2x Type-C 1x Header

This PCI Express x1 card from Delock expands a desktop PC with three external USB Type-A ports, two external USB Type-C ports and one internal 19-pin USB header (male). It supports USB 3.2 Gen 1 (USB 3.1 Gen 1) with data transfer rates up to 5 Gbps and is suitable for connecting USB flash drives, card readers, external enclosures and other USB peripherals.

Advantages

The card provides a combination of Type-A and Type-C external ports plus an internal header on a single PCIe x1 adapter, enabling modern and legacy device connections. Support for USB 3.2 Gen 1 delivers transfer speeds up to 5 Gbps. Installation into a free PCI Express x1 slot requires no additional cabling for the external ports and allows connecting internal front-panel hubs or card readers via the 19-pin header.

Suitable for

Key specifications

How to use

Power off the PC and unplug it from the mains. Install the card into an available PCI Express x1 slot on the motherboard and secure it with the case screw. If required, connect an internal cable from the 19-pin header on the card to a compatible front-panel USB module or card reader. Reassemble the case, power on the system and install any necessary drivers provided by the operating system or manufacturer. After driver installation the external Type-A and Type-C ports are ready for use.

Recommendations

For optimal performance, connect high-speed devices to the external USB 3.2 Gen 1 ports and ensure the host motherboard slot supports PCIe x1. Avoid using long or low-quality USB cables to reduce potential speed or stability loss. Check device compatibility with USB 3.2 Gen 1 where necessary.
