Delock Rotary Switch for Installation 22 mm Latching 6x Solder Connection IP65 Black 20991

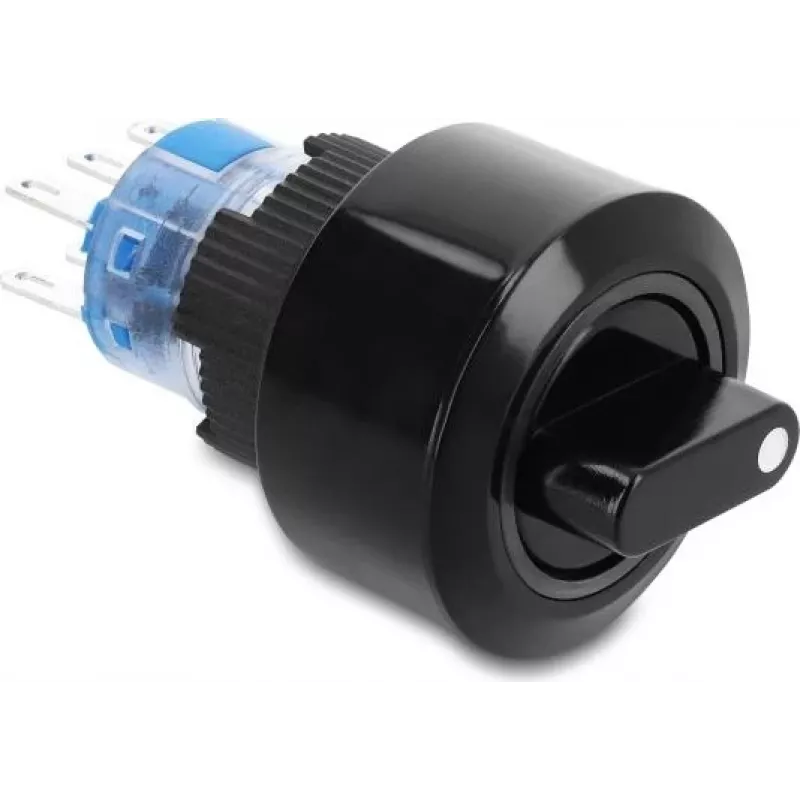

The Delock 20991 is a robust rotary switch designed for panel mounting with a 22 mm cutout. It features a latching (maintained) operation mode, making it ideal for applications where the switch position must remain until manually changed. With 6 solder terminals and a DPDT contact configuration, it offers versatile control for electrical circuits. The switch is IP65 rated, providing protection against dust and water jets, suitable for industrial environments. Its black plastic housing and knob actuator ensure durability and a professional appearance.

Advantages

High reliability with a latching mechanism ensures stable operation. The IP65 rating allows use in harsh conditions. Solder terminals provide secure connections. Compact 22 mm mounting fits standard panel cutouts.

Suitable for

• Industrial control panels
• Automation systems
• Electrical enclosures
• Machinery and equipment

Key specifications

• Switch Type: Rotary Switch
• Operation Mode: Latching (Maintained)
• Mounting Cutout Diameter: 22 mm
• Number of Positions: 2
• Number of Terminals: 6
• Terminal Type: Solder
• Ingress Protection (IP) Rating: IP65
• Color: Black
• Max. Current Rating: 10 A
• Max. Voltage Rating: 400 V AC
• Operating Temperature Range: -25 °C to 70 °C
• Housing Material: Plastic
• Actuator Type: Knob
• Contact Configuration: DPDT (Double Pole Double Throw)
• Installation Depth: 35 mm (behind panel)
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper soldering technique and use appropriate panel thickness. Verify voltage and current ratings for your application.
