DeLOCK RJ45 plug to Terminal Block Adapter 2 pin 66589 Black Green

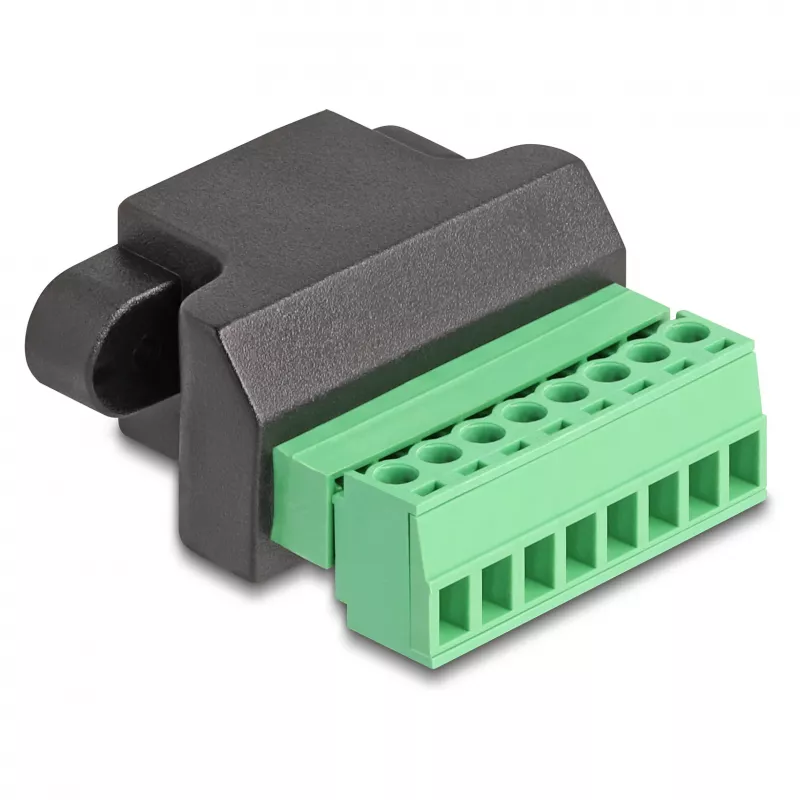

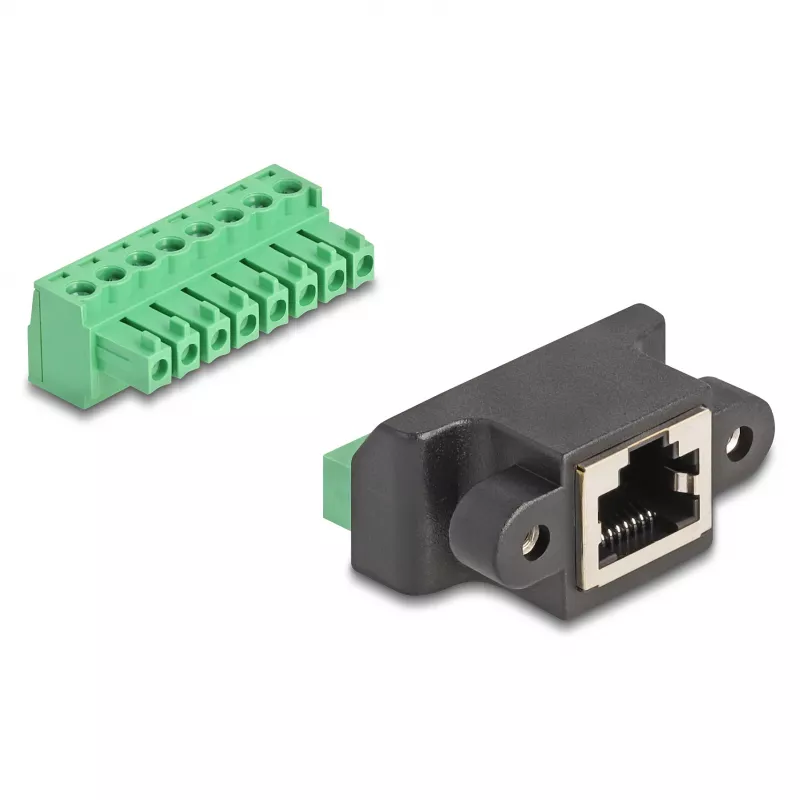

This DeLOCK RJ45 plug to Terminal Block Adapter 2 pin (MPN 66589) allows connection of bare wires to an RJ45 interface. The adapter combines an RJ45 plug with an 8‑pin terminal block and is supplied in black and green variants. It is intended for installations where an RJ45 screwable jack or housing cut‑out accepts the module and where a secure wire termination is required.

Advantages

The adapter provides a straightforward method to terminate bare wires to an RJ45 connection without soldering. The screwable terminal block enables secure and serviceable connections. Its compact design fits into housings or slot brackets with a suitable cut‑out, and availability in black and green helps with visual identification in installations.

Suitable for

• Connecting bare wires to RJ45 interfaces
• Prototyping and testing network or signal wiring
• Installation into housings or slot brackets with compatible cut‑outs

Key specifications

• Brand: DELOCK
• MPN: 66589
• EAN: 4043619665891
• Connector 1: RJ45 plug
• Connector 2: 8 pin terminal block (screwable)
• Product colours: Black, Green

How to use

Strip the insulation from the conductors to the appropriate length, insert each bare wire into the corresponding terminal of the 8‑pin block and tighten the screws to secure the wires. Attach the RJ45 plug into the mating socket or mount the adapter into a housing/slot bracket cut‑out as required. Verify each connection for correct wiring and mechanical security before powering the system.

Recommendations

Use appropriate wire gauge compatible with the terminal block, avoid over‑tightening the screw terminals, and ensure correct pin assignment for the RJ45 interface to prevent wiring errors.
