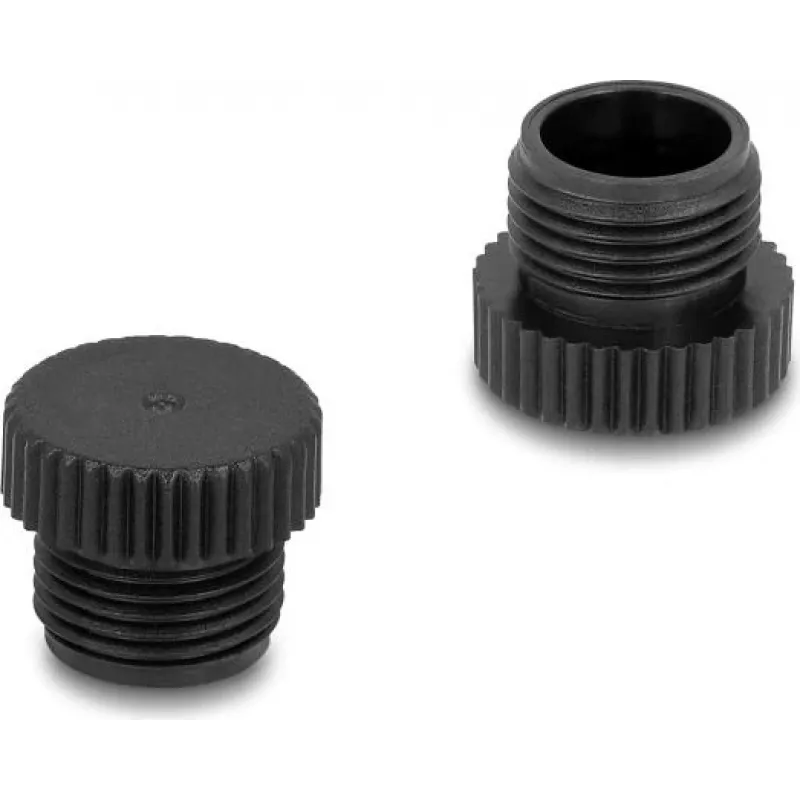

Delock Protective Cap for M12 Socket, Screw-On, Plastic, IP67 Dustproof & Waterproof, Black (60845)

Unprotected M12 sockets in industrial environments are vulnerable to dust, moisture, and mechanical damage, leading to connection failures and costly downtime. The Delock 60845 protective cap provides a robust solution: a screw-on cover that seals M12 female connectors with an IP67 rating, ensuring reliable protection even in harsh conditions.

Who is it for

This cap is ideal for maintenance technicians, system integrators, and industrial engineers who need to safeguard unused M12 ports on machinery, sensors, or control panels. It suits applications in factory automation, outdoor installations, transportation, and any setting where connectors are exposed to dust, water, or impact.

Main features

• Screw-on design for secure, vibration-resistant attachment to standard M12 sockets (A, B, D, X-coded).
• IP67 rated: completely dustproof and protected against temporary immersion in water (up to 1 m for 30 minutes).
• Made from durable PA66 plastic, resistant to oils, chemicals, and UV exposure.
• Compact dimensions (17.5 mm length, 18.5 mm diameter) allow use in tight spaces.
• Wide operating temperature range from -20 °C to 85 °C for reliable performance in extreme environments.
• RoHS and REACH compliant, ensuring environmental safety.

Specifications

• Product type: Protective cap
• Compatible connector: M12 socket (female)
• Mounting: Screw-on (M12 thread)
• Material: PA66 plastic
• Colour: Black
• Protection rating: IP67 (dustproof, waterproof)
• Operating temperature: -20 °C to 85 °C
• Overall length: 17.5 mm
• Overall diameter: 18.5 mm
• Compliance: RoHS, REACH

Tips

Before installing, ensure the M12 socket is clean and dry. Hand-tighten the cap firmly, but avoid over-torquing to prevent thread damage. For outdoor use, periodically inspect the cap for wear and replace if the sealing surface is compromised. Keep spare caps on hand to protect all unused ports during maintenance or storage.
