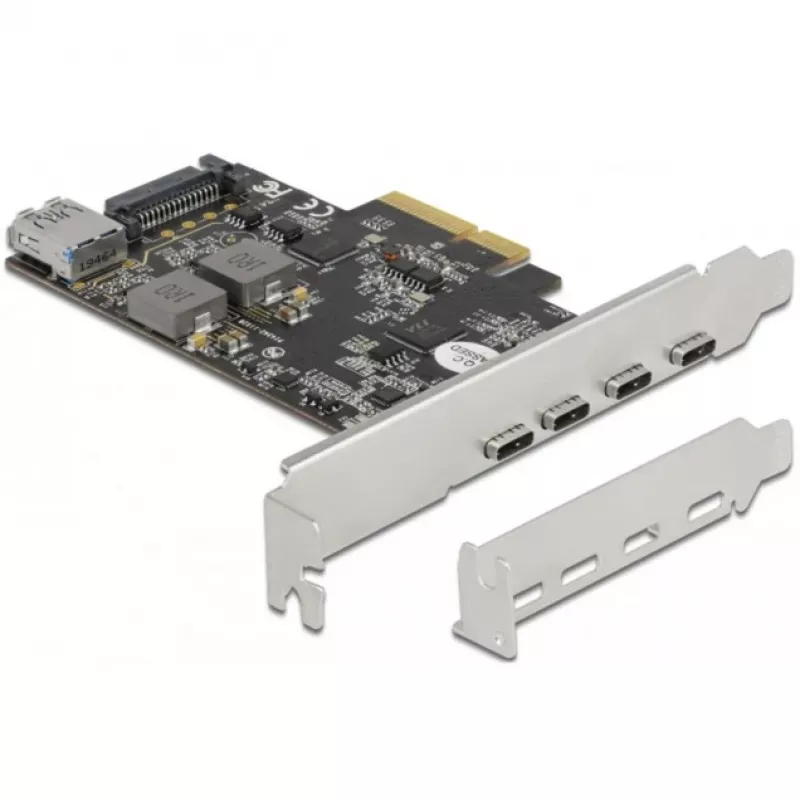

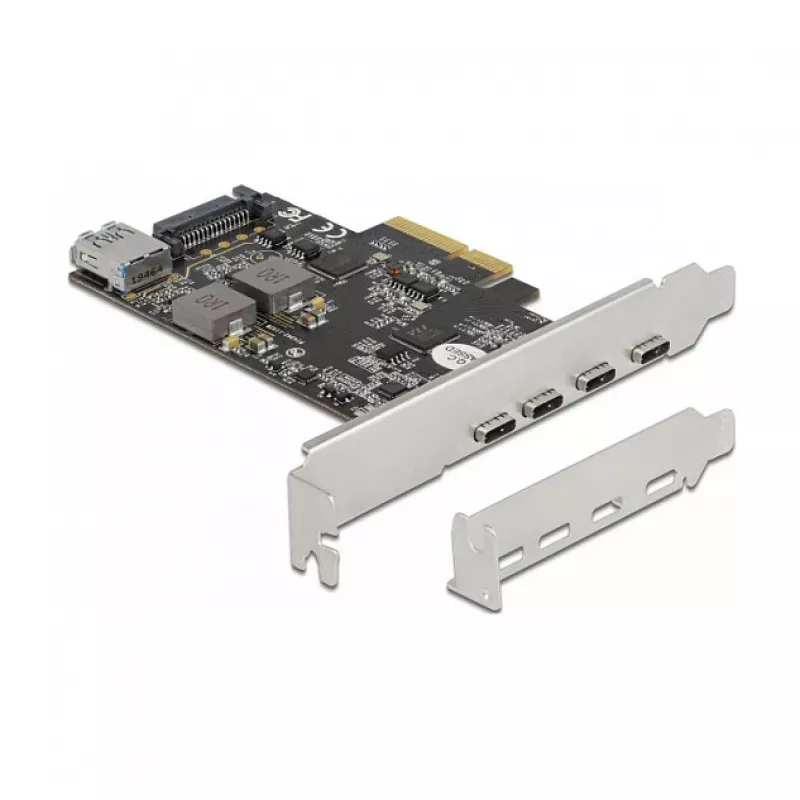

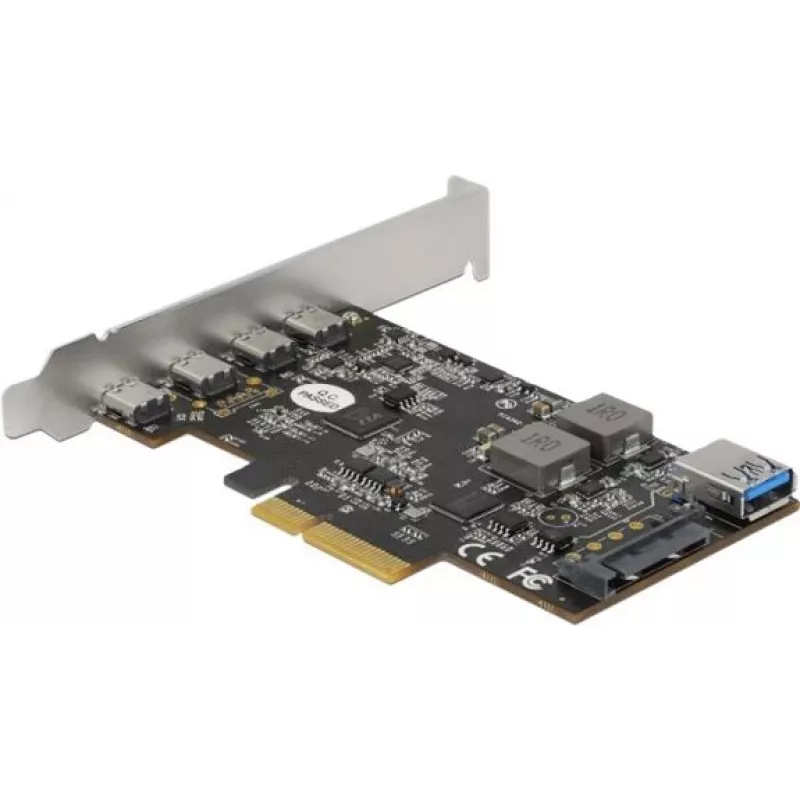

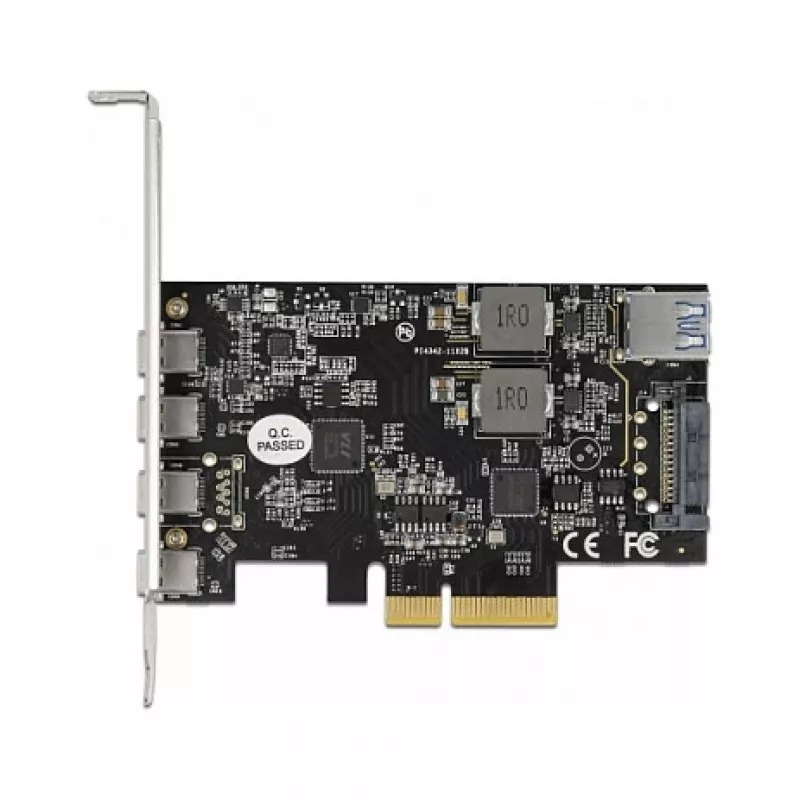

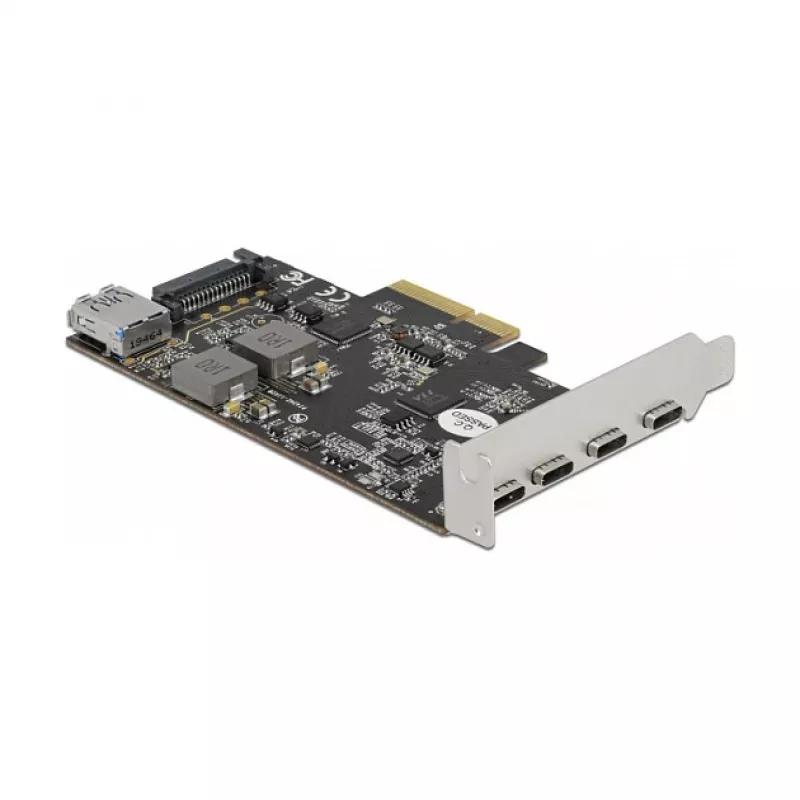

Delock PCI Express x4 Card to 4 x USB Type-C + 1 x USB Type-A - SuperSpeed USB 10 Gbps - Low Profile Form Factor, USB Controller

Expand your system with four external USB 3.2 Gen 2 Type-C ports and one internal Type-A port, each delivering up to 10 Gbps data transfer speeds. This low-profile PCI Express x4 card is powered by the ASMedia ASM3142 controller and supports UASP for efficient storage performance.

Overview

The Delock 90059 is a PCI Express 3.0 x4 expansion card that adds four SuperSpeed USB 10 Gbps Type-C ports to the rear bracket, plus one internal USB Type-A port. It is designed for low-profile systems and includes both standard and low-profile brackets. The card draws power from the PCIe bus and an additional SATA 15-pin power connector to ensure stable operation when multiple devices are connected.

What stands out

• Four external USB-C ports with 10 Gbps transfer rates
• One internal USB-A port for connecting internal peripherals
• ASMedia ASM3142 controller with UASP support
• Low-profile form factor with included brackets
• BC 1.2 charging on the Type-A port (5 V / 1.5 A)

Technical details

• Host interface: PCI Express 3.0 x4
• External ports: 4 x USB 3.2 Gen 2 Type-C
• Internal port: 1 x USB 3.2 Gen 2 Type-A
• Data transfer rate: up to 10 Gbps
• Chipset: ASMedia ASM3142
• Power supply: PCIe bus + SATA 15-pin connector
• USB Type-C power output: 5 V / 3 A (15 W)
• USB Type-A power output: 5 V / 1.5 A (7.5 W)
• Supports USB Battery Charging BC 1.2 on Type-A port
• UASP support: Yes
• Hot-swap: Yes
• Operating systems: Windows 7/8/8.1/10/11, Linux Kernel 4.6.x and above
• Backward compatible with USB 3.0/2.0/1.1 and PCIe 2.0/1.0

Our verdict

The Delock 90059 is a versatile expansion card for systems that need multiple high-speed USB-C ports in a compact form factor. Its internal Type-A port adds flexibility for connecting internal devices, and the included brackets make installation straightforward in both standard and low-profile cases.
