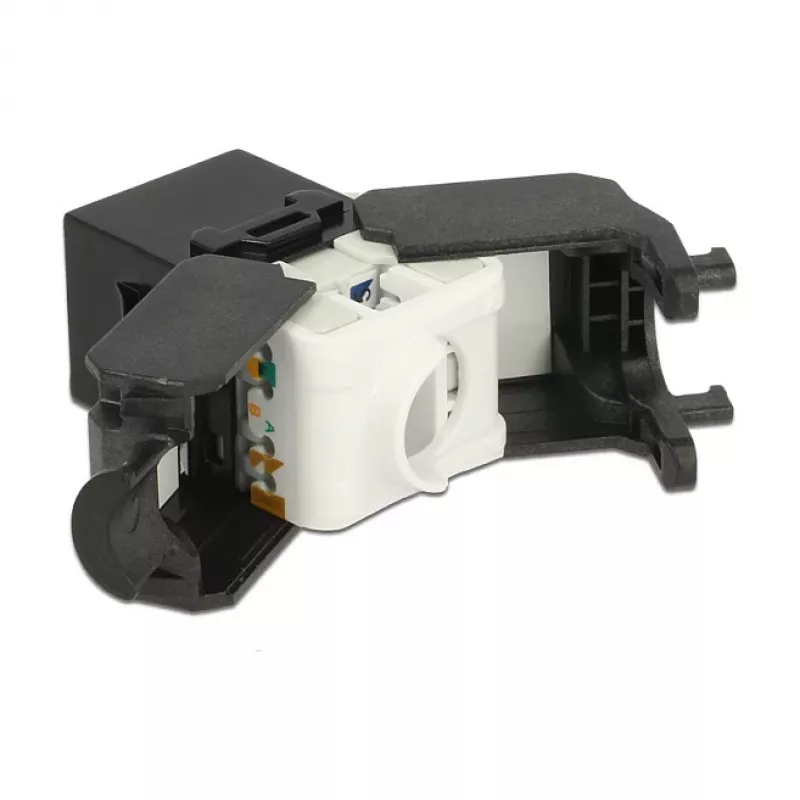

DeLOCK keystone module 86267 Black RJ-45 LSA 16mm 37.8mm 22.5mm

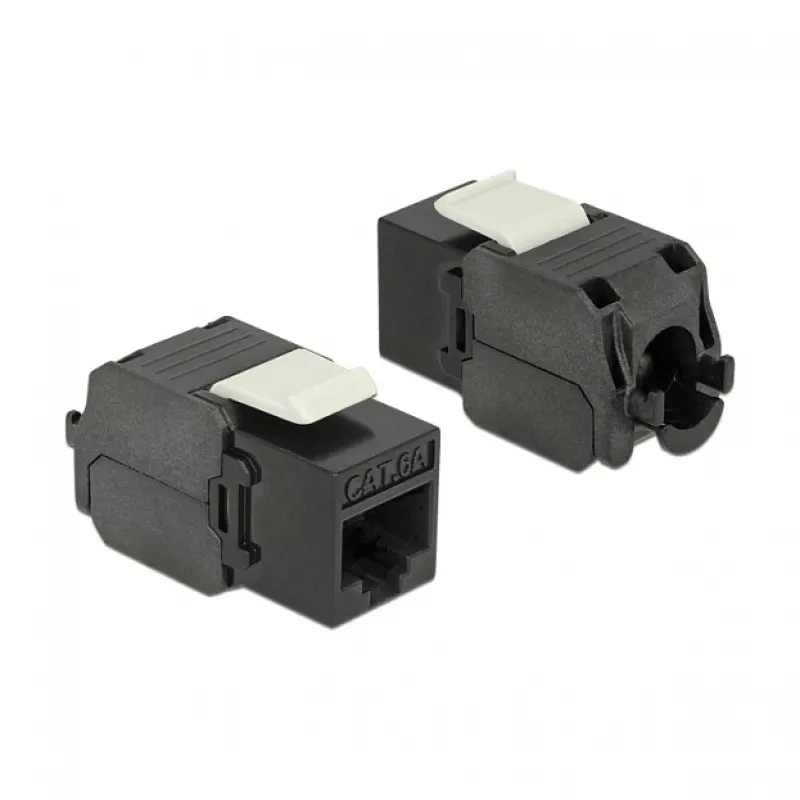

The DeLOCK keystone module 86267 is a compact connection unit designed to link twisted pair cable to an RJ45 jack. It features a black housing and an LSA (insulation displacement) contact for reliable termination. With standardised keystone dimensions, the module fits into common keystone patch panels, face plates and surface-mount boxes for tidy network installations.

Advantages

The module offers a space-saving keystone form factor and a black finish that blends with many cable management panels. The LSA contact ensures a secure, tool-friendly termination of twisted pair cables without the need to strip conductor insulation. Standardised dimensions provide compatibility with widely used keystone mounting systems.

Suitable for

• Keystone patch panels
• Face plates and wall outlets
• Surface-mount boxes and small network enclosures
• Installation of Ethernet RJ45 connections using LSA termination

Key specifications

• Brand: DELOCK
• Model / MPN: 86267
• Connector: RJ-45 (female) with LSA termination
• Colour: Black
• Width: 16 mm
• Depth: 37.8 mm
• Height: 22.5 mm
• EAN: 4043619862672

How to use

Insert the module into a compatible keystone port on a patch panel, face plate or surface-mount box until it snaps into place. Terminate the twisted pair conductors into the LSA contacts according to the accepted wiring scheme (e.g. T568A or T568B) and use the appropriate LSA tool to press the conductors into the contacts. After termination, check continuity and signal integrity with a network tester before finalising the installation.

Recommendations

Use the module in standard keystone mounting systems and follow recommended wiring schemes (T568A/T568B). For reliable results, use a proper LSA termination tool and test each connection with a network tester after installation.
