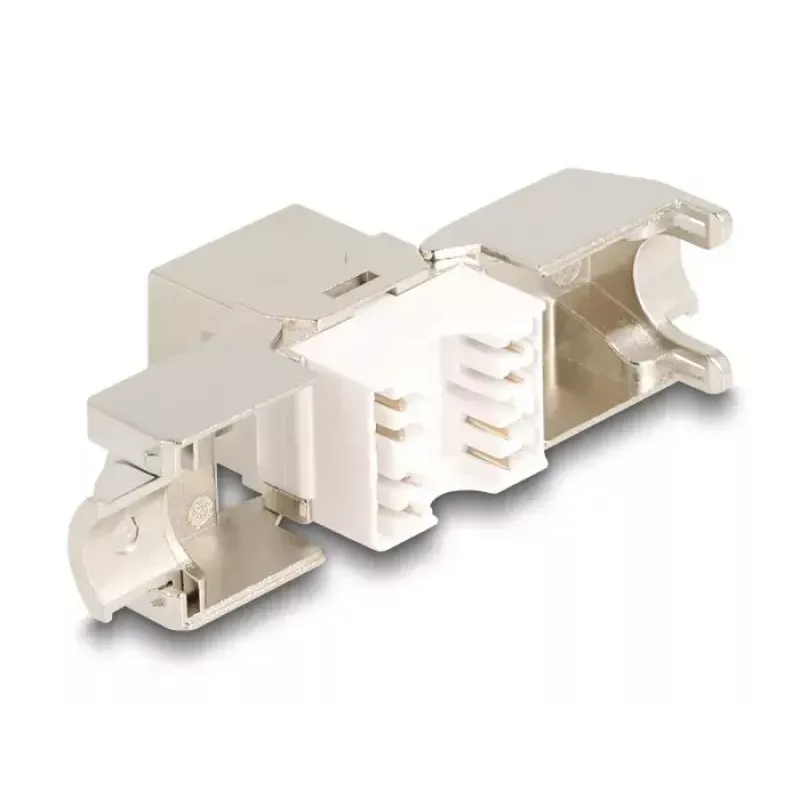

DeLOCK keystone module 86050 Flat RJ-45 LSA 16.3x16.3x23mm

The DeLOCK 86050 keystone module provides a compact flat RJ-45 to LSA connection for twisted pair cabling. With standardised keystone dimensions (16.3 x 16.3 x 23 mm) it is suitable for snap-in mounting in keystone patch panels, faceplates or surface-mount boxes. The module is supplied in a polybag, 4 pieces per pack.

Advantages

The module combines an RJ-45 jack with an LSA termination interface in a space-saving flat form factor. Its standardised keystone size allows quick and secure snap-in installation in common panels and plates. The product is delivered in multi-packs to support small installation projects and reduce unpacking time.

Suitable for

• Connecting twisted pair cables to RJ-45 jacks in structured cabling
• Installation in keystone patch panels
• Mounting in face plates and surface-mount boxes
• Small network installation and maintenance tasks

Key specifications

• Brand: DELOCK
• Model / MPN: 86050
• EAN: 4043619860500
• Connector: RJ-45 jack to LSA termination
• Keystone dimensions (W x D x H): 16.3 x 16.3 x 23 mm
• Pack quantity: 4 pieces per polybag
• Category: Accessories for networks

How to use

Terminate the twisted pair cable to the LSA contacts according to the chosen wiring standard, verify the pairing and trim excess conductor. Insert the keystone module into a compatible keystone opening until it snaps into place. Connect the RJ-45 plug to the module when required and test the link for continuity and correct pairing.

Recommendations

Use appropriate insulation displacement tools for clean LSA terminations and follow cabling standards (e.g., T568A/B) for reliable network performance. Ensure the keystone opening matches standard dimensions before installation.
