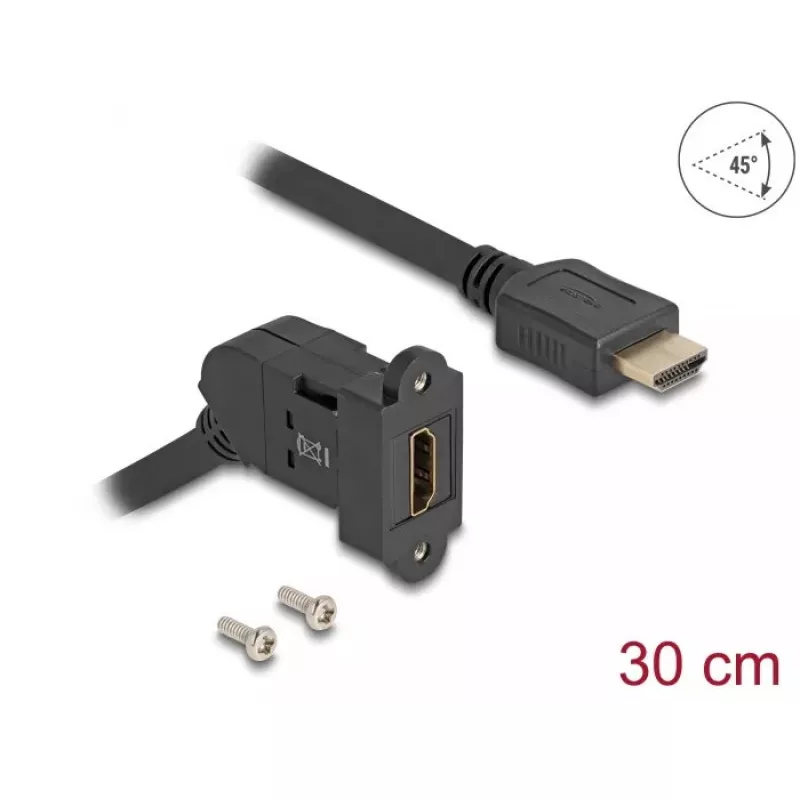

DeLOCK HDMI panel mount female 45° angled to HDMI male 30 cm cable 8K 60 Hz black

The DeLOCK HDMI panel mount combines a 45° angled female HDMI connector with a 30 cm HDMI male cable to extend or adapt HDMI connections. It supports up to 8K resolution at 60 Hz and features gold-plated contacts. The adapter is finished in black and is intended for installation on panels, housings or in switch cabinets where a compact, angled connection is required.

Advantages

The angled female-to-male configuration allows space-saving installation in confined areas and cable ducts. A mounting holder enables secure installation on panels, housings or inside switch cabinets. Gold-plated contacts improve signal transmission and help resist corrosion.

Suitable for

• Extending or adapting HDMI connections in AV equipment
• Panel or rack installations where a compact, angled HDMI outlet is needed
• Installations in tight spaces, cable ducts or behind devices
• Setups requiring support for up to 8K @ 60 Hz

Key specifications

• Cable length: 0.3 m
• Connector 1: HDMI (female, 45° angled, panel mount)
• Connector 2: HDMI (male, fixed cable)
• Resolution support: up to 8K @ 60 Hz
• Contacts: gold-plated
• Colour: Black

How to use

Install the adapter by fixing the mounting holder to a panel, housing or switch cabinet cutout, then connect the female HDMI panel connector to the corresponding HDMI plug or cable. Route the attached 30 cm HDMI cable to the target device and insert the male HDMI plug into the device’s HDMI input. Ensure connectors are fully seated and that cable routing does not strain the angled joint.

Recommendations

For reliable performance, avoid excessive bending or pulling at the cable exit and use suitable panel cutouts and fasteners for a secure mount. Confirm device compatibility with 8K @ 60 Hz and use quality HDMI cables for longer runs.
