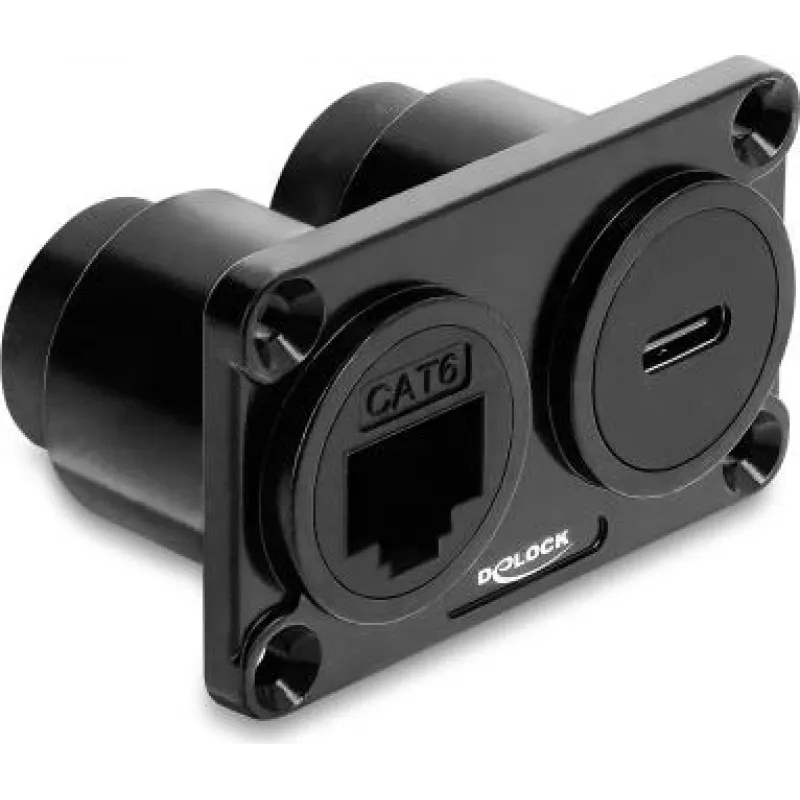

Delock Dual Panel Mount Adapter USB 10 Gbps USB Type-C Female PD 100 W + RJ45 Female Cat.6 Black

Modern workstations and wall plates often lack convenient front-panel access to high-speed data and network connections. This Delock dual built-in socket solves that by combining a USB 10 Gbps Type-C™ port with Power Delivery up to 100 W and a Cat.6 RJ45 Ethernet port in a single, clean panel-mount unit.

Who is it for

Ideal for system integrators, office furniture manufacturers, and AV professionals who need to integrate fast USB and network connectivity into desks, conference tables, racks, or custom enclosures. It’s also perfect for upgrading existing installations with a modern, high-performance connection point.

Main features

• Dual front connectors: 1x USB Type-C™ female (USB 3.2 Gen 2, 10 Gbps) with Power Delivery up to 100 W, and 1x RJ45 female (Cat.6, up to 10 Gigabit Ethernet).
• Rear connectors: 1x USB Type-C™ male and 1x RJ45 male for easy cable connection inside the panel or enclosure.
• Panel mount design with cut-out dimensions of 25.0 x 25.0 mm and included M3 screws for secure installation.
• Black plastic housing with shielding for reliable signal integrity.
• RoHS compliant, ensuring environmental safety.

Specifications

• Front connectors: 1x USB Type-C™ female, 1x RJ45 female
• Rear connectors: 1x USB Type-C™ male, 1x RJ45 male
• USB standard: USB 3.2 Gen 2
• USB data transfer rate: up to 10 Gbps
• USB Power Delivery: up to 100 W (20V / 5A)
• Ethernet standard: Cat.6
• Ethernet speed support: up to 10 Gigabit Ethernet
• Mounting type: panel mount / built-in
• Mounting cut-out dimensions: 25.0 x 25.0 mm
• Mounting screws: 2x M3 (included)
• Housing material: plastic
• Colour: black
• Shielding: yes
• RoHS compliant: yes

Tips

For optimal performance, use certified Cat.6 Ethernet cables and USB Type-C™ cables that support 100 W Power Delivery. Ensure the mounting surface is flat and the cut-out is precisely 25.0 x 25.0 mm. The included M3 screws provide a secure fit; avoid overtightening to prevent damage to the housing.
