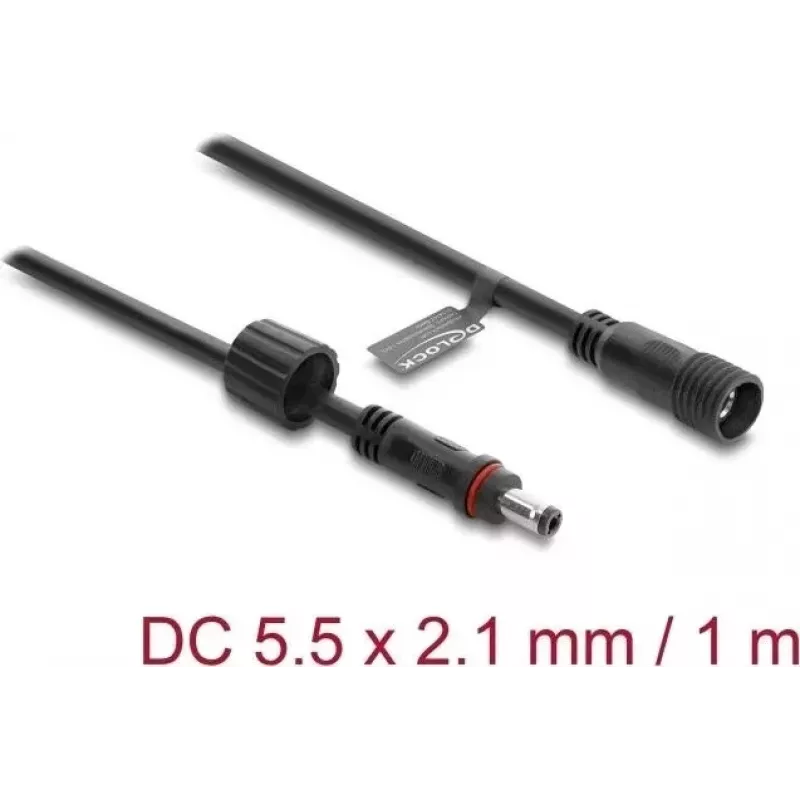

Delock DC Extension Cable 5.5 x 2.1 mm Plug to Socket with Screw Lock M12 x 1.75 mm Thread Waterproof 18 AWG, 1 m Black

This Delock DC extension cable is designed for secure and waterproof power connections in industrial and outdoor environments. It features a 5.5 x 2.1 mm DC plug to a 5.5 x 2.1 mm DC socket with an M12 x 1.75 mm screw lock mechanism, ensuring a vibration-proof connection. The cable is IP67 rated, making it resistant to dust and water immersion.

Advantages

Reliable power extension with screw lock for secure connections. Waterproof design (IP67) suitable for harsh conditions. High-quality 18 AWG copper conductors for efficient power transmission.

Suitable for

• Extending DC power cables in industrial automation
• Outdoor LED lighting and surveillance systems
• Marine and automotive applications
• Any environment requiring a waterproof and lockable connection

Key specifications

• Connector A: DC 5.5 x 2.1 mm male
• Connector B: DC 5.5 x 2.1 mm female with M12 x 1.75 mm screw lock
• Waterproof rating: IP67
• Cable gauge: 18 AWG
• Cable length: 1 meter
• Colour: Black
• Max. voltage: 36 V
• Max. current: 5 A
• Operating temperature: -20 °C to 85 °C
• Cable diameter: 4.5 mm
• Conductor material: Copper
• Number of conductors: 2-pin

Recommendations

For best performance, ensure the screw lock is fully tightened to maintain the IP67 seal. Compatible with standard 5.5 x 2.1 mm DC connectors.
