DeLOCK D-Type Module RJ45 Cat.6 female to LSA female Black 87816

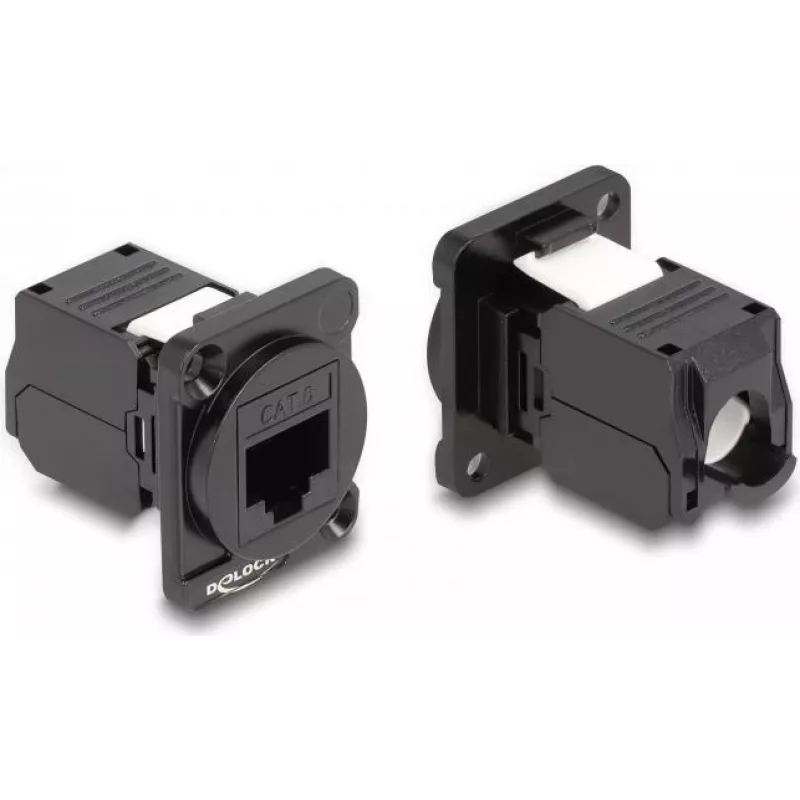

The DeLOCK D-Type Module RJ45 Cat.6 female to LSA female (model 87816) is a compact adapter designed to be mounted into panels or cases with D-type openings for XLR jacks. It provides a Cat.6 RJ45 female socket on one side and an LSA female termination on the other, enabling integration of digital network equipment into structured cabling and professional audio systems. The unit is black and has compact dimensions of approximately 35 mm (W) x 31 mm (D) x 25 mm (H).

Advantages

This DeLOCK module offers a space-saving D-type form factor for panel mounting, reliable Cat.6 RJ45 connectivity and LSA-compatible termination for structured cabling. Its compact size and standard female connectors simplify installation into existing panels or enclosures while maintaining signal integrity for digital audio and network devices.

Suitable for

• Integrating networked audio equipment into stage or studio panels
• Converting between RJ45 Cat.6 and LSA-terminated cabling
• Panel or case installations with D-type/XLR-style openings
• Structured cabling systems requiring a compact D-type adapter

Key specifications

• Brand: DELOCK
• Model / MPN: 87816
• EAN: 4043619878161
• Connectors: RJ45 Cat.6 female to LSA female
• Colour: Black
• Dimensions (approx.): 35 mm × 31 mm × 25 mm (W × D × H)
• Category: Cable interface and gender adapters

How to use

Install the module into a panel or enclosure with a compatible D-type opening (XLR-style). Secure the module according to the panel's mounting method, then connect a Cat.6 patch cable to the RJ45 female socket and terminate the other side to an LSA-compatible wiring block or vice versa. Ensure all connections are properly seated and use standard network testing tools to verify continuity and signal quality after installation.

Recommendations

For best results, use Cat.6-rated cables and termination tools, confirm compatibility with existing panel cutouts before installation, and test the installed link with a cable tester to verify Cat.6 performance.
