DeLOCK D-Sub 9 pin male to RJ45 female Assembly Kit white VGA RJ-45

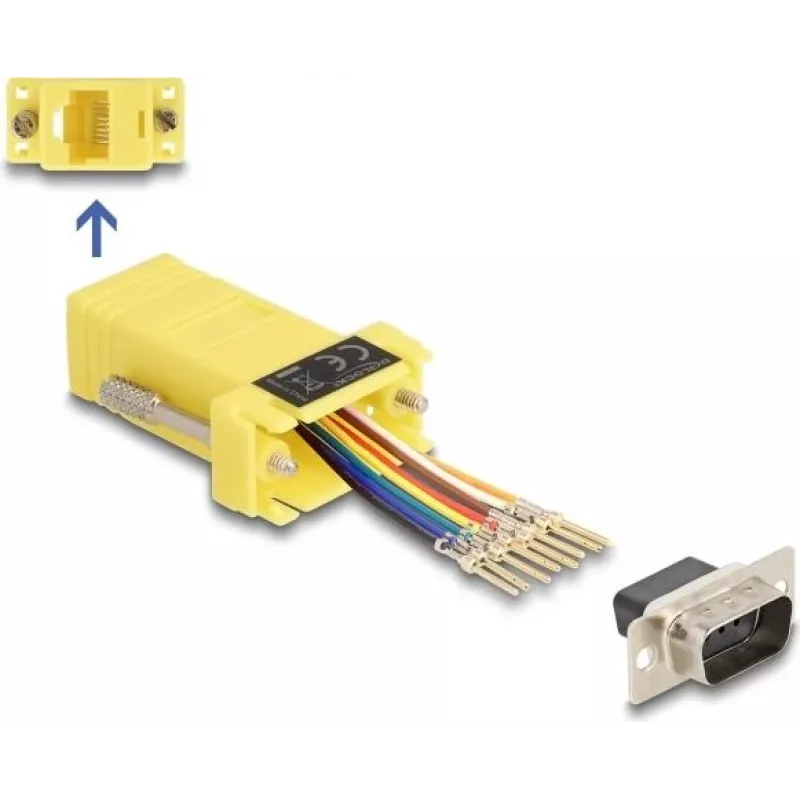

This DeLOCK D-Sub 9 pin male to RJ45 female assembly kit allows extending a serial interface using a standard Cat.5 / 5e / 6 cable. The kit provides a D-Sub 9 (VGA-style) male host connector and an RJ45 female output; the cable end is inserted into the connector and locks into the housing, enabling a customisable pin assignment for serial signal routing. The unit is compact and designed for reliable connections in installations where a D-Sub to RJ45 conversion is required.

Advantages

The assembly kit supports individual pin assignment via a standard Ethernet cable, offers a compact footprint (34 mm × 50 mm × 16 mm), and is supplied in a simple polybag. Its RJ45 female output simplifies cabling for remote serial connections while the D-Sub 9 male interface maintains compatibility with devices using a 9‑pin serial port.

Suitable for

• Extending RS‑232/serial connections over Cat5/5e/6 cable
• Custom wiring or field-terminated serial links
• AV or control installations where D‑Sub to RJ45 adapters are used
• Repair or replacement of D‑Sub to RJ45 patch points

Key specifications

• Brand: DELOCK
• Model / MPN: 67104
• EAN: 4043619671045
• Connector A: D-Sub 9 pin male (VGA-style)
• Connector B: RJ45 female
• Housing colour: yellow (assembly kit white indicated in product name)
• Dimensions (W×D×H): 34 mm × 50 mm × 16 mm
• Packaging: polybag
• Made in China

How to use

Prepare a Cat.5 / 5e / 6 cable with a stripped end, insert individual conductors into the desired RJ45 contacts of the adapter and press until each wire locks into the housing. Connect the D-Sub 9 male to the host device and mount or secure the adapter as required. Verify pin assignment and continuity with a multimeter before placing the link into operational use.

Recommendations

Use suitable cable shielding and grounding practices for installations that require noise immunity. Confirm the correct RS‑232 or serial signal mapping between devices before finalising the wiring to avoid damage to connected equipment.
