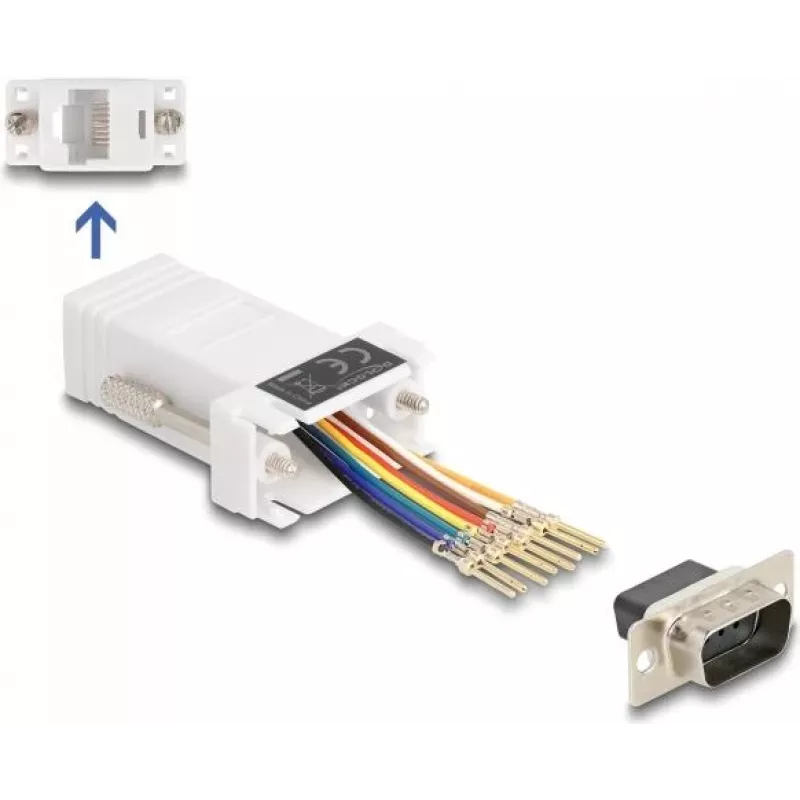

DeLOCK D-Sub 9 pin male to RJ45 female Assembly Kit white VGA RJ-45

This DeLOCK adapter converts a D-Sub 9 pin male (VGA-style) connection to an RJ45 female socket, allowing a serial interface to be extended using a Cat.5 / 5e / 6 cable. The compact assembly kit has a white housing and is intended for applications where an individual pin assignment is required; the cable conductor is inserted into the desired hole of the RJ45 connector and locked into the housing.

Advantages

The assembly kit supports flexible pin assignment over standard Ethernet cable types (Cat.5 / 5e / 6), enabling customized serial wiring. Its small footprint (34 × 50 × 16 mm) and simple mechanical locking allow quick installation. The adapter provides a VGA-style D-Sub 9 male host interface and an RJ45 female output, suitable for use where a compact, cable-based serial extension is needed.

Suitable for

• Extending RS-232 or other serial connections over Cat.5 / 5e / 6 cable
• Custom pin mapping for remote serial devices
• Compact installations where space is limited

Key specifications

• Brand: DELOCK
• Model / MPN: 67102
• Type: D-Sub 9 pin male to RJ45 female assembly kit
• Color: White
• Dimensions: 34 mm (W) × 50 mm (D) × 16 mm (H)
• Connector: D-Sub 9 pin (male) to RJ45 (female)
• Cable types supported: Cat.5 / Cat.5e / Cat.6
• Origin: Made in China

How to use

Insert the conductors of a Cat.5 / 5e / 6 cable into the corresponding holes of the RJ45 female connector according to the desired pin assignment. Push each conductor into the hole until it locks into the housing. Connect the D-Sub 9 male to the host device. Verify the pin mapping and signal continuity before putting the connection into service.

Recommendations

Choose cable type according to signal and distance requirements (Cat.5e or Cat.6 for improved performance). Confirm pin assignments with device documentation and test continuity with a multimeter or cable tester after assembly.
