DeLOCK D-Sub 25 pin female to RJ45 female Assembly Kit yellow VGA RJ-45

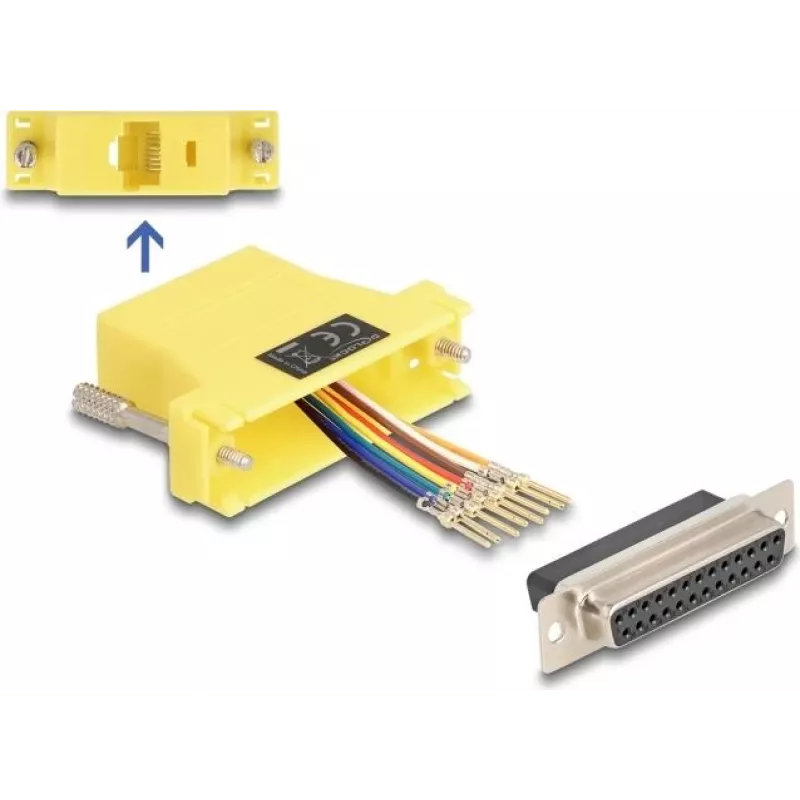

This adapter from DeLOCK converts a D-Sub 25 pin female connector to an RJ45 female connector, enabling the extension of a serial or VGA interface using an optional Cat.5 / 5e / 6 cable. The housing is yellow and the compact assembly kit includes the connector parts needed to create a custom pin assignment by inserting and locking individual cable wires into the connector.

Advantages

The kit allows individual pin assignment so you can map signals as required. Using a standard Cat.5 / 5e / 6 cable provides flexible cable routing and easy sourcing of cabling. The compact housing and simple locking mechanism make assembly straightforward and suitable for custom installations.

Suitable for

• Extending a D-Sub 25 serial or VGA connection over Cat5/5e/6 cable
• Custom pin mapping or signal rerouting
• Field repairs or on-site cable assembly

Key specifications

• Connector A: D-Sub 25 pin, female
• Connector B: RJ45, female
• Compatible cable: Cat.5 / Cat.5e / Cat.6 (optional)
• Color: yellow
• Manufacturer: DELOCK
• MPN: 67119, EAN: 4043619671199
• Dimensions: 40 mm (W) x 55 mm (D) x 16 mm (H)
• Package: polybag, quantity: 1

How to use

Prepare a Cat.5 / 5e / 6 cable by stripping the outer jacket and exposing the individual conductors. Insert each conductor into the desired hole of the RJ45-style adapter according to your required pin assignment, then press until the conductor locks into the housing. Connect the D-Sub 25 side to the corresponding device port. Verify continuity and correct pin mapping with appropriate tools before placing the assembly into permanent use.

Recommendations

Use shielded cable and proper grounding if sensitive video or serial signals are present. Check pinout diagrams for the connected devices to avoid incorrect wiring. For long runs or high-frequency signals, choose Cat.6 cable to reduce crosstalk and signal loss.
