DeLOCK D-Sub 25 pin female to RJ45 female Assembly Kit white VGA RJ-45

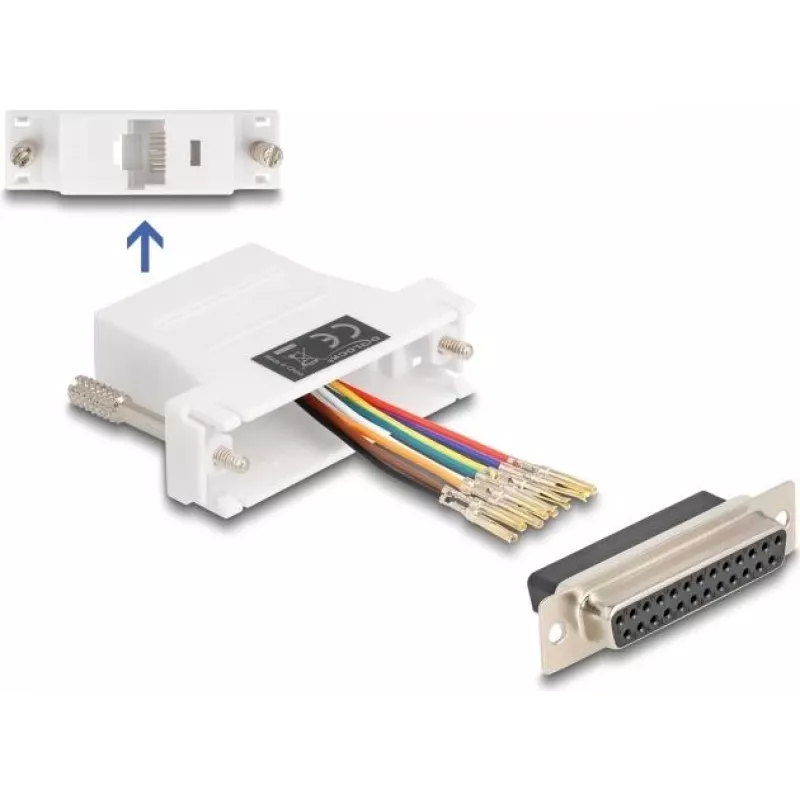

This DeLOCK D-Sub 25 pin female to RJ45 female assembly kit allows extending a serial interface using a standard Cat.5 / 5e / 6 cable. The compact white adapter provides a VGA (D-Sub 25) host interface and an RJ45 output, enabling customized pin assignment by inserting the cable conductor into the desired connector hole and locking it into the housing.

Advantages

The assembly kit supports the use of widely available Cat.5/5e/6 cables, offers a compact form factor (40 × 55 × 16 mm) and a simple, tool-free way to set pin assignments individually. Its modular design allows flexible cabling for networking and data transfer applications while keeping a standard D-Sub 25 female and RJ45 female interface.

Suitable for

• Extending a serial or parallel connection using Cat.5/5e/6 cable
• Custom pin-mapping for legacy equipment with D-Sub 25 interface
• Networking and data transfer setups requiring an RJ45 termination

Key specifications

• Brand: DELOCK
• Model / MPN: 67117
• EAN: 4043619671175
• Connector A: D-Sub 25 pin female (VGA host interface)
• Connector B: RJ45 female
• Color: White
• Dimensions: 40 mm (W) × 55 mm (D) × 16 mm (H)

How to use

Prepare a Cat.5 / 5e / 6 cable by exposing the individual conductors. Insert each conductor into the corresponding hole of the RJ45 housing according to the required pin assignment. Push the cable end into the adapter until it locks into the housing. Verify the connection and secure the assembly in place. No additional tools are required for conductor insertion and locking.

Recommendations

For reliable signal transmission, use quality Cat.5/5e/6 cables and verify pin assignment before connecting equipment. Avoid excessive bending at the adapter and ensure the cable is fully seated and locked in the housing.
