DeLOCK D-Sub 25 pin female to RJ45 female Assembly Kit red VGA RJ-45

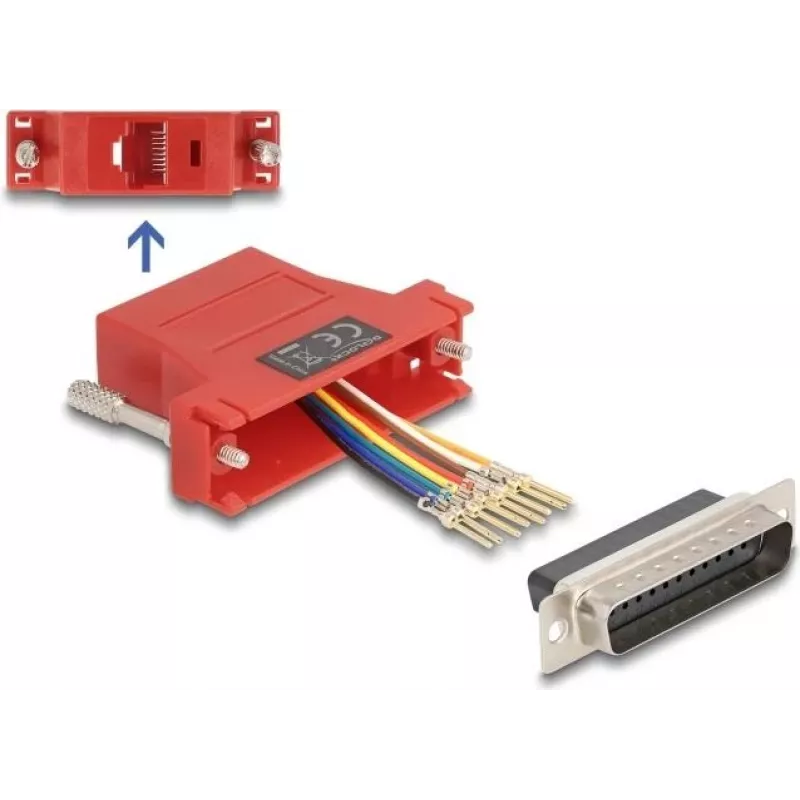

The DeLOCK D-Sub 25 pin female to RJ45 female assembly kit (red) enables expansion of a serial interface using an optional Cat.5/5e/6 cable. It provides a VGA (D-Sub 25) host connector and an RJ45 output connector, allowing users to configure the pin assignment individually by inserting the cable conductor into the chosen contact and locking it into the housing. The compact assembly measures 40 mm × 55 mm × 16 mm and is supplied in a polybag; the product is manufactured in China.

Advantages

This assembly kit supports flexible pin assignment via standard Cat.5/5e/6 cabling, offers a compact footprint for space-constrained installations, and includes a secure locking mechanism to hold the cable conductors in place. The D-Sub 25 female to RJ45 female configuration provides compatibility with devices using a 25-pin serial/VGA-style interface while using economical network cable for wiring.

Suitable for

• Extending or rerouting a 25-pin serial (D-Sub) connection over Cat.5/5e/6 cable
• Custom serial or control wiring where individual pin assignment is required
• Laboratory, industrial or audio/video setups that use D-Sub 25 interfaces

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 67115
• Product type: D-Sub 25 pin female to RJ45 female assembly kit
• Cable compatibility: Cat.5 / Cat.5e / Cat.6
• Connector A: D-Sub 25 pin female (VGA-style)
• Connector B: RJ45 female
• Dimensions: 40 mm (W) × 55 mm (D) × 16 mm (H)
• Colour: Red
• Packaging: Polybag
• Made in: China
• EAN: 4043619671151

How to use

Strip the Cat.5/5e/6 cable to expose individual conductors, route each conductor to the desired contact position on the RJ45 connector assembly, and insert the conductor into the corresponding hole. Ensure each conductor locks into the housing. After all conductors are secured, verify continuity and pinout with a tester before connecting to equipment. Mount the assembled connector to the device or cable run as required.

Recommendations

Use a suitable wire stripper and insertion tool to avoid damage to conductors. Verify the pin assignment and test continuity before powering connected devices. For permanent or vibration-prone installations consider additionally securing the cable with strain relief or cable ties.
