DeLOCK D-Sub 15 pin female to RJ45 female Assembly Kit yellow VGA RJ-45

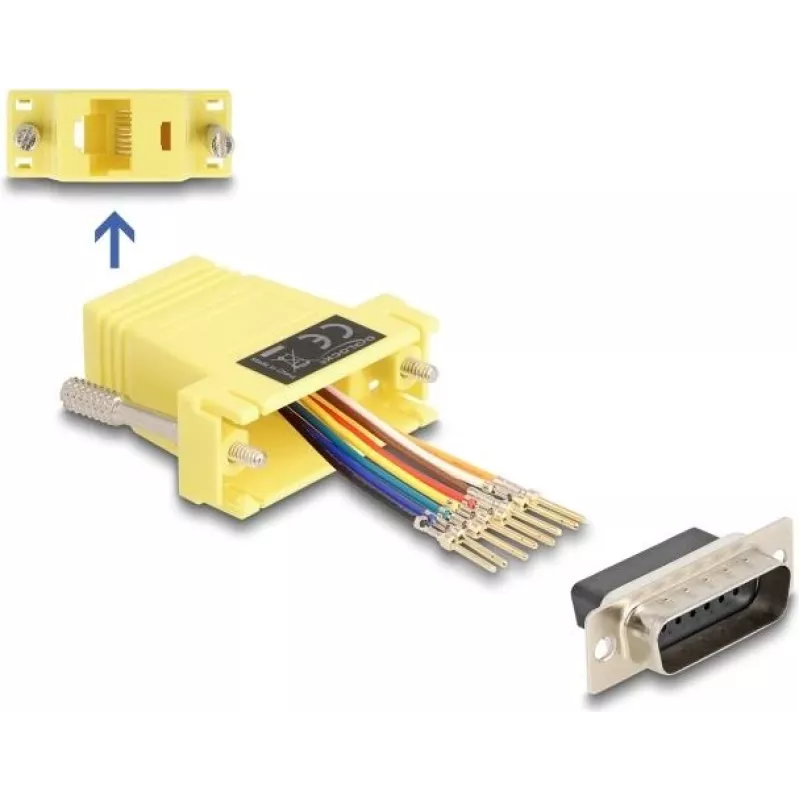

The DeLOCK D-Sub 15 pin female to RJ45 female assembly kit in yellow provides a simple way to extend or rewire a VGA/serial-style D-Sub connection using a Cat.5/5e/6 cable. The kit features a D-Sub 15 pin (female) host interface and an RJ45 (female) output interface, allowing you to set individual pin assignments by inserting the cable wires into the desired connector holes and locking them into the housing. The compact design is intended for reliable connections and flexible installation in environments where a custom pinout is required.

Advantages

This assembly kit enables flexible pin assignment for serial or VGA-style signals over standard Ethernet cable, reducing the need for long custom cables. The RJ45 female output accepts Cat.5 / 5e / 6 cables and the D-Sub 15 female connector provides compatibility with devices using the common 15-pin interface. Its simple plug-and-lock assembly supports quick on-site wiring and modification without specialized tools.

Suitable for

• Extending VGA or DB15 serial-style connections using Cat.5/5e/6 cable
• Custom wiring and pin mapping for legacy equipment
• On-site repairs or modifications of D-Sub 15 connections
• Applications requiring a removable RJ45-based link with configurable pinout

Key specifications

• Brand: DELOCK
• Model / MPN: 67110
• EAN: 4043619671106
• Connector A: D-Sub 15 pin female
• Connector B: RJ45 female
• Cable type: Cat.5 / 5e / 6 (optional, not included)
• Color: yellow

How to use

Prepare a Cat.5 / 5e / 6 cable by stripping the outer sheath to expose the individual conductors. Insert each conductor into the chosen hole of the RJ45 assembly according to the required pin assignment, then lock the wires into the housing as described in the kit instructions. Finally, connect the D-Sub 15 female to the host device and the RJ45 to the corresponding cable or adapter. Verify continuity and correct mapping before applying signals.

Recommendations

Use appropriate cable shielding and grounding for applications sensitive to interference. Verify pin mapping against device documentation and test connections with a multimeter or cable tester before use. The kit does not include the Cat.5/5e/6 cable; choose cable quality and category suitable for the intended signal type and distance.
