DELOCK D-Sub 15 pin female to RJ12 female assembly kit, blue

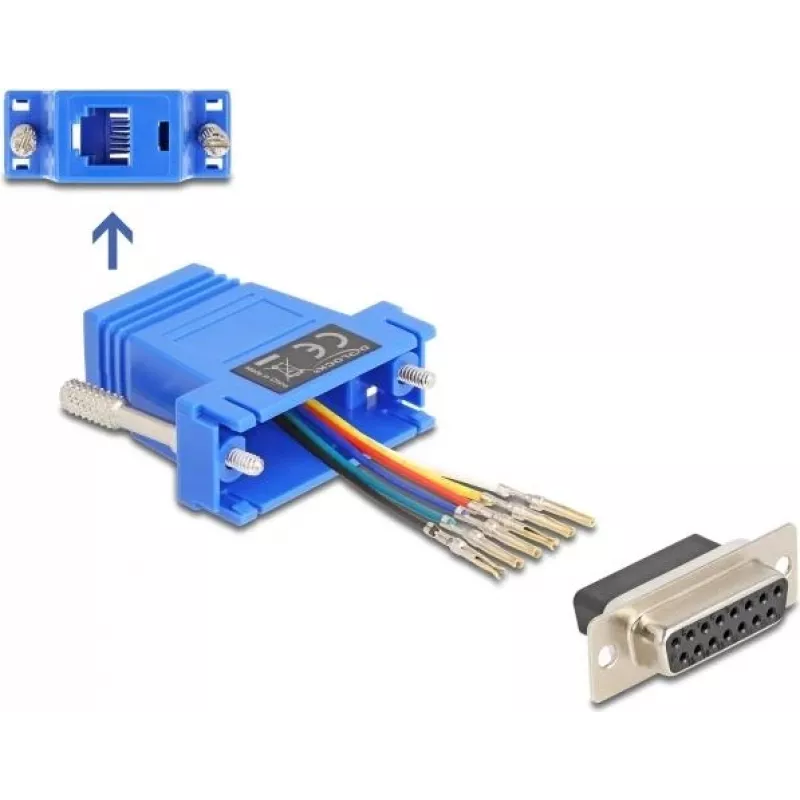

Assembly kit for adapting a 15‑pin D‑Sub female (VGA‑style) connector to an RJ12 female connector. The DELOCK D-Sub 15 pin female to RJ12 female assembly kit, blue, is designed for custom cable assemblies, electronics prototyping and field repairs where a D‑Sub 15 interface must be connected to a 6‑position RJ12 line. The adapter allows individual assignment of the D‑Sub contacts and provides snap‑in sockets for reliable contact.

Advantages

The kit supports flexible pin assignment on the D‑Sub 15 interface, enabling custom wiring and signal mapping. Sockets click into the D‑Sub housing to secure contacts while allowing easy insertion and removal during assembly. Its compact form is space‑efficient and suitable for on‑site repairs or bespoke cable projects. The blue colour helps with visual identification in multi‑cable setups.

Suitable for

• Custom cable assemblies and cable repairs
• Electronics prototyping and development
• Field service and onsite diagnostics
• Connecting serial or analogue D‑Sub 15 interfaces to telephone/ISDN/RJ12 lines

Key specifications

• Connector A: 15‑pin D‑Sub female (assembly style)
• Connector B: RJ12 female (6‑position)
• Colour: blue
• Design: insertable contacts with snap‑in retention
• Intended use: bespoke cabling, prototyping and repair work

How to use

Assign the required signals to the D‑Sub 15 contact positions according to your wiring diagram. Insert the contacts into the D‑Sub housing until they click into place to ensure reliable contact. Terminate the RJ12 side with the corresponding 6‑position cable or jack and verify continuity and signal mapping before putting the assembly into service. Follow standard safety precautions when working with powered equipment and ensure connectors are seated properly.

Recommendations

For reliable operation, test the assembled cable for continuity and correct pin assignment with a multimeter or cable tester. Use the kit for low‑voltage signal connections; avoid using it where high current or mains voltage is present. Store unused components in a dry environment to prevent corrosion.
