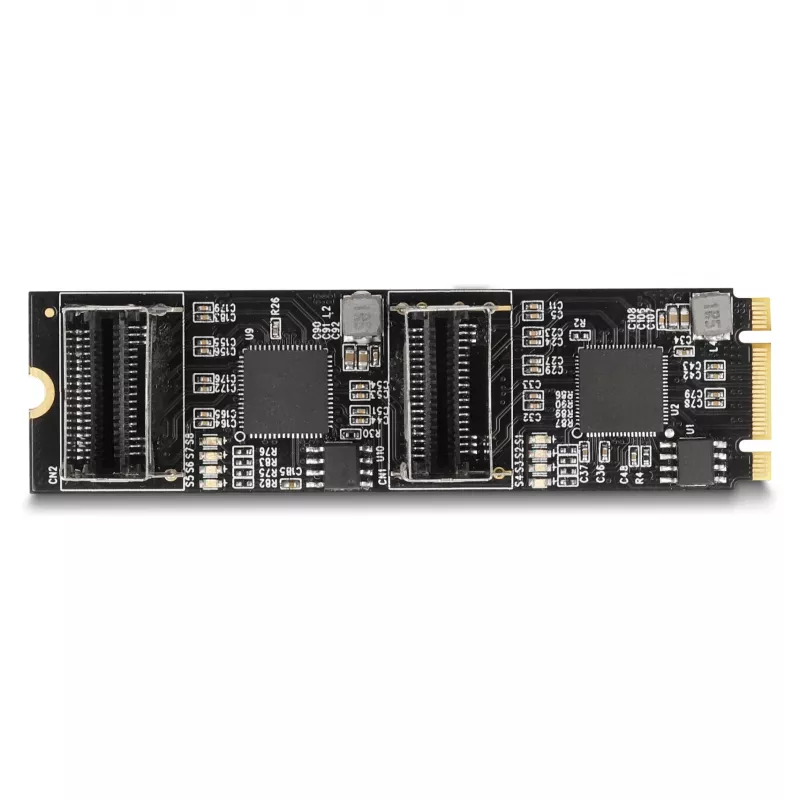

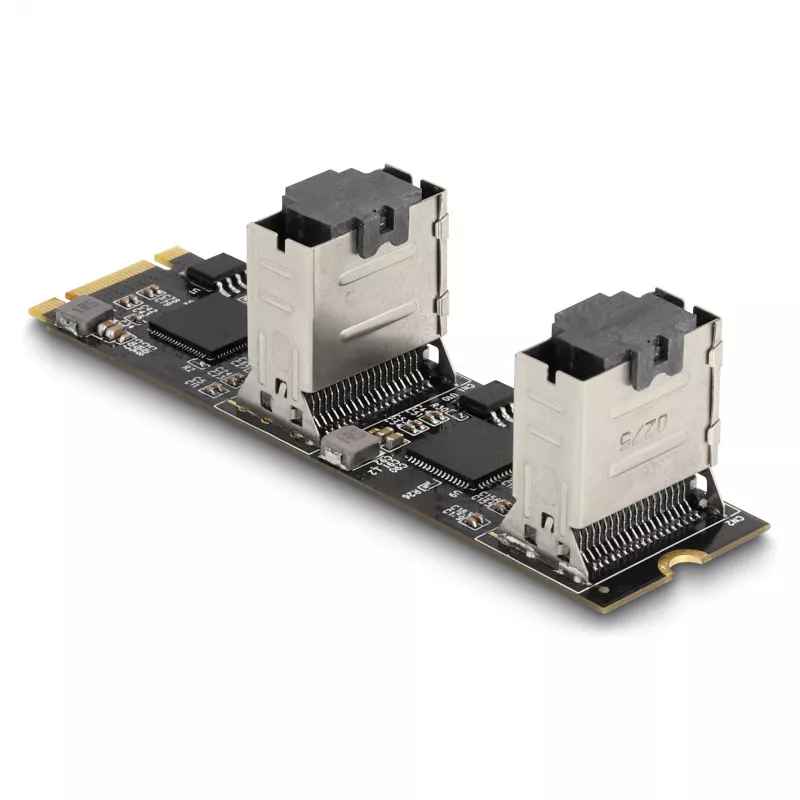

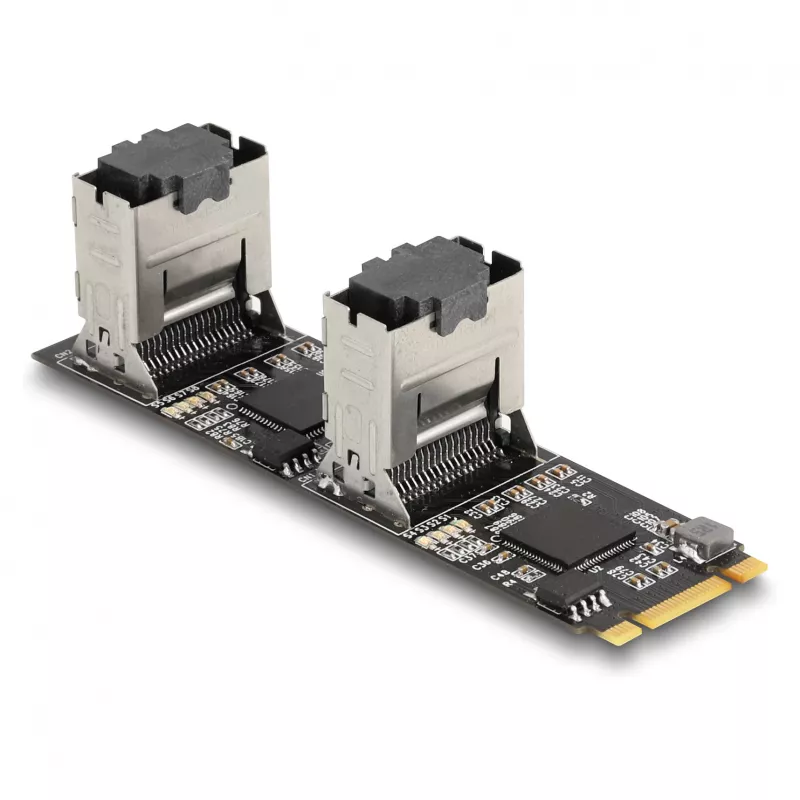

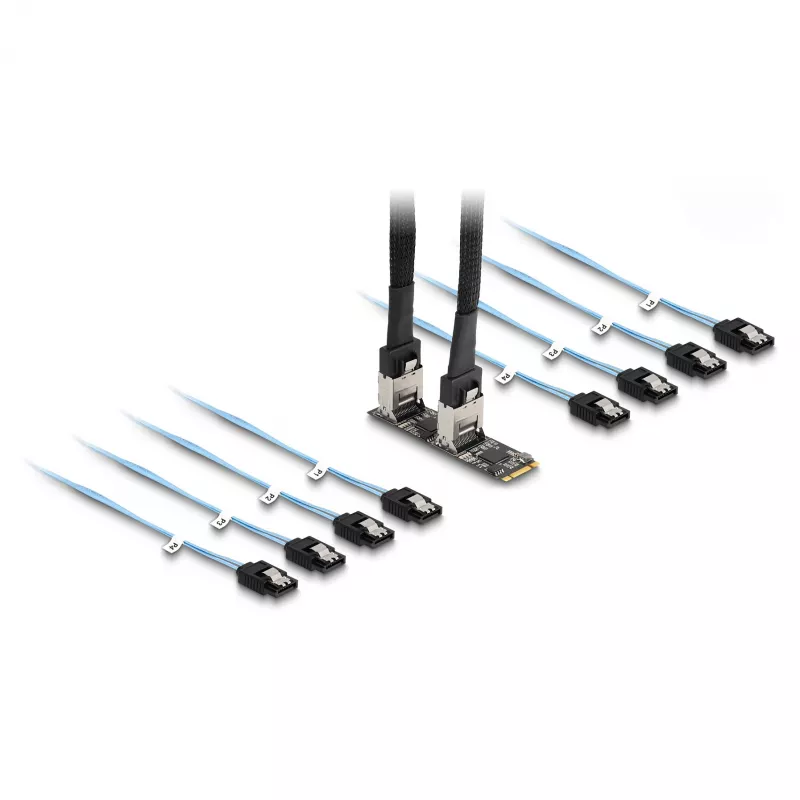

DeLOCK Converter M.2 2280 Key B+M male to 8 x SATA

The DeLOCK Converter M.2 2280 Key B+M male to 8 x SATA expands a system’s storage connectivity by providing eight SATA ports via an M.2 2280 Key B+M interface. It uses a JMicron chipset and supports common operating systems including Windows 10 and Linux Kernel 5.15, enabling connection of SSDs, hard drives, optical drives and other SATA devices within a compact internal form factor.

Advantages

The converter offers eight SATA outputs from a single M.2 host interface, allowing multiple SATA devices to be used simultaneously. Its JMicron chipset provides compatibility with a range of operating systems, and the compact internal design simplifies installation into desktop or server systems where an M.2 2280 Key B+M slot is available.

Suitable for

• Adding multiple 2.5" or 3.5" SATA SSDs/HDDs to a system
• Connecting SATA optical drives (DVD/Blu‑ray) through an M.2 slot
• Expanding storage ports in compact desktops or servers with M.2 Key B+M slots

Key specifications

• Brand: DELOCK
• Model: Converter M.2 2280 Key B+M male to 8 x SATA (MPN 64211)
• Host interface: M.2 2280 Key B+M (male)
• Output interface: 8 × SATA
• Chipset: JMicron
• Internal device: Yes
• Operating system support: Windows 10, Linux Kernel 5.15
• EAN: 4043619642113

How to use

Install the converter into an available M.2 2280 Key B+M slot on the motherboard, secure it according to the board manufacturer’s instructions and connect SATA devices to the converter’s SATA ports using standard SATA cables and power connectors from your power supply. After physical installation, boot the system and verify that connected drives are recognized by the operating system; install any required drivers if prompted.

Recommendations

Use within desktop or server systems that provide sufficient power and cooling for multiple SATA drives. Ensure the motherboard M.2 slot supports the required host functions and check for available power connectors for each connected SATA device.
