DeLOCK Combo Converter for M.2 NVMe PCIe or SATA SSD USB 3.2 Gen 2 Black

This Delock combo converter enables installation of an M.2 PCIe NVMe or SATA M.2 SSD in sizes 2280, 2260, 2242 and 2230 and connects to a PC or laptop via USB 3.2 Gen 2. The adapter uses a Realtek RTL9210B chipset and supports data transfer rates up to 10 Gbit/s. Its compact, enclosure-free board design and USB-A connection make it suitable for quick testing and direct access to drives.

Advantages

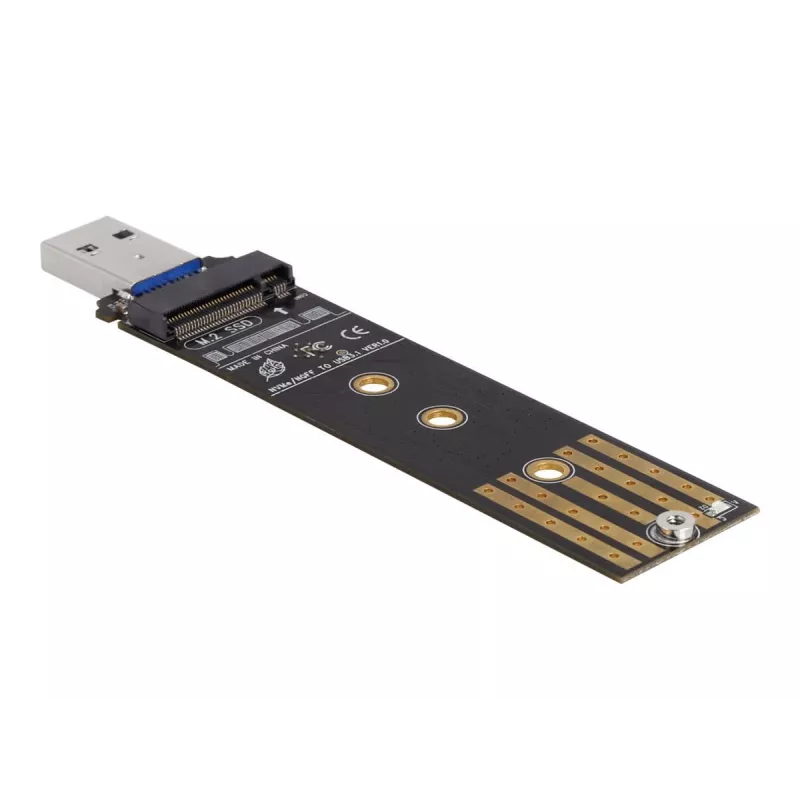

The converter accepts both NVMe (PCIe) and SATA M.2 SSDs in a single device, with automatic recognition of the installed module by the chipset. USB 3.2 Gen 2 (10 Gbit/s) provides high-speed data transfer, and the open-board layout allows direct installation and easy accessibility without an external enclosure. The compact black housing and standard USB-A connector ensure broad compatibility with desktop and laptop systems.

Suitable for

• Testing and benchmarking M.2 NVMe (PCIe) SSDs
• Testing and benchmarking M.2 SATA SSDs
• Data recovery and direct file access from bare M.2 modules
• Temporary USB connection of M.2 drives to PCs or laptops

Key specifications

• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Supported interfaces: M.2 PCIe (NVMe) and M.2 SATA
• Host interface: USB 3.2 Gen 2 (10 Gbit/s) via USB-A
• Controller: Realtek RTL9210B
• Compatible OS: Windows 10, Windows 11, Windows 8.1
• Dimensions: 22 mm x 110 mm x 6 mm
• Colour: Black

How to use

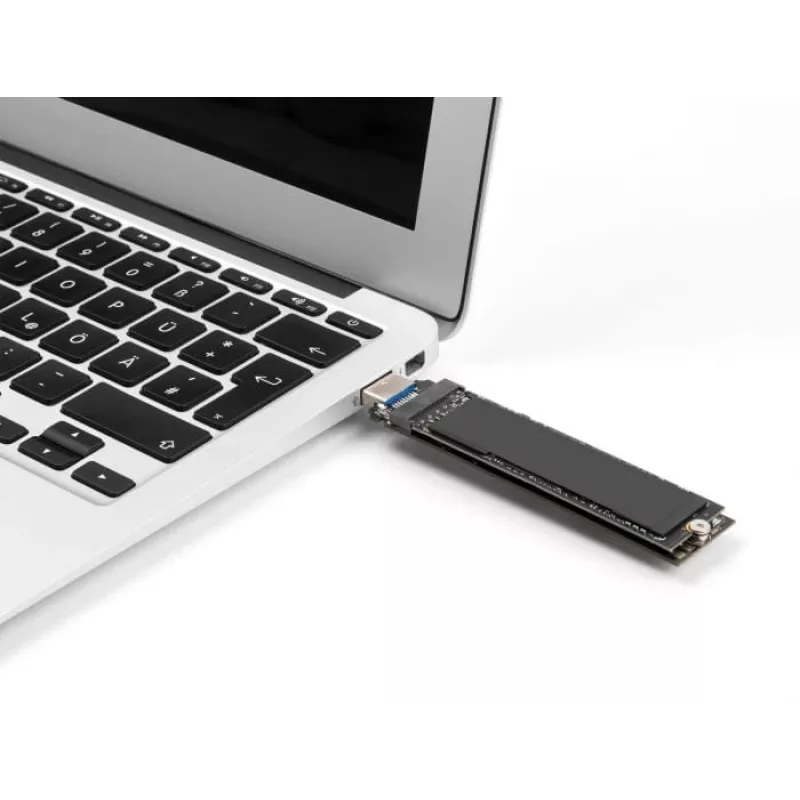

Place the M.2 SSD (NVMe or SATA) into the appropriate M.2 slot and secure it with the corresponding standoff for the selected module length (2280, 2260, 2242 or 2230). Connect the converter to your computer using the included USB-A cable. The Realtek RTL9210B chipset will automatically detect the drive; once the OS recognises the device, it is ready for use for file transfer, benchmarking or recovery tasks.

Recommendations

For testing and temporary connections, use the converter without an enclosure and handle the bare SSD and board carefully to avoid electrostatic discharge or mechanical damage. Ensure the drive is supported by your operating system and use a USB 3.2 Gen 2 port for maximum performance.
