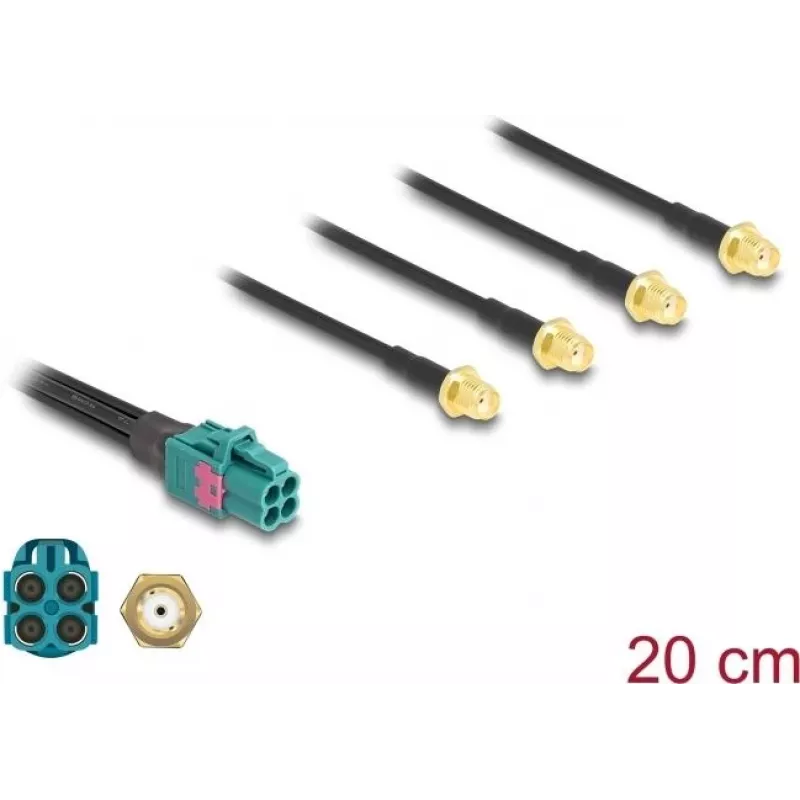

Delock Cable Mini FAKRA Z Female Quad to 4 x SMA Male 0.2 m RG-174 90283

This Delock adapter cable stands out by converting a single quad Mini FAKRA Z female connector into four separate SMA male connectors, enabling multi-channel RF signal distribution in a compact 0.2 m length. It is built with RG-174 coaxial cable for flexible routing in tight automotive and RF environments.

Highlights

• Connector A: 1 x Mini FAKRA Z female (quad, 4 channels)
• Connector B: 4 x SMA male
• Cable length: 0.2 m
• Impedance: 50 Ohm
• Cable type: RG-174
• Colour: Black

In daily use

The neutral Z coding and quad configuration make this cable suitable for GPS, GSM, WLAN, Bluetooth, and automotive RF applications. The 2.7 mm diameter RG-174 cable offers a balance of flexibility and performance, with attenuation of 1.5 dB per meter at 1.5 GHz. Operating temperature range is -10 °C to 60 °C.

Full specifications

• Cable diameter: 2.7 mm
• FAKRA code: Z (neutral)
• Pin assignment: Mini FAKRA Pin 1 to SMA 1, Pin 2 to SMA 2, Pin 3 to SMA 3, Pin 4 to SMA 4
• Attenuation: 1.5 dB/m @ 1.5 GHz
• Operating temperature: -10 °C to 60 °C
• Connector A gender: Female
• Connector B gender: Male
• Number of Connectors A: 1
• Number of Connectors B: 4

Final note

Ideal for splitting a quad Mini FAKRA signal into four individual SMA connections in RF and automotive setups.
