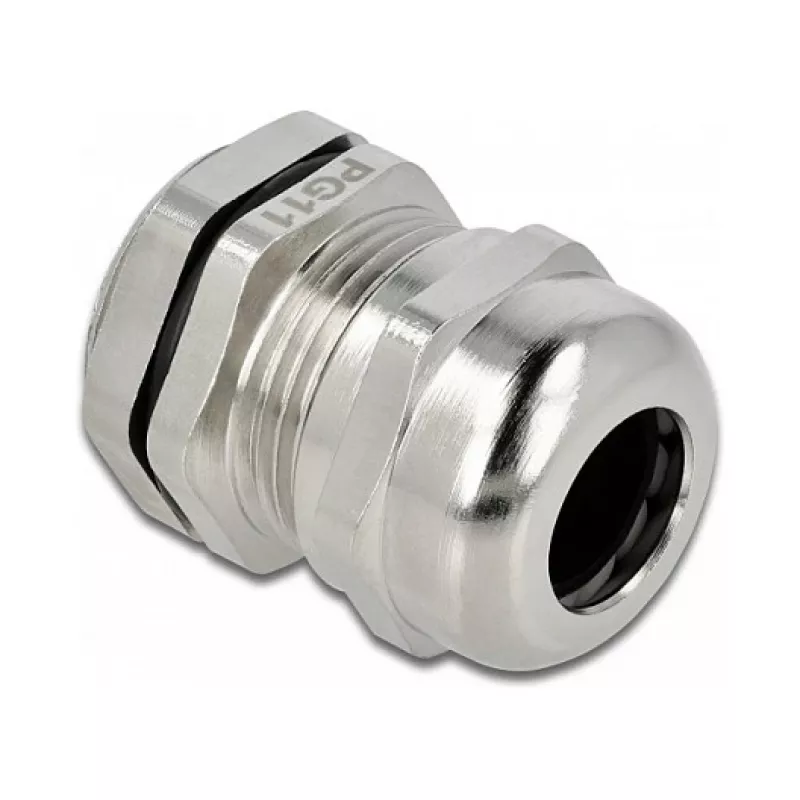

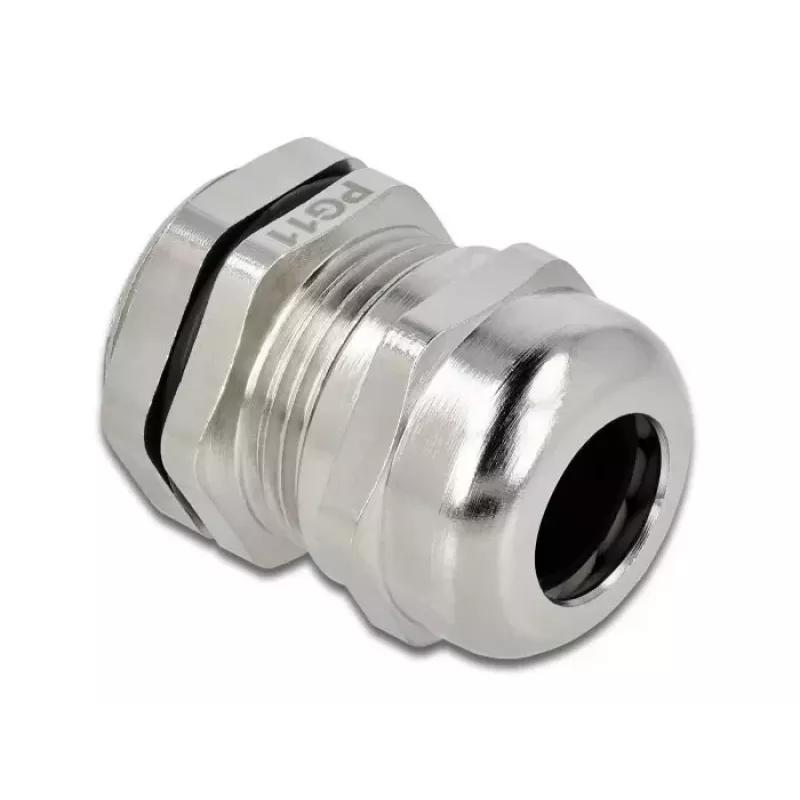

Delock Cable Gland PG11 Metal

The Delock Cable Gland PG11 Metal is a high-quality industrial cable entry solution designed for secure and reliable cable management. Manufactured from nickel-plated brass, this cable gland offers excellent corrosion resistance and durability, making it ideal for demanding environments. With an IP68 protection rating, it provides effective sealing against dust and water ingress, ensuring long-lasting performance in electrical enclosures, junction boxes, and industrial applications.

Advantages

Robust nickel-plated brass construction ensures longevity and resistance to corrosion. The PG11 thread standard (Panzergewinde) provides a secure fit, while the integrated strain relief and vibration-resistant design protect cables from mechanical stress. Easy screw-in mounting simplifies installation, and the wide operating temperature range (-40 °C to 100 °C) allows use in extreme conditions.

Suitable for

• Industrial electrical enclosures and junction boxes
• Automation and control systems
• Outdoor and harsh environment installations
• Machinery and equipment requiring reliable cable entry

Key specifications

• Thread Size: PG11
• Material: Nickel-plated Brass
• Protection Class: IP68
• Cable Diameter Range: 5 - 10 mm
• Operating Temperature: -40 °C to 100 °C
• Thread Length: 9 mm
• Overall Length: 30 mm
• Wrench Size: 22 mm
• Colour: Silver
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Certification: RoHS Compliant

Recommendations

For optimal performance, ensure the cable diameter is within the specified range (5-10 mm) and tighten the gland to the recommended torque. Suitable for use with standard PG11 threaded openings.
