DeLOCK 89915 Wire Connector DC Black Nickel 1.06 cm Outer Diameter

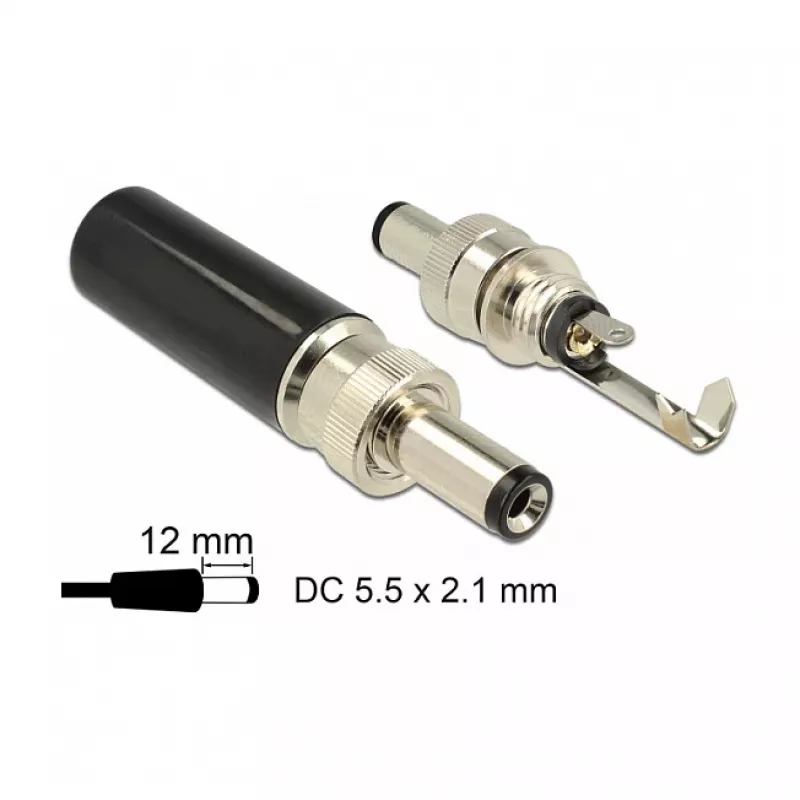

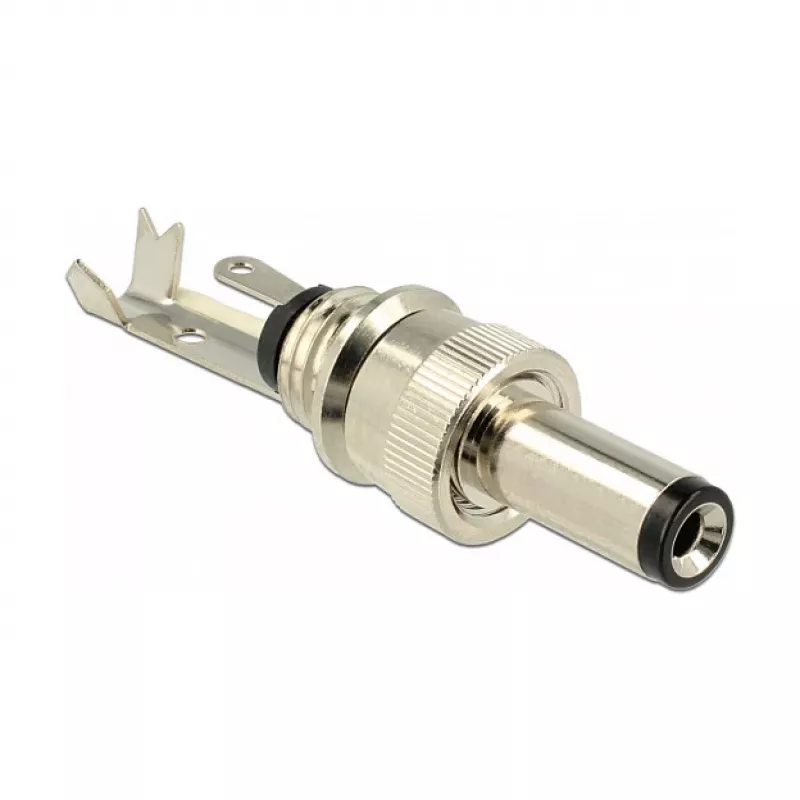

This DC connector by Delock is designed for soldering directly to a cable and to mate with devices that use a 5.5 x 2.1 mm DC jack. The plug uses a screw-type construction for a secure fit with compatible Delock DC jacks such as item 89911. The housing features a black and nickel finish and the connector has an outer diameter of 1.06 cm with a depth of 41 mm.

Advantages

The screw-type connector ensures a firm mechanical and electrical connection when paired with matching 5.5 x 2.1 mm DC jacks. The metal finish (black and nickel) provides durability and improved wear resistance. Its design for soldering to cable allows for custom cable assemblies and direct integration into projects or repairs.

Suitable for

Key specifications

How to use

Strip the cable to the appropriate length, tin the conductor ends and solder them to the connector’s internal terminals according to polarity. Assemble the screw-type housing over the soldered connection and tighten the screw mechanism to secure the plug. Verify the connection for correct polarity and continuity before applying power.

Recommendations

Use with devices and jacks specified for 5.5 x 2.1 mm DC connectors. Ensure proper polarity when soldering and test the assembled cable for shorts and continuity. For long-term outdoor or high-moisture applications, consider additional strain relief and sealing.
