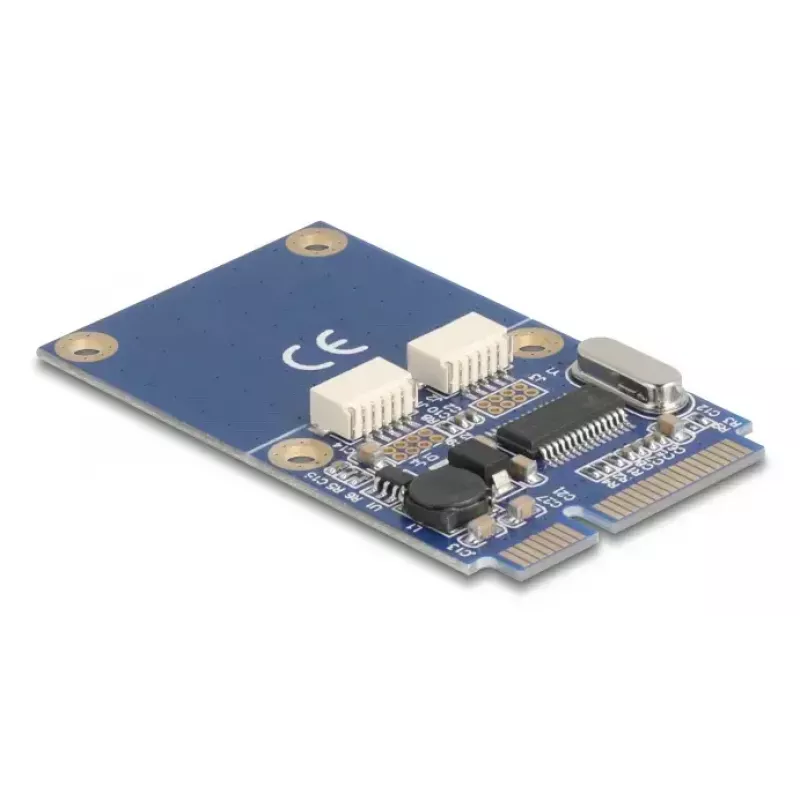

DeLOCK 64346 Internal USB 2.0 Adapter Mini PCI Express Male

The DeLOCK 64346 Internal USB 2.0 Adapter Mini PCI Express Male expands a system's internal connectivity by providing two USB 2.0 Type-A female ports via a Mini PCIe male connector. It is designed for installation in Mini PCIe slots and supports a maximum data transfer rate of 0.48 Gbit/s. The adapter has perforations that allow the board length to be shortened from full size to half size to fit different system form factors.

Advantages

This adapter adds two internal USB 2.0 Type-A ports without requiring an external bracket, uses the Mini PCIe interface for direct motherboard integration, and supports standard USB 2.0 transfer rates up to 0.48 Gbit/s. The perforated design enables flexible installation by allowing conversion from full-size to half-size card length.

Suitable for

• Adding internal USB ports in small form factor PCs or embedded systems
• Connecting internal USB devices such as card readers, front-panel hubs or internal peripherals
• Upgrading systems with available Mini PCIe slots but limited external expansion options

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 64346
• EAN: 4043619643462
• Interface: Mini PCI Express male
• Ports: 2 × USB 2.0 Type-A female (internal)
• Maximum data rate: 0.48 Gbit/s (USB 2.0)
• Card sizes supported: full size, can be shortened to half size via perforation

How to use

Insert the adapter into an available Mini PCIe slot on the motherboard ensuring proper orientation of the male connector. If needed, shorten the card to half size at the perforation before installation to fit the target system. Secure the board according to the system's mounting method and route connected USB device cables to the internal Type-A ports. Ensure the system is powered off while installing or removing the adapter.

Recommendations

Install or remove the adapter only with the system powered down to avoid electrical damage. Verify compatibility of internal USB devices and check that the Mini PCIe slot supports USB functionality if required by the host system.
