DeLOCK 19 inch Patch Panel 24 port Cat.5e 1U coloured RJ-45

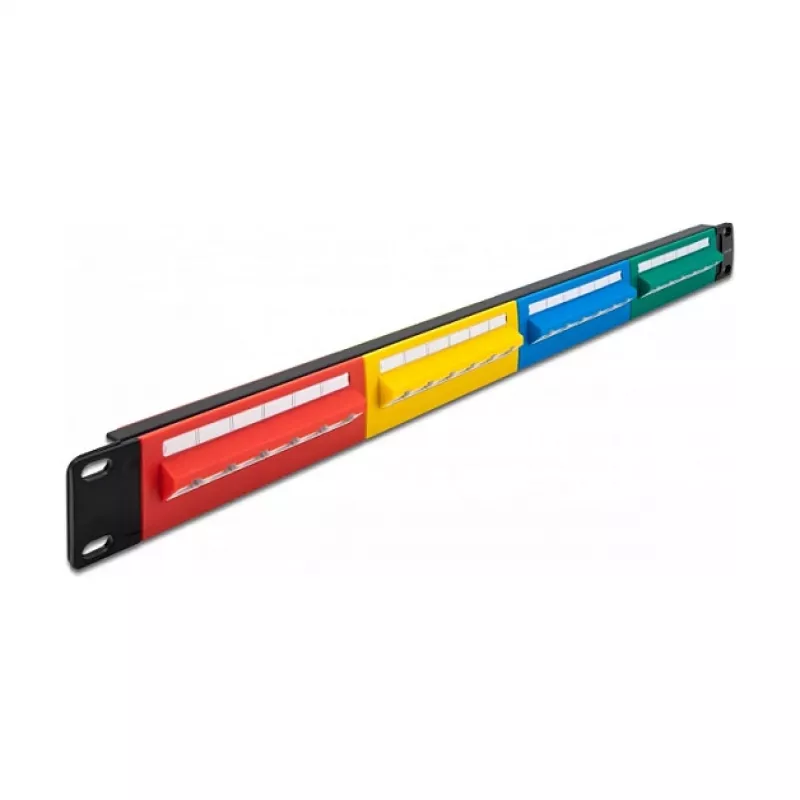

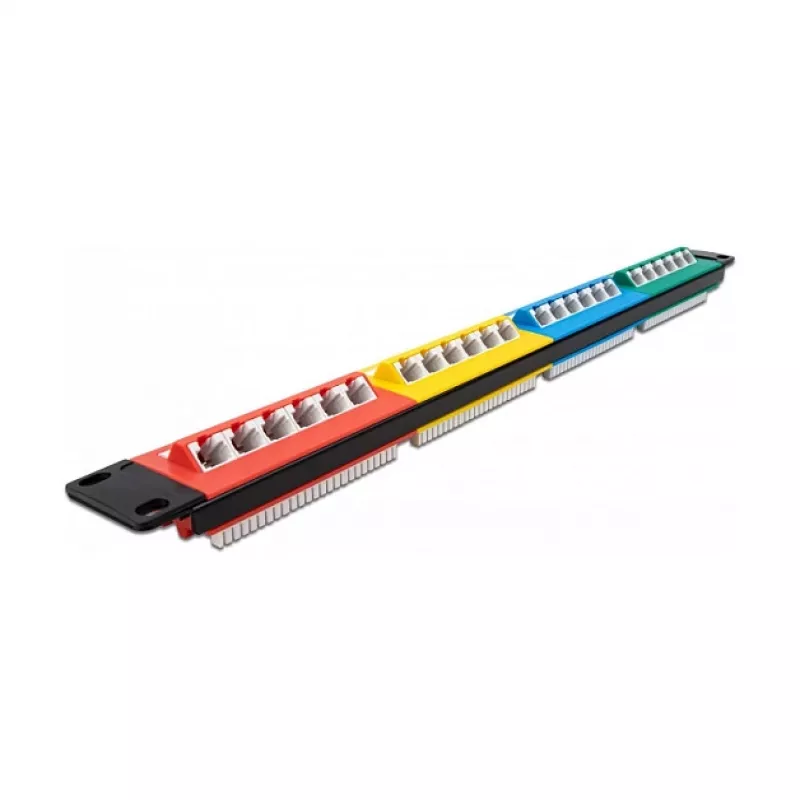

The DeLOCK 19" Patch Panel 24 port Cat.5e 1U coloured RJ-45 is a rack-mountable panel that provides 24 Cat.5e RJ-45 ports for structured network installations. Constructed from metal and plastic, the panel fits a standard 19" cabinet and measures 482.6 mm × 44.5 mm × 33.4 mm. Available in blue, yellow, red and green, it accepts AWG 22–26 conductors and uses LSA punch-down blocks for cable termination.

Advantages

This patch panel offers 24 Cat.5e RJ-45 ports in a compact 1U form factor for efficient rack space use. Its metal and plastic construction provides mechanical stability while colour options help visual identification of network segments. The LSA punch-down termination supports reliable connections for AWG 22–26 wires and simplifies installation when used with a punch-down tool.

Suitable for

• Office and server room structured cabling
• LAN distribution and patching between switches and endpoints
• Colour-coded network segmentation and cable management

Key specifications

• Ports: 24 RJ-45 (Cat.5e)
• Mounting: 19" rack, 1U
• Wire gauge: AWG 22–26

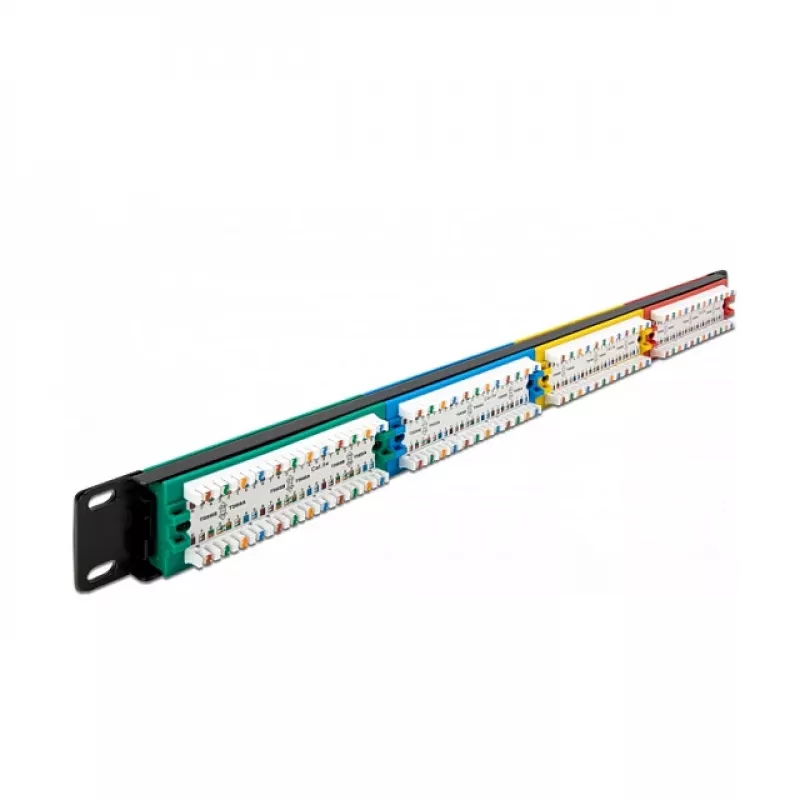

• Termination: LSA punch-down blocks (requires punch-down tool)
• Materials: Metal and plastic
• Dimensions: 482.6 mm (W) × 44.5 mm (H) × 33.4 mm (D)
• Colours: Blue, Yellow, Red, Green

How to use

Mount the patch panel in a standard 19" cabinet using appropriate rack screws. Prepare network cables to the recommended length, insert conductors into the corresponding LSA punch-down slots and terminate each cable with a punch-down tool. After termination, connect patch cords to the front RJ-45 ports to link switches, patch panels or network devices as required.

Recommendations

Use a compatible punch-down tool for LSA blocks and follow proper wiring standards (TIA/EIA or local equivalents) for consistent Cat.5e performance. Label ports or use the colour options to keep patching and troubleshooting straightforward.
