DeLOCK 19 inch Keystone Patch Panel 24 port with strain relief 1U angled black

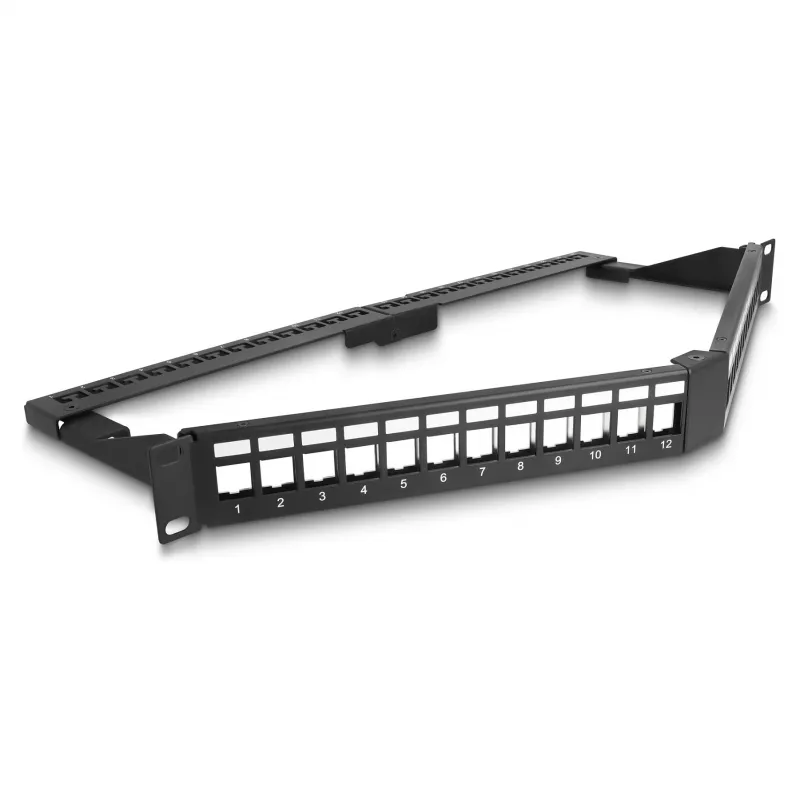

The DeLOCK 19" Keystone Patch Panel is a 1U, 24‑port angled patch panel designed for installation in a standard 19" cabinet. Its standardized dimensions accept up to 24 Keystone modules with snap‑in mounting. The black finish and compact 1U form factor make it suitable for professional network racks where space efficiency and orderly cabling are required.

Advantages

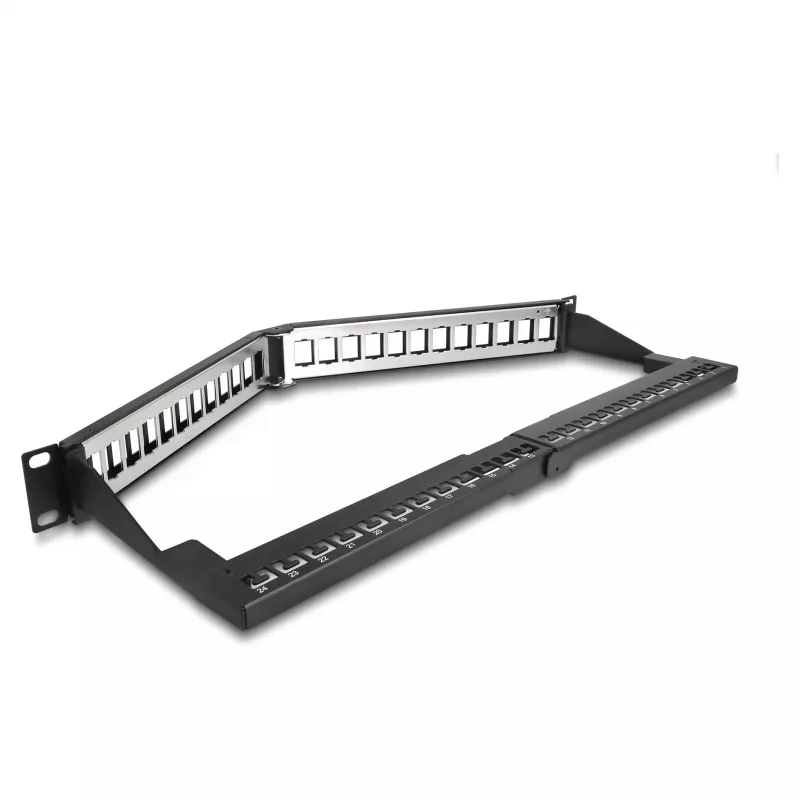

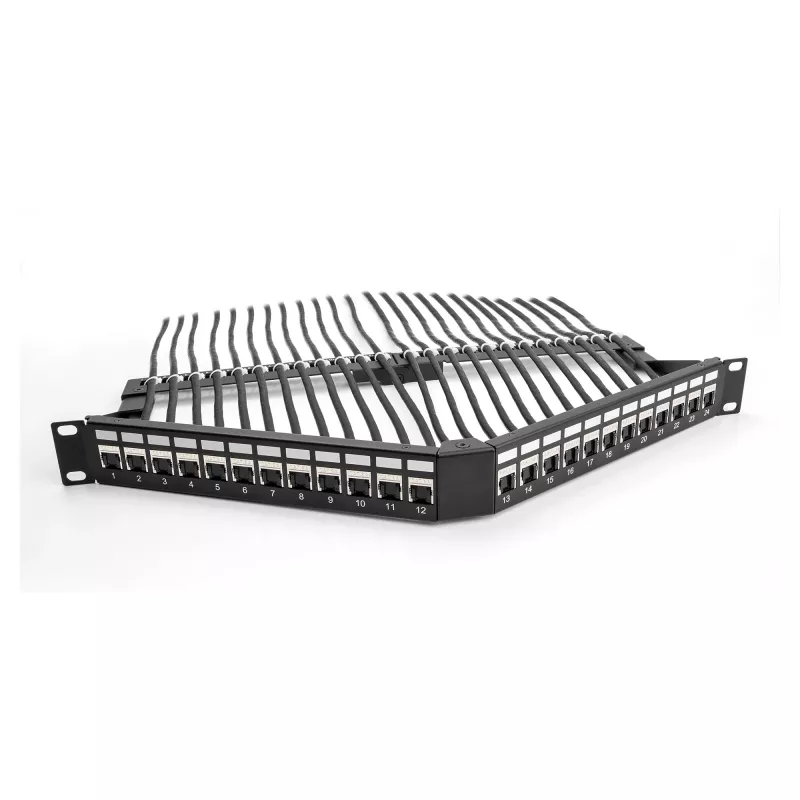

The angled design allows patch cables to be connected from both sides, improving cable routing and reducing bend radius. A rear strain relief area enables cables to be fastened with cable ties for clear and secure cable management. Each front port includes a dust cover to protect unused connections and a small labelling field per port for individual identification.

Suitable for

• Rack-mounted network installations in 19" cabinets
• Structured cabling systems using Keystone modules
• Server rooms and communication closets where space-saving 1U solutions are needed
• Environments requiring organised patching with port labelling and dust protection

Key specifications

• Ports: 24 Keystone ports
• Form factor: 1U, angled
• Mounting: 19" rack cabinet
• Colour: Black

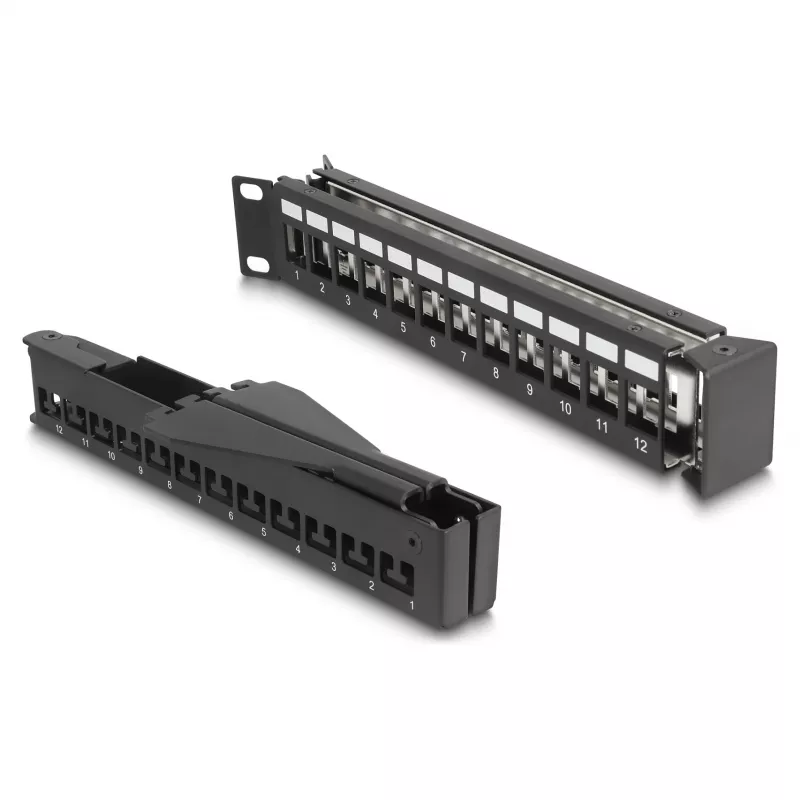

• Rear strain relief for cable ties

How to use

Mount the patch panel into a 19" rack at the desired 1U position and snap Keystone modules into the front openings. Route patch cables to the angled front panel and terminate or connect modules as required. Use the rear strain relief area to secure cable bundles with cable ties and insert port labels into the provided labelling fields. Close unused ports with the integrated dust covers to protect contacts from dirt.

Recommendations

For optimal cable life and performance, avoid tight bends at the cable exit and secure cables at the rear strain relief to prevent strain on terminations. Label each port clearly to simplify maintenance and changes.
