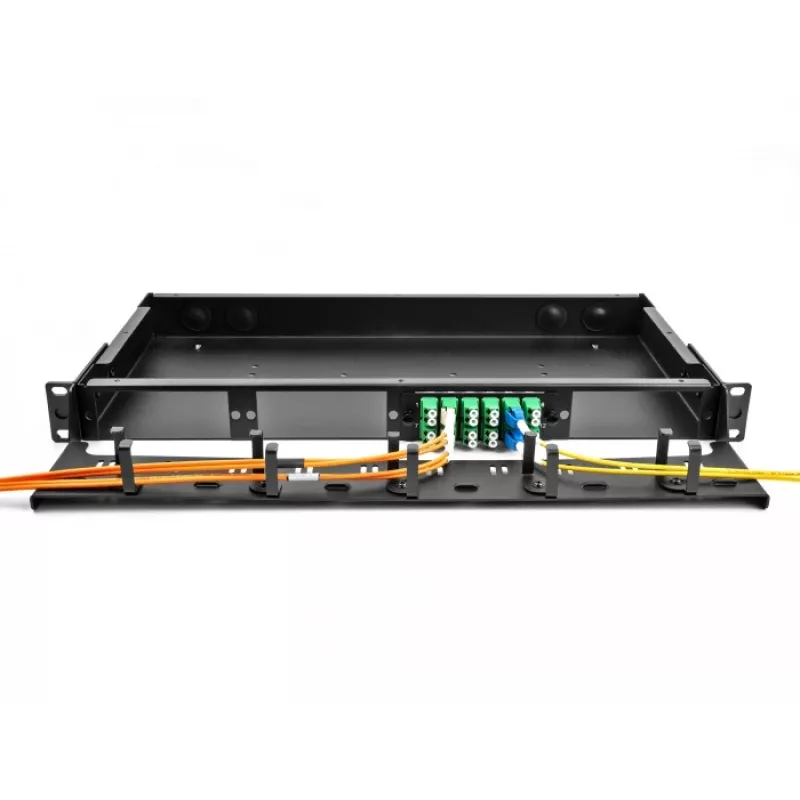

DeLOCK 19 inch Fiber Optic Routing Panel 1U black Rack mounting 1U

The DeLOCK 19" Fiber Optic Routing Panel 1U black is a 1U rack-mounted routing panel designed to be used with Delock 19" fiber optic HD (High Density) patch panels. It provides a compact black panel with dimensions 100 mm (width) x 482 mm (depth) x 44 mm (height) for tidy fiber cable routing in server racks and network cabinets.

Advantages

The routing panel enables organised cable routing to reduce twisting and bending of fiber optic cables, helping to protect fiber integrity. Its 1U design fits standard 19" racks and complements Delock high-density patch panels for consistent installation. The black finish matches typical rack equipment for a uniform appearance.

Suitable for

• Mounting in 19" server racks and network cabinets
• Use with Delock 19" fiber optic HD patch panels (e.g., model 66924)
• Organising and routing fiber optic cables to prevent damage

Key specifications

• Brand: DELOCK
• Model / MPN: 66942
• EAN: 4043619669424
• Form factor: 1U rack mount
• Colour: Black
• Dimensions (W x D x H): 100 mm x 482 mm x 44 mm
• Category: Fibre Optic Cables / Routing panel

How to use

Install the routing panel into a standard 19" rack at the desired 1U position using appropriate rack screws. Position the panel in front of or adjacent to a compatible Delock HD patch panel (model 66924) to route fiber optic cables through the panel openings, arranging fibers to avoid tight bends and excessive twisting. Secure cables with suitable cable ties or management accessories as required.

Recommendations

For optimal fibre performance, maintain minimum bend radii for your specific fiber type, avoid sharp bends during installation, and ensure connectors are clean before mating. Use the panel together with Delock 19" HD patch panels to achieve consistent high-density installations.
