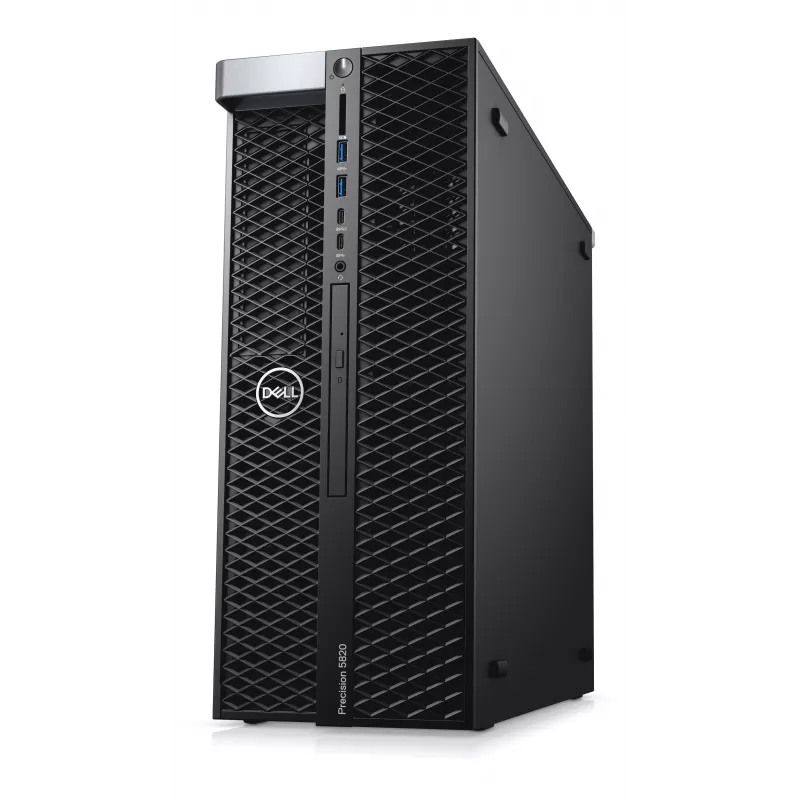

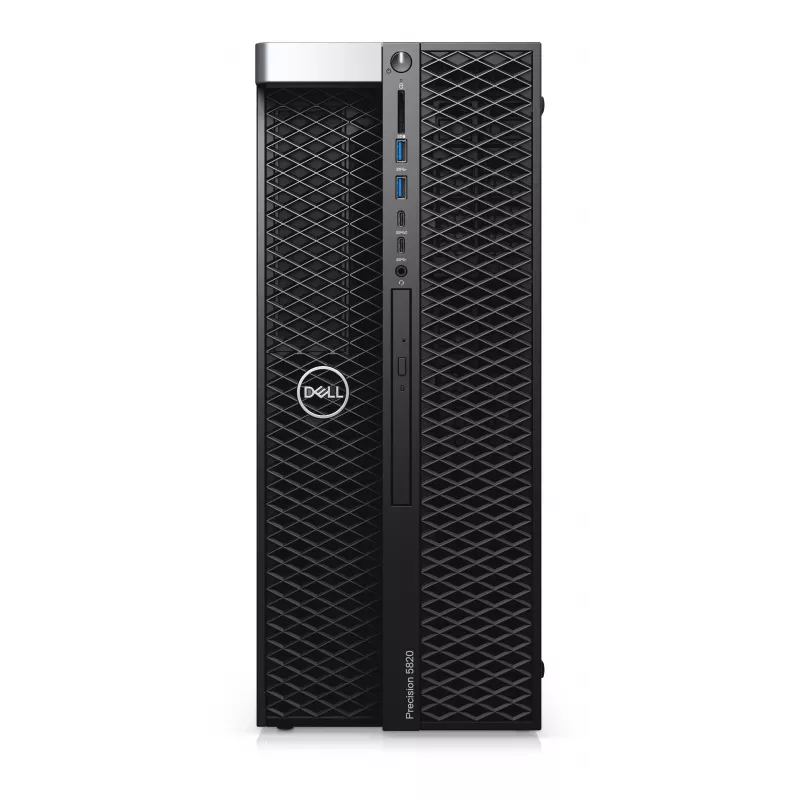

Dell Precision 5820 Tower Workstation - Intel Xeon W-2223, 32GB DDR4 ECC, 512GB NVMe SSD, NVIDIA Quadro P2200, Windows 10 Pro

Engineered for demanding professional workflows, the Dell Precision 5820 Tower pairs an Intel Xeon W-2223 processor with 32GB of ECC memory and a 512GB NVMe SSD, delivering uncompromising reliability and speed for CAD, 3D rendering, and data analysis.

Overview

The Precision 5820 is a tower workstation built on the Intel C621 chipset, supporting the Xeon W-2223 CPU with 4 cores, 8 threads, and clock speeds up to 3.9GHz. Its 32GB DDR4 ECC RAM (2x16GB, 2933MHz) ensures data integrity for mission-critical tasks, while the 512GB PCIe NVMe SSD provides rapid boot and application load times. Graphics are handled by an NVIDIA Quadro P2200 with 5GB GDDR5, certified for professional software. A 950W 80 PLUS Gold power supply offers headroom for future upgrades.

What stands out

• Intel Xeon W-2223 processor: 4 cores, 8 threads, up to 3.9GHz turbo for reliable multitasking.
• 32GB DDR4 ECC memory: error-correcting code prevents data corruption in critical computations.
• 512GB NVMe SSD: ultra-fast storage for large files and quick system responsiveness.
• NVIDIA Quadro P2200: 5GB GDDR5, optimized for professional ISV applications.
• 950W 80 PLUS Gold PSU: efficient power delivery with room for expansion.
• Comprehensive connectivity: front USB Type-C and Type-A ports, rear USB 3.1 and 2.0, Gigabit Ethernet.

Technical details

• Processor: Intel Xeon W-2223 (4C/8T, 3.6GHz base, 3.9GHz turbo)
• Chipset: Intel C621
• Memory: 32GB DDR4 ECC (2x16GB, 2933MHz)
• Storage: 512GB NVMe PCIe SSD
• Graphics: NVIDIA Quadro P2200, 5GB GDDR5
• Operating System: Windows 10 Pro for Workstations (64-bit)
• Optical Drive: DVD-RW
• Network: Integrated Intel I219-LM Gigabit Ethernet
• Front Ports: 2x USB 3.1 Gen 1 Type-A, 2x USB 3.1 Gen 1 Type-C, headphone, microphone
• Rear Ports: 4x USB 3.1 Gen 1 Type-A, 2x USB 2.0, RJ-45, audio line-out, audio line-in/mic
• Expansion Slots: 2x PCIe x16, 1x PCIe x8, 1x PCIe x4, 1x PCI
• Power Supply: 950W 80 PLUS Gold

Our verdict

The Dell Precision 5820 Tower is a robust, ISV-certified workstation that delivers enterprise-grade performance and expandability, making it an excellent choice for professionals who demand reliability and speed in compute-intensive tasks.
