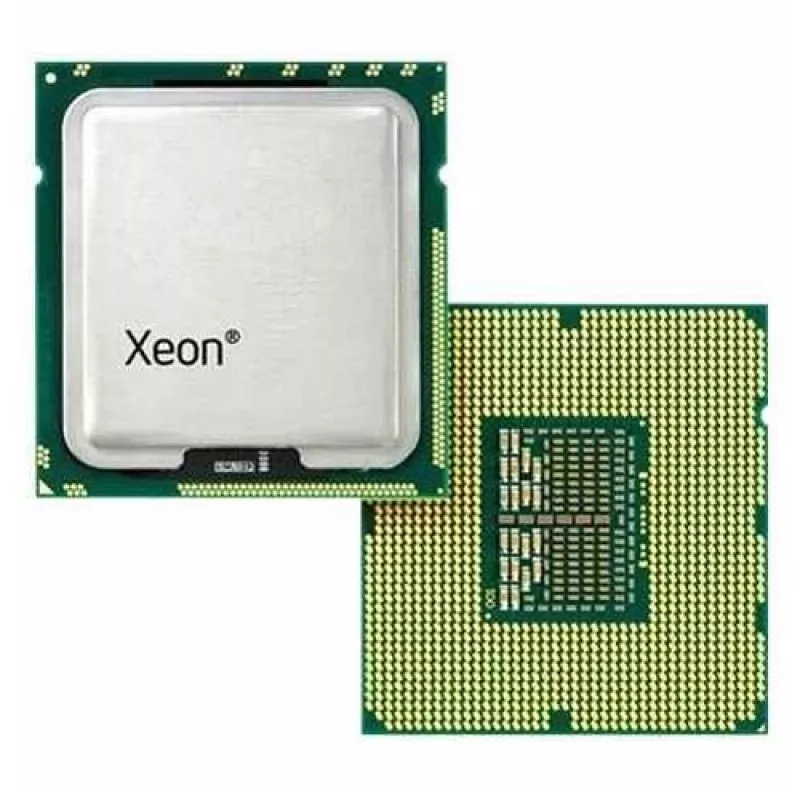

DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache

DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
R15,022
The Intel® E5-2620 v4 2.10 GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power con... Read More
Stock Out Of StockNo Stock Code 1728284 Brand INTEL Model 338-BJEU Warranty 2 Years

Shipping & Returns

The Intel® E5-2620 v4 2.10 GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E5-2620 v4 2.10 GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

DELL Intel Xeon E5-2620 V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1.53 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Processor package size: 45 x 52.5 mm. Compatibility: Intel® Server Board S2600CW2R Intel® Server Board S2600CW2SR Intel® Server Board S2600CWTR...

Key Highlights
  • Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz
  • 20 MB Smart Cache LGA 2011-v3
  • Processor cores: 8 14 nm 64-bit 85 W
  • Maximum internal memory supported by processor: 1.53 TB DDR4-SDRAM
Specifications
Bus type
QPI
Compatibility
Intel® Server Board S2600CW2R Intel® Server Board S2600CW2SR Intel® Server Board S2600CWTR Intel® Server Board S2600CWTSR Intel® Server Board S2600KPR Intel® Server Board S2600KPFR Intel® Server Board S2600KPTR Intel® Server Board S2600TPR Intel® Server Board S2600TPFR Intel® Server Board S2600WTTR Intel® Server Board S2600WT2R Intel® Server Board S2600WTTS1R Intel® Compute Module HNS2600KPFR Intel® Compute Module HNS2600KPR Intel® Compute Module HNS2600TP24R Intel® Compute Module HNS2600TP24SR Intel® Compute Module HNS2600TPFR Intel® Compute Module HNS2600TPR Intel® Server System R1208WT2GSR Intel® Server System R1208WTTGSR Intel® Server System R1304WT2GSR Intel® Server System R1304WTTGSR Intel® Server System VRN2224THY2 Intel® Server System VRN2224THY4 Intel® Server System R2208WTTYSR Intel® Server System R2208WT2YSR Intel® Server System R2208WTTYC1R Intel® Server System R2308WTTYSR Intel® Server System R2312WTTYSR Intel® Server System R2224WTTYSR
Component for
Server/workstation
Conflict-Free processor
Yes
CPU configuration (max)
2
ECC
Yes
Embedded options available
Yes
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Graphics & IMC lithography
14 nm
Harmonized System (HS) code
85423119
Idle States
Yes
Intel 64
Yes
Intel Demand Based Switching
Yes
Intel Flex Memory Access
No
Intel Trusted Execution Technology
Yes
Intel TSX-NI
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Identity Protection Technology (Intel® IPT)
No
Intel® OS Guard
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel® vPro™ Platform Eligibility
Yes
Market segment
Server
Maximum internal memory supported by processor
1.53 TB
Maximum number of PCI Express lanes
40
Memory bandwidth supported by processor (max)
68.3 GB/s
Memory channels
Quad-channel
Memory clock speeds supported by processor
1600,1866,2133 MHz
Memory types supported by processor
DDR4-SDRAM
Number of QPI links
2
On-board graphics card
No
PCI Express slots version
3.0
Processor base frequency
2.1 GHz
Processor boost frequency
3 GHz
Processor cache
20 MB
Processor cache type
Smart Cache
Processor cores
8
Processor family
Intel Xeon E5 v4
Processor lithography
14 nm
Processor manufacturer
Intel
Processor model
E5-2620V4
Processor operating modes
64-bit
Processor package size
45 x 52.5 mm
Processor series
Intel Xeon E5-2600 v4
Processor socket
LGA 2011-v3
Processor threads
16
Scalability
2S
Stepping
R0
Supported instruction sets
AVX 2.0
System bus rate
8 GT/s
Tcase
74 °C
Thermal Design Power (TDP)
85 W
Thermal Monitoring Technologies
Yes
VID Voltage Range
0 - 0 V
Weight
0.1 kg

Leaflet

Open Leaflet
