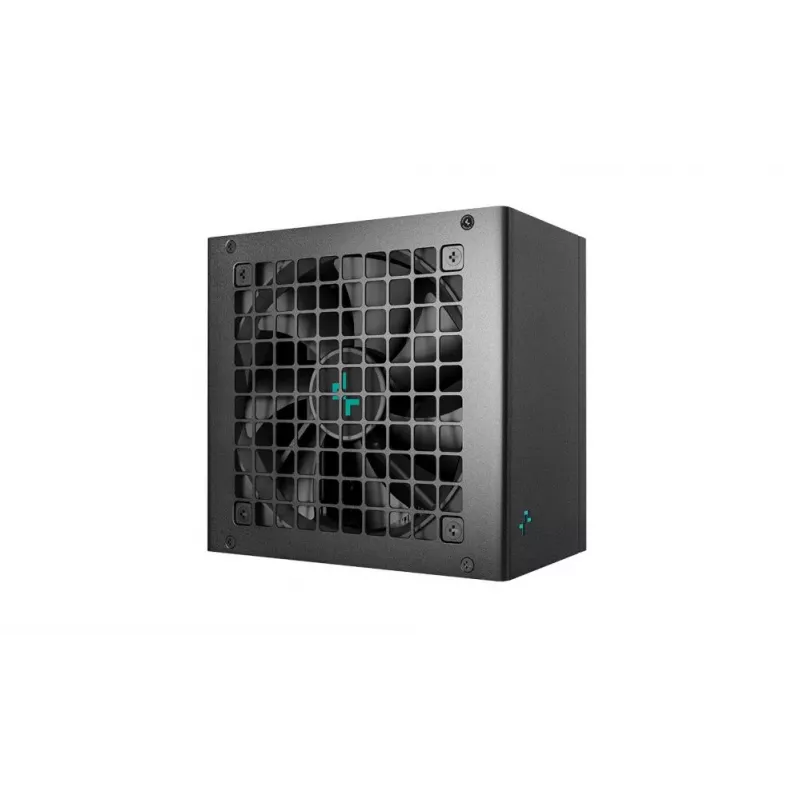

Deepcool PN850M 850W 80 PLUS Bronze Semi-Modular ATX Power Supply

The Deepcool PN850M is a high-performance ATX power supply delivering 850W of reliable power with 80 PLUS Bronze efficiency. Designed for gaming and workstation builds, it features semi-modular cabling for clean cable management and a 120mm hydro bearing fan for quiet operation.

Advantages

With 80 PLUS Bronze certification, the PN850M ensures up to 85% efficiency at typical loads, reducing energy waste and heat output. The semi-modular design allows you to connect only the cables you need, improving airflow and simplifying installation. Active PFC and multiple protections (OVP, OCP, OPP, OTP, SCP, UVP) safeguard your components.

Suitable for

• Gaming PCs requiring stable 850W power
• Workstations with multiple GPUs
• Builds prioritizing cable management

Key specifications

• Power Output: 850W
• Efficiency: 80 PLUS Bronze
• Form Factor: ATX
• Modularity: Semi-Modular
• Fan: 120mm Hydro Bearing
• Input Voltage: 100-240V AC
• Input Frequency: 47-63 Hz
• MTBF: 100,000 hours
• Protections: OVP, OCP, OPP, OTP, SCP, UVP
• Connectors: 1x ATX 24-pin, 2x EPS/CPU 4+4-pin, 4x PCIe 6+2-pin, 6x SATA, 3x Molex
• Certifications: CE, FCC, CCC, TUV, cTUVus, RCM, EAC, UKCA, BSMI, KC, CB
• Warranty: 5 Years

Recommendations

For optimal performance, pair the PN850M with a modern ATX case and high-end components. The semi-modular cables reduce clutter, making it ideal for builders who value aesthetics and airflow.
