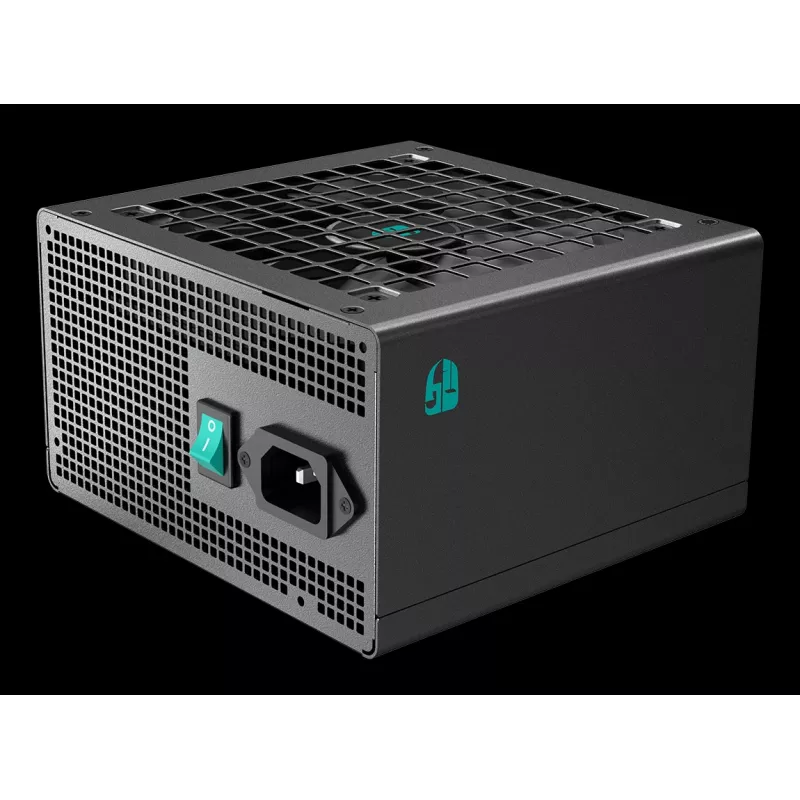

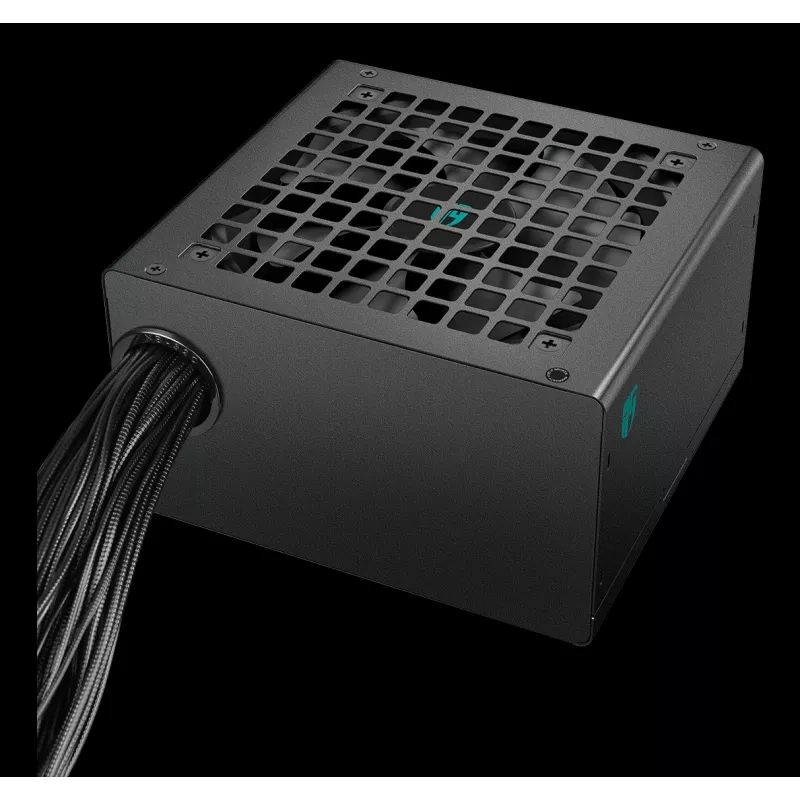

Gamer Storm PN650D power supply unit 650 W 20+4 pin ATX ATX Black

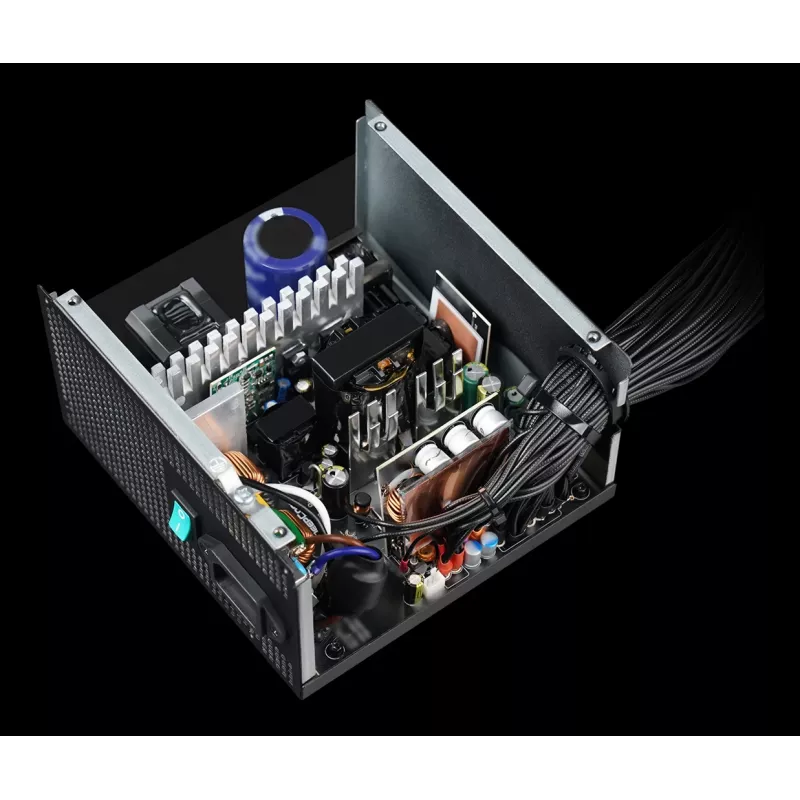

The DeepCool Gamer Storm PN650D is a 650 W power supply unit for desktop PCs, featuring 80 PLUS Gold efficiency and universal input voltage (100–240 V, 50/60 Hz). It uses a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC and DC-to-DC topology to maintain a hold-up time ≥ 16 ms at 80% load. The unit includes a 20+4 pin ATX motherboard connector and is supplied with sleeved cables and a 120 mm dynamic hydro bearing fan for active cooling.

Advantages

The PN650D delivers stable power for modern systems with PCI‑E 5.1 compatibility via a high-grade 16AWG copper-core sleeved 12V 2x6 cable capable of providing up to 450 W to GPUs. Sleeved cables are fitted out of the box for improved durability and appearance. The dynamic hydro bearing fan adjusts speed according to cooling needs, and high-quality components enable operation up to 5000 m altitude. Built-in protections (OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP) increase operational safety, and a 10-year limited warranty provides long-term coverage.

Suitable for

• Gaming PCs with modern GPUs requiring PCI‑E 5.1 power
• Mid- to high-end desktop builds needing 650 W power capacity
• Systems where energy efficiency and reliable hold-up time are important

Key specifications

• Total power: 650 W
• Input voltage: 100–240 V, 50/60 Hz
• Efficiency: 80 PLUS Gold (approx. 90%)
• Motherboard connector: 20+4 pin ATX
• PCI‑E cable: 12V 2x6 (16AWG copper-core sleeved), up to 450 W for GPU

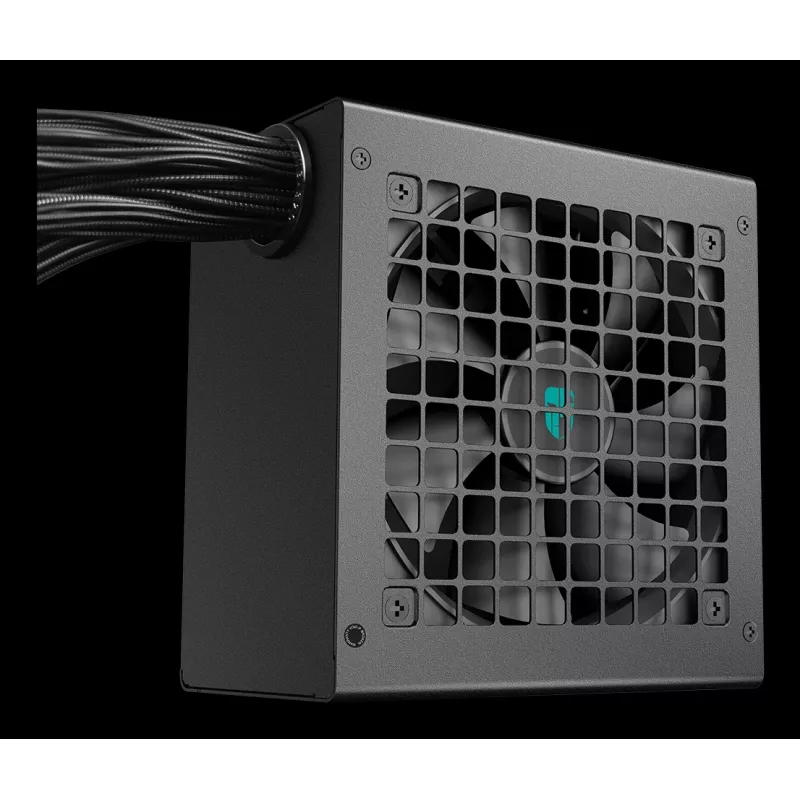

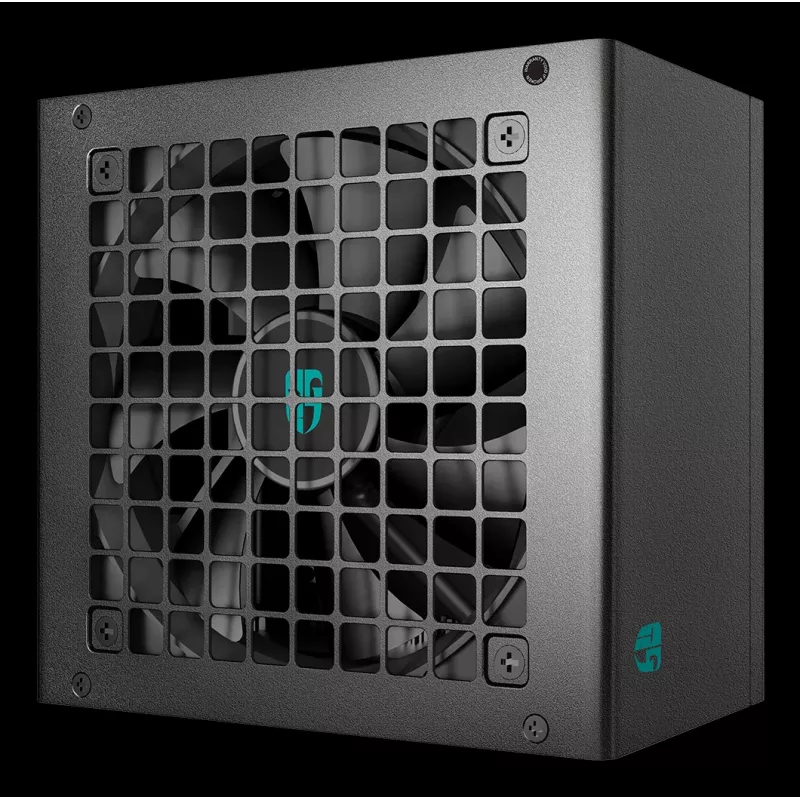

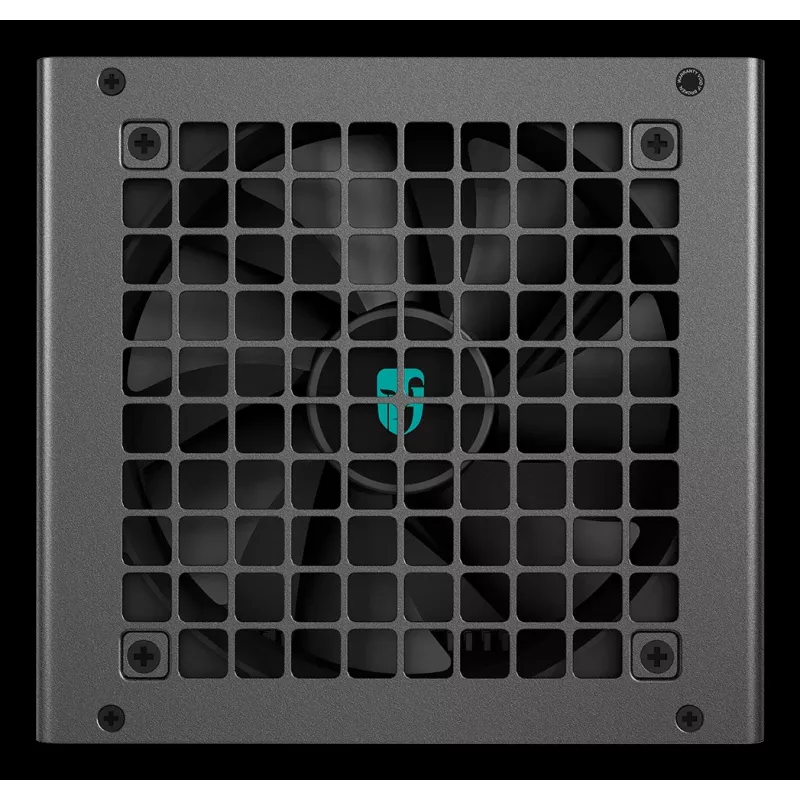

• Fan: 120 mm dynamic hydro bearing
• Colour: Black
• Altitude operation: up to 5000 m
• Protections: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP
• Warranty: 10 years limited

How to use

Install the PN650D in a compatible ATX chassis, connect the 20+4 pin ATX cable to the motherboard and attach PCI‑E and SATA power cables to GPUs and drives as required. Ensure input voltage matches local mains (100–240 V supported) and secure all connectors. Position the PSU so the 120 mm fan has adequate airflow; the fan will vary speed automatically based on temperature and load.

Recommendations

For stable operation, allow clearance for airflow around the PSU, use the provided sleeved cables to maintain tidy routing, and verify GPU power requirements before connecting the PCI‑E 12V 2x6 cable. Regularly check system ventilation and dust levels to preserve cooling efficiency and prolong component life.
