DC Speed Controller Module H-TRONIC 191507 — 12V/24V, up to 10A

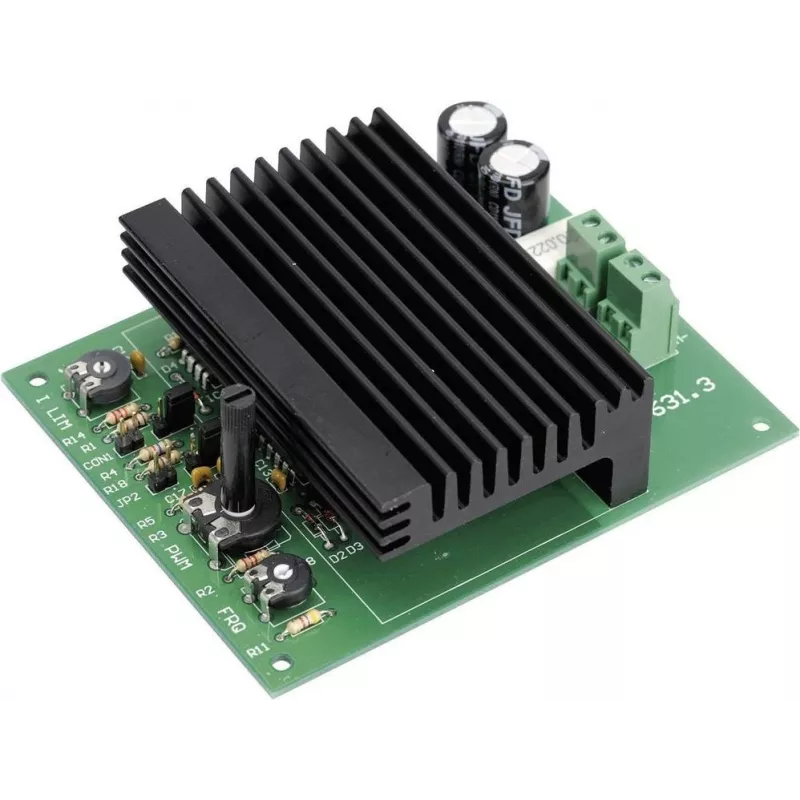

H-TRONIC DC Speed Controller Module 191507 is a compact electronic module designed to control the speed of DC motors or adjust power to DC loads in 12V and 24V systems. The module accepts a supply voltage of 12 V or 24 V and provides an adjustable output capable of handling currents up to 10 A. It is suitable for small machinery, workshop equipment, model making and automotive accessories where precise control of motor RPM or output power is required and the operating current remains within the rated limit.

Advantages

The controller offers a compact footprint and simple integration into existing 12V/24V installations. Its adjustable output allows smooth regulation of motor speed or lighting intensity without complex configuration. The device is built to handle continuous currents up to 10 A, making it appropriate for a wide range of low-voltage DC applications. The design emphasises straightforward wiring and user-friendly adjustment, enabling quick installation in hobby and light industrial projects.

Suitable for

• Speed control of small DC motors in workshop tools and model projects
• Adjusting power to 12V/24V lighting and lamps (dimming within device limits)
• Fans, pumps and other low-voltage DC loads in automotive or marine systems
• Prototyping and retrofitting existing 12V/24V equipment with variable output

Key specifications

• Operating voltage: 12 V / 24 V DC
• Maximum output current: up to 10 A
• Adjustable output for continuous regulation of motor speed or load power
• Compact electronic module form factor for inline integration
• Simple wiring and manual adjustment control

How to use

Connect the module in series between the DC power source (12 V or 24 V) and the motor or load, observing correct polarity. Use the built-in control (potentiometer or adjustment interface) to change the output level and regulate speed or power. Ensure the connected load does not draw more than 10 A and allow adequate cooling or ventilation during continuous high-current operation. Verify wiring and insulation before applying power and test the adjustment range at low settings first.

Recommendations

For reliable operation, mount the module in a location with sufficient airflow and keep ambient temperature within the manufacturer’s typical operating range. Avoid connecting inductive loads without appropriate suppression if the motor or load generates electrical noise. When used in vehicles or mobile equipment, ensure stable supply voltage and secure connections to prevent transient spikes. If continuous currents approach the 10 A limit, consider additional heat dissipation measures or a higher-rated controller.
