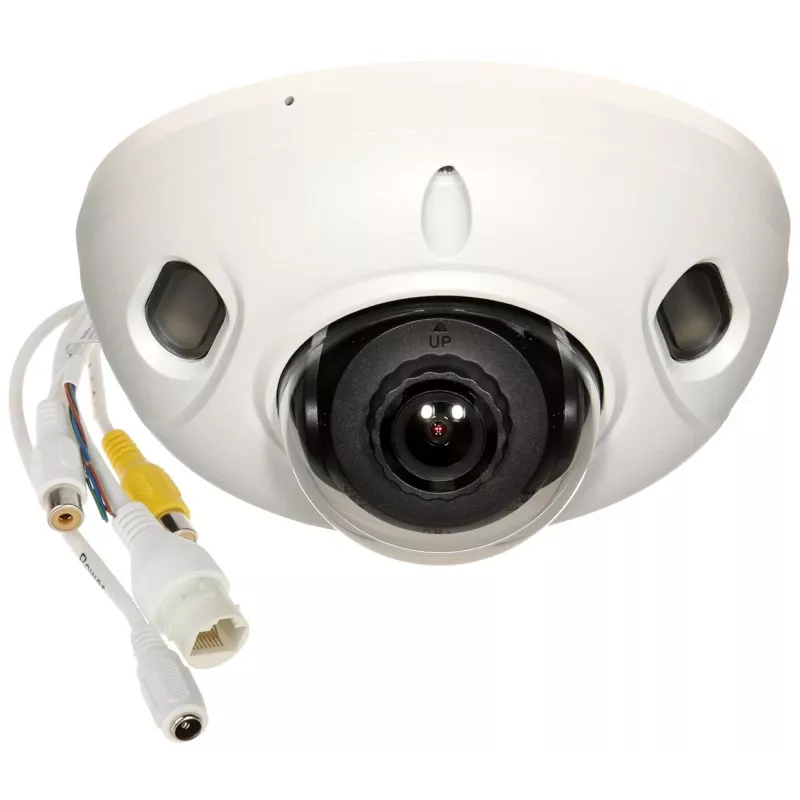

Dahua WizSense IP Dome Security Camera DH-IPC-HDBW3541F-AS-S2 — 5 MP, 2.8 mm, 2960×1668, Indoor/Outdoor, Ceiling/Wall

Dahua WizSense IP Dome Security Camera DH-IPC-HDBW3541F-AS-S2 is a wired dome camera designed for indoor and outdoor surveillance. It delivers up to 5 MP resolution (2960 × 1668) with a 2.8 mm fixed lens and a wide 111° horizontal field of view. The camera uses a 1/2.7" CMOS sensor and supports 30 fps in common modes, with excellent low-light sensitivity down to 0.005 lx. The device is available in a white housing, supports ceiling or wall mounting, and its robust enclosure meets dust- and water-resistance standards for outdoor use.

Advantages

The camera integrates Dahua WizSense AI capabilities to improve target detection accuracy for human and vehicle objects while reducing false alarms. Intelligent coding technologies lower bandwidth and storage requirements without sacrificing image detail. Starlight-level imaging and IR illumination ensure usable color and monochrome images in low-light and no-light conditions. The compact dome form factor and multi-mount options make installation flexible for many environments.

Suitable for

• Small and medium retail premises requiring indoor and outdoor coverage
• Office entrances, corridors and reception areas
• Parking lots, driveways and perimeter monitoring where human or vehicle detection is needed
• Residential buildings and apartment common areas

Key specifications

• Image sensor: 1/2.7" CMOS, 5 MP effective resolution
• Max resolution: 2960 × 1668; typical supported recording modes include 4 MP at 25/30 fps
• Lens: 2.8 mm fixed; horizontal field of view approximately 111°
• Minimum illumination: 0.005 lx (color), with IR for night vision
• Frame rate: up to 30 fps (dependent on resolution and settings)
• AI features: human and vehicle classification, perimeter protection, smart motion detection (SMD)
• Video compression: H.265 / H.264 with smart encoding modes to reduce bandwidth and storage
• Environmental protection: dust and water resistance suitable for outdoor use; impact-resistant enclosure
• Mounting: ceiling or wall
• Connectivity: wired network connection
• Housing color and weight: white, approximately 0.423 kg

How to use

Mount the camera on a ceiling or wall using the appropriate hardware and ensure the field of view covers the intended area. Connect the camera to a PoE-enabled switch or a compatible power source and to your network device. Configure network settings and enable Dahua WizSense AI functions via the camera’s web interface or an NVR that supports Dahua AI features. Adjust exposure, WDR and IR settings as needed to optimise image quality for the installation environment.

Recommendations

Position the camera to minimise direct exposure to strong light sources and use the AI perimeter protection settings to reduce false alarms from non-human or non-vehicle motion. Regularly verify firmware updates and apply them to maintain cybersecurity protections and feature improvements.
