Dahua V9H Type-C Hardwire Kit for Dash Cam – Parking Mode Power Supply

Dahua V9H Type-C Hardwire Kit for Dash Cam – Parking Mode Power Supply
Dahua V9H Type-C Hardwire Kit for Dash Cam – Parking Mode Power Supply
R522
The Dahua V9H Type-C Hardwire Kit is a professional parking mode power supply designed to enable 24/7 surveillance for compatible Dahua dash cameras. This hardwire kit connects directly to your vehicle's fuse box, providing a constant power source while protecting your car battery from over-discharg... Read More
Stock 36 Code 3104168 Brand DAHUA Model V9H_TYPE-C Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

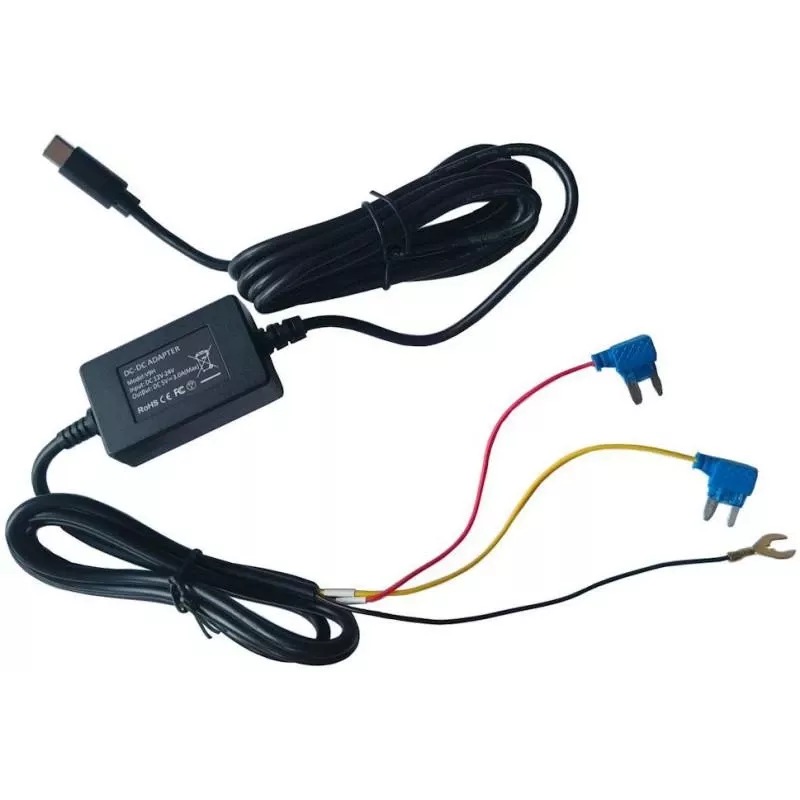

The Dahua V9H Type-C Hardwire Kit is a professional parking mode power supply designed to enable 24/7 surveillance for compatible Dahua dash cameras. This hardwire kit connects directly to your vehicle's fuse box, providing a constant power source while protecting your car battery from over-discharge. With selectable low-voltage cut-off and parking mode timer, you can customize the operation to suit your needs. The kit features a USB Type-C output connector and a 3-wire hardwire input (ACC, B+, GND) for easy installation.

Advantages

• Enables continuous parking surveillance mode for enhanced security
• Protects vehicle battery with selectable low-voltage cut-off (11.8V / 12.0V / 12.2V for 12V systems; 23.6V / 24.0V / 24.4V for 24V systems)
• Adjustable parking mode timer (6h / 12h / 24h / Continuous) for flexible operation
• Built-in overcurrent and short circuit protection for safe use
• Compatible with Dahua T5, T2, T3, T6 series dash cams with USB-C power input

Suitable for

  • Dahua T5 series dash cameras
  • Dahua T2, T3, T6 series dash cameras with USB-C power input
  • Vehicles requiring 24/7 parking surveillance

Key specifications

  • Product Type: Dash Cam Hardwire Kit
  • Input Voltage: DC 12V / 24V
  • Output Voltage: DC 5V
  • Output Current: 2.5A (Max)
  • Output Connector: USB Type-C
  • Input Connection: 3-Wire Hardwire (ACC, B+, GND)
  • Low Voltage Cut-off (12V System): Selectable (11.8V / 12.0V / 12.2V)
  • Low Voltage Cut-off (24V System): Selectable (23.6V / 24.0V / 24.4V)
  • Parking Mode Timer: Selectable (6h / 12h / 24h / Continuous)
  • Cable Length: Approx. 3.5 meters
  • Protection Features: Battery Discharge Prevention, Overcurrent Protection, Short Circuit Protection
  • Fuse Type: Built-in Inline Fuse
  • Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure your vehicle's fuse box is accessible and the dash cam is compatible with USB-C power input. Professional installation is recommended to avoid electrical issues.

Specifications
Brand
Dahua
Cables included
Hardwire Kit, User Manual
Category
Dash Cam Accessories
EAN
6923169774602
Input operation voltage (max)
24
Interface type
USB Type-C
Model
V9H_TYPE-C
MPN
V9H_TYPE-C
Operating temperature (T-T)
-20~70
Power source type
DC
Quantity per pack
1
USB version
USB 2.0
Weight
1 kg
