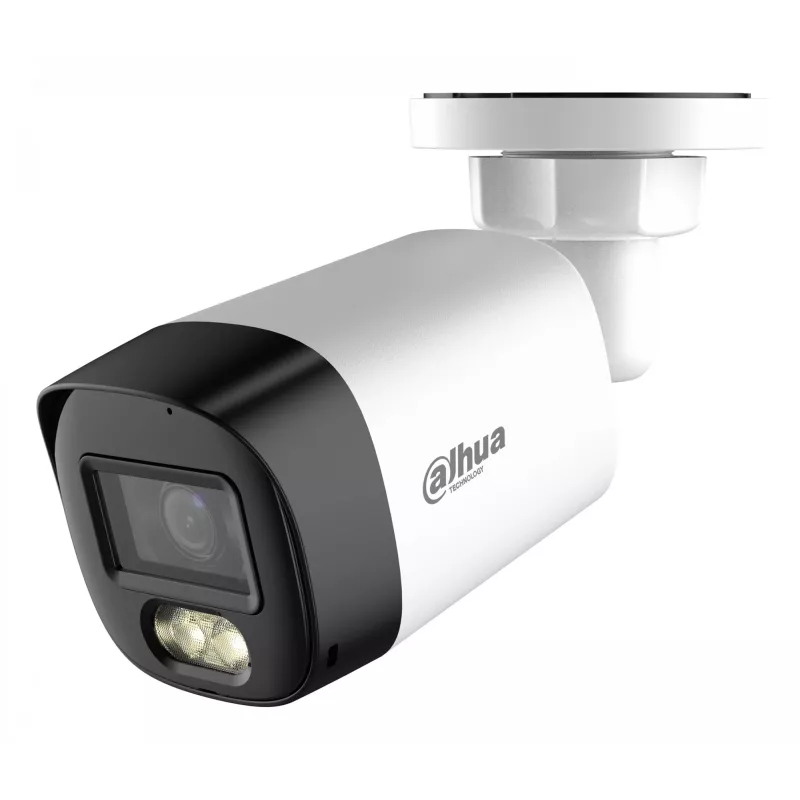

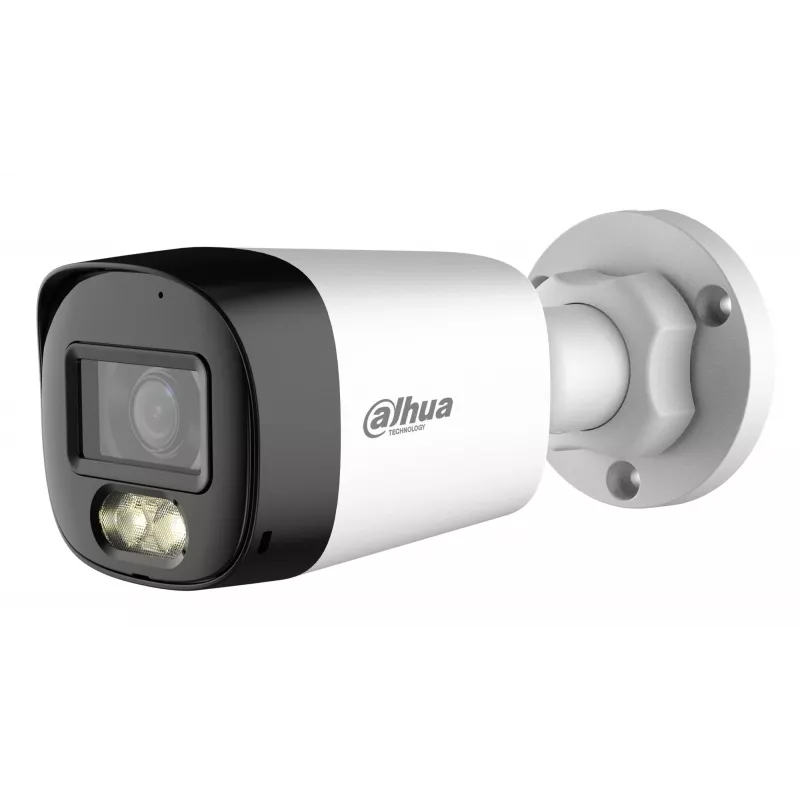

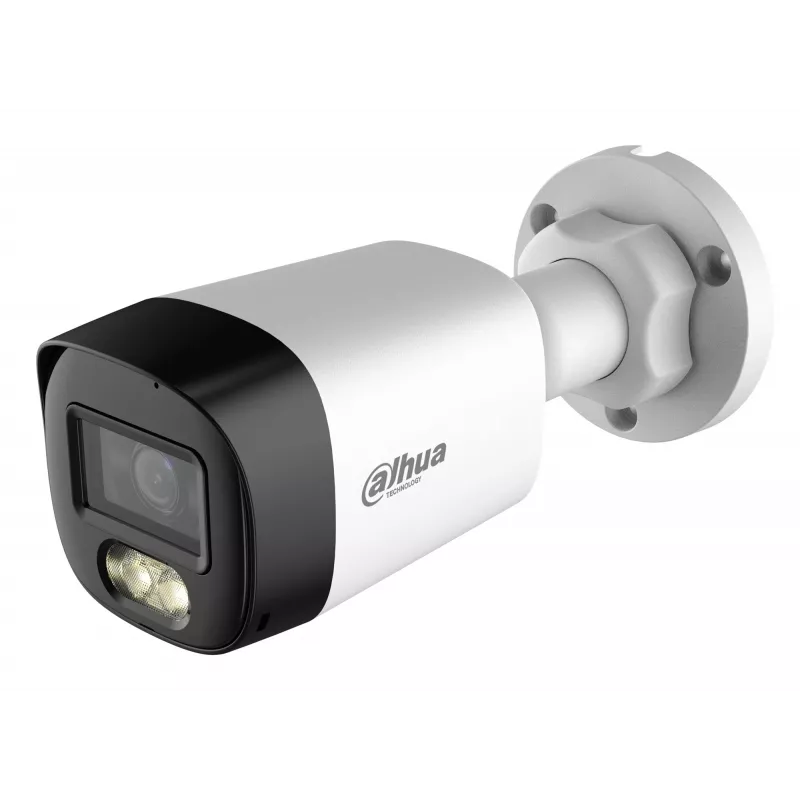

Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
36 mo.
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
R1,632
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, pro... Read More
Stock 2 Code 1575901 Brand DAHUA Model HFW1801RL-IL-A-0280B-S3DIP Warranty 3 Years

Shipping & Returns

Estimated delivery Wednesday, September 30
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.

Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.

Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.

Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.

Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 88 m, Observe distance: 35.2 m, Recognize distance: 17.6 m

Key Highlights
  • The parameters and datasheets below can only be applied to 1801-IL-S3 series
  • In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
  • In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version
  • Max. 15 fps@4K
  • Smart Dual Light
  • 30 m illumination distance
  • Super Adapt
  • Built-in Mic
  • 3.6 mm fixed lens (2.8 mm optional)
  • CVI/CVBS/AHD/TVI switchable
  • IP67, 12 VDC
  • Indoor & outdoor CCTV security camera
  • CMOS 3840 x 2160 pixels
  • Wired
  • Night vision 30 m IR/White
  • Bullet Ceiling/Wall/Pole Corrosion resistant, Waterproof
  • IP67
  • White, Black
  • 170 g
Specifications
Analog signal format system
NTSC, PAL
Angle of rotation
360°
Back Light Compensation (BLC)
Yes
Bluetooth
No
BNC output ports
1
Built-in HDD
No
Built-in microphone
Yes
Camera shutter speed
1/25 - 1/100000 s
Camera shutter type
Electronic
Closest focusing distance
1.3 m
Compliance certificates
Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE
Connectivity technology
Wired
Day/night mode
Yes
DC output voltage
12
Detect distance
88 m
Digital Wide Dynamic Range (DWDR)
Yes
Ethernet LAN
No
Fixed focal length
2.8 mm
Fixed focus
Yes
Form factor
Bullet
Frame rate
15 fps
Gain control type
Auto
Height
69.7 mm
Highlight Compensation (HLC)
Yes
Housing material
Plastic
Identify distance
8.8 m
Interface
BNC
International Protection (IP) code
IP67
Iris
Yes
LED type
IR/White
Length
161.6 mm
Lens mount interface
M12
Lens viewing angle, diagonal
125.3°
Lens viewing angle, horizontal
105.5°
Lens viewing angle, vertical
56.5°
Maximum aperture number
2
Maximum resolution
3840 x 2160 pixels
Minimum illumination
0 lx
Mirror
Yes
Mounting type
Ceiling/Wall/Pole
Night vision
Yes
Night vision distance
30 m
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Number of cameras
1
Number of illumination LEDs
2
Observe distance
35.2 m
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-40 - 60 °C
Package weight
240 g
Pan range
0 - 360°
Placement supported
Indoor & outdoor
Power consumption (max)
4.1 W
Power source type
DC
Product colour
White, Black
Progressive scan
Yes
Protection features
Corrosion resistant, Waterproof
Recognize distance
17.6 m
Sensor type
CMOS
Signal-to-Noise Ratio (SNR)
65 dB
Smart IR
Yes
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 60 °C
Supported graphics resolutions
3840 x 2160, 960 x 576, 960 x 480
Supported video modes
2160p, 576p, 480p
Tilt angle range
0 - 90°
Type
CCTV security camera
Weight
170 g
White balance
Auto
Wi-Fi
No
Wide Dynamic Range (WDR)
Yes
Width
70 mm

Leaflet

Open Leaflet

Manual

Open Manual

Document

Open Document
