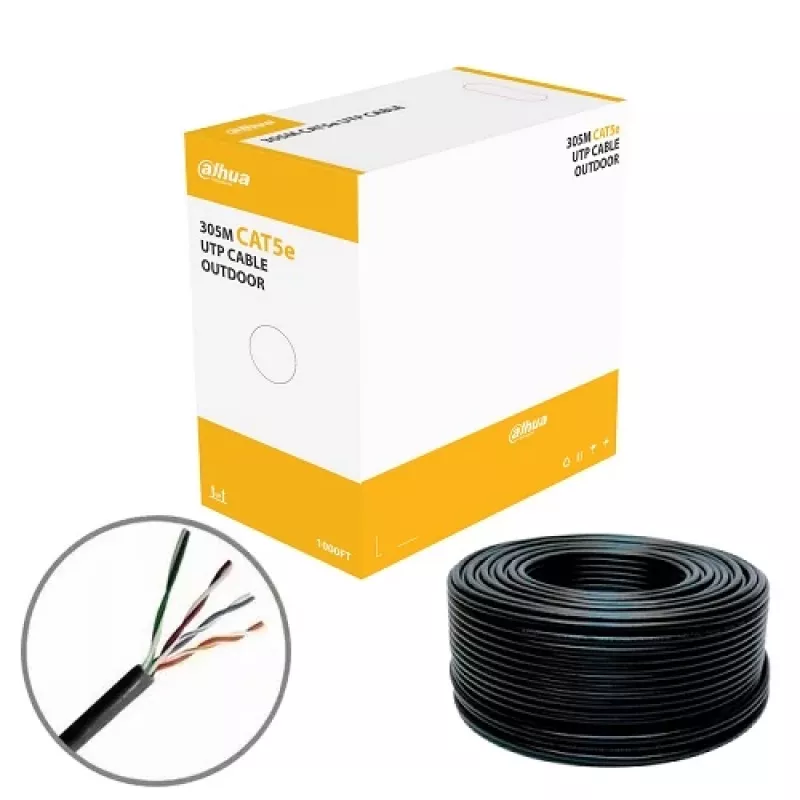

Dahua PFM920-5EU Cat5e UTP Outdoor Cable 305m (1000ft) Reel

Spanning an impressive 305 metres, this Dahua PFM920-5EU Cat5e cable brings true outdoor capability to high-speed networks. Built on oxygen-free copper and engineered with a robust PE jacket, it delivers reliable Gigabit performance in demanding environments.

Overview

This cable is designed for long-distance structured cabling, telecommunication from building to building, or any installation that requires a durable UTP link. Its 24 AWG solid conductors with HDPE insulation ensure signal integrity across the full 100 MHz bandwidth. The black polyethylene jacket resists UV radiation and water, making it an ideal choice for outdoor runs, while still performing well in indoor plenum spaces.

What stands out

• 305 m continuous length on a convenient reel-in-box, reducing wastage and splicing
• Oxygen-free copper conductors guarantee high conductive efficiency and low attenuation
• UTP shielding minimises interference for data rates up to 1000 Mbps
• Weather-resistant PE jacket built for harsh outdoor conditions
• Standard compliant with TIA/EIA-568B.2 and ISO/IEC 11801

Technical details

• Cable type: Cat5e UTP
• Impedance: 100 ±15 Ω
• Conductor gauge: 24 AWG
• Number of pairs: 4 pairs
• Jacket: Black PE
• Operating temperature: -20°C to +60°C
• Storage temperature: -20°C to +60°C
• Length: 305 m (1000 ft)
• Bandwidth: 100 MHz
• Data rate: 1000 Mbps
• Shielding: UTP

Our verdict

For installers who need a dependable outdoor backbone cable without paying for more than they need, the Dahua PFM920-5EU offers the right balance of performance and durability.
