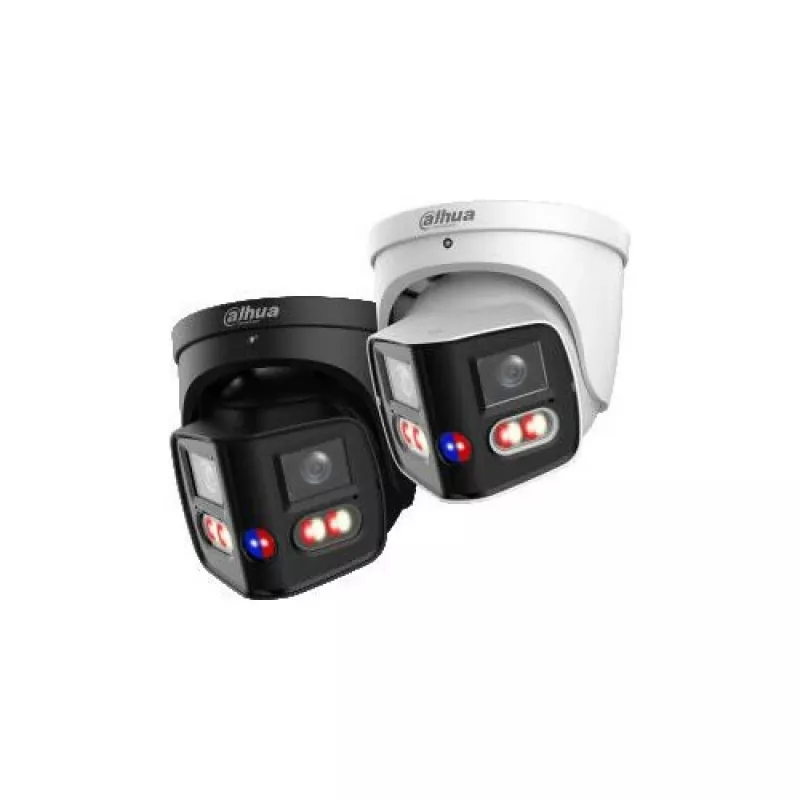

Dahua IPC-PDW31259-A180-AS-PV-0280B TIOC Duo 5MP Panoramic IP Camera with 180° View, Wi-Fi, Active Deterrence, IP67

Monitor a wide area without blind spots. This dual-lens camera fuses two 5MP sensors into a single panoramic view, covering 180 degrees horizontally. It combines advanced AI detection with active audio and light deterrence to protect your property around the clock.

Who is it for

Ideal for homeowners and small business owners who want comprehensive outdoor monitoring without multiple cameras. It also suits projects requiring a single PoE connection and Wi-Fi flexibility.

Main features

• Dual 5MP sensors deliver a stitched 180° panoramic video stream at 2560×1920 resolution.
• Active deterrence with red/blue flashing light and siren to discourage intruders.
• Built-in microphone and speaker support two-way audio communication.
• AI-based SMD 4.0 distinguishes people and vehicles, reducing false alarms.
• Perimeter protection with tripwire and intrusion detection zones.
• Wi-Fi connectivity (2.4 GHz) for flexible installation, plus wired Ethernet for reliability.
• IP67 weatherproof housing withstands rain, dust, and extreme temperatures.

Specifications

• Sensor: 2× 1/2.7" 5MP progressive CMOS
• Maximum Resolution: 2560×1920 per sensor, panoramic view
• Lens: Fixed-focal 2.8mm (per lens)
• Field of View: Horizontal 180° (panoramic stitching)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Frame Rate: Main stream 5MP @ 20 fps
• Night Vision: IR LED (up to 20m) and warm light (up to 20m)
• Audio: Built-in mic, speaker, two-way audio
• Active Deterrence: Red/blue flashing light and siren
• AI Features: SMD 4.0, perimeter protection (tripwire, intrusion), quick pick
• Wireless: Wi-Fi IEEE 802.11b/g/n, 2.4 GHz
• Wired: 1× RJ-45 10/100Base-T
• Storage: MicroSD card slot, supports up to 256 GB
• Power: 12V DC / PoE (802.3af)
• Ingress Protection: IP67
• Operating Temperature: -30°C to +55°C
• Dynamic Range: 120dB WDR

Tips

For optimal performance, install the camera at a height of 2.5–3 metres with the lens pointing slightly downward. Use a quality MicroSD card (Class 10 or above) for reliable local recording, and configure the Wi-Fi or PoE connection according to your network environment.
